To be honest, I'm just about ready to lock this thread after all the childish bickering thats been going on between a selected few people (they know who they are). I can't be bothered to waste my time babysitting the thread any more. 1 last chance.



[Christopher]

A3s, S3s, Golfs & TTs with Quattro / 4-Motion aren't AWD iirc, they're FWD with RWD kicking-in when the fronts lose traction.

A4s, A5s, A6s, A8s, Passats, 4x4s with Quattro / 4-Motion are AWD, although I'm not sure if it's 50/50 or 60/40 rear/front power distribution.

A3's, Golf's, S3's, TT's et al, all use the TorSen diff. Not true Quattro. You're right about the diff too, TorSen is not true AWD.

Passat 4-Motion also uses TorSen though, IIRC.

True Quattro's being A4/6/8's as well as the S and RS variants. Later RS variants can distribute 60/40 split, where as earlier models, B5 RS4, for example, use a more crude 50/50 torque split.



[172bagss2]

A3's, Golf's, S3's, TT's et al, all use the TorSen diff. Not true Quattro. You're right about the diff too, TorSen is not true AWD.

Passat 4-Motion also uses TorSen though, IIRC.

True Quattro's being A4/6/8's as well as the S and RS variants. Later RS variants can distribute 60/40 split, where as earlier models, B5 RS4, for example, use a more crude 50/50 torque split.

FAIL.

Passat 4Kevs use the same system as the A4/5/6... Fact.

AWD FTFW.

Please can you find me my split? Cheers!



[Christopher]

Agh! Damn you!

You going to Oulton on the 11th?



[Ryan k]

Agh! Damn you!

You going to Oulton on the 11th?

Whos that to lol and 11th this month?



[Gaz_]

A3's, Golf's, S3's, TT's et al, all use the TorSen diff. Not true Quattro. You're right about the diff too, TorSen is not true AWD.

Passat 4-Motion also uses TorSen though, IIRC.

True Quattro's being A4/6/8's as well as the S and RS variants. Later RS variants can distribute 60/40 split, where as earlier models, B5 RS4, for example, use a more crude 50/50 torque split.

You geek

Loves xXX



[Ryan k]

Has anyone go a QUAIFE ATB DIFFERENTIAL on there clio?? wondering what they are like are they worth it?



[mini-valver]

Thought you were having a 45k Sadev AWD amphibious conversion?



[sideways danny]

Has anyone go a QUAIFE ATB DIFFERENTIAL on there clio?? wondering what they are like are they worth it?

I dont "have" one, but i've driven turbo 182s with and without and it makes a very noticable difference



[Ryan k]

Thought you were having a 45k Sadev AWD amphibious conversion?

Choose against a sadev been told they cant Handel the toque.



[Ryan k]

I dont "have" one, but i've driven turbo 182s with and without and it makes a very noticable difference

Is it worth getting one do you think??



[RSTuning]

Get one



[Ryan k]

Get one

Well as you know this gearbox i have is slowly going so i think i might



[Ryan k]

Small update will get some pics up i got yesterday up tomorrow. Was going down the bypass yesterday afternoon then it started hissing. Next i looked and the boost pipe had come off the turbo:s fitted it back on and all is now ok. Other than that there has been no problems with the car at all since i last spoke. done 7000 since turbo was fitted and is doing great even the gear box has stopped acting up it changes gear loads better now.



[msm]

Thats awesome Ryan congrats on the project! How much have you spend on your clio for all the turbo setup?


Cheers



[Ryan k]

Thats awesome Ryan congrats on the project! How much have you spend on your clio for all the turbo setup?


Cheers

7000 without new engine



[LegoHead]

7000 without new engine

so what happened to doing it all for £3k like you told me.lol.



[Ryan k]

so what happened to doing it all for £3k like you told me.lol.

Eh never said 3k? 5 for all the bits and the rest on oil tools etc



[msm]

Cool!! Get more videos of that beast!!!



[Ryan k]

Cool!! Get more videos of that beast!!!

Need to get a day one with someone good at filming an editing



[ben_p]

Thought you were having a 45k Sadev AWD amphibious conversion?

FLOL FLOL FLOL FLOL



[Christopher]

LOL!



[ben_p]

one more LOL



[Waitey]

A3's, Golf's, S3's, TT's et al, all use the TorSen diff. Not true Quattro. You're right about the diff too, TorSen is not true AWD.

Passat 4-Motion also uses TorSen though, IIRC.

True Quattro's being A4/6/8's as well as the S and RS variants. Later RS variants can distribute 60/40 split, where as earlier models, B5 RS4, for example, use a more crude 50/50 torque split.

WFT they use Haldex.

Proper old skool Quattro used the TorSen centre diff. Stuff like S2's and the like moving through to the more modern stuff.

Its never FWD unless the Haldex Electronic Control Unit disengages the Haldex clutch in the centre coupling as soon as brakes are applied to allow ABS work properly. When performing tight low-speed turns (e.g. parking) the clutch is disengaged by Electronic Control Unit to avoid "wind-up" in transmission.

Under normal operating conditions, the Haldex LSC clutch operates at 5% (divide 5% between front and rear, and 97.5% torque goes to the front, and 2.5% goes to the rear). Under adverse conditions where both front wheels lose traction (hard accel, tight fast turns and quick changes in direction), the Haldex clutch can lock at up to 100% clamping force untill traction is resumed. This means, that since there is no torque tranferred to the front axle, all torque (minus losses) must be transferred to the rear axle in the event of 100% locking. The torque split between left and right wheels is achieved with a conventional open differential. If one side of the driven axle loses grip, then the Electronic Differential Lock (EDL) controls this. EDL brakes a single spinning wheel, therefore torque gets transferred to the opposite wheel via the open differential. On all transverse engine cars with the Haldex Traction LSC four-wheel drive system, the EDL only controls front wheels, and not the rear.

The Haldex Traction system is more reactive than preventative, in that the front axle must lose traction and start to spin before the Haldex operates and sends torque to the rear axle. The Torsen's permanent 'full-time' even torque split under non-slipping conditions makes slipping less likely to start.



[Christopher]

FFS...meant Haldex.

Haldex: Fakey Quattro
TorSen diff on the proper stuff.

Hendo would string me up if he read that.



[Waitey]

lol

Hendo's death list..... you are on it.

One good thing about haldex is if you f**k about enough it gives you RWD!



[Ryan k]

Best one i can find thats cheap but holds out is the standard one. Its still ok with over 300 lb/ft of torque. If it did go wrong it would take alot of boxes for it to be worth getting a better one.



[Ryan k]

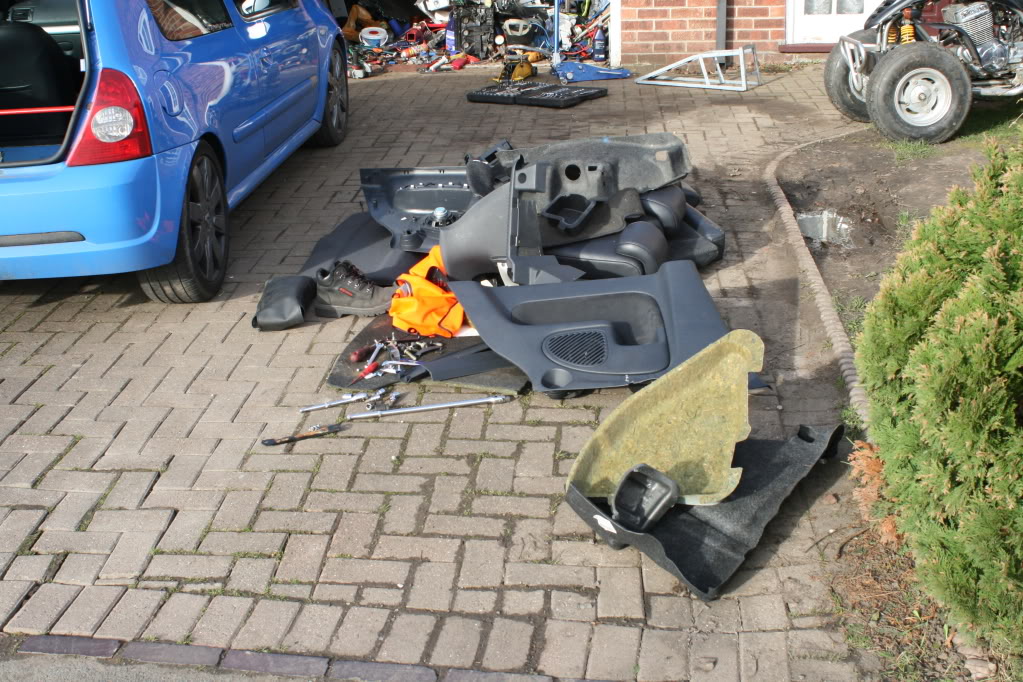

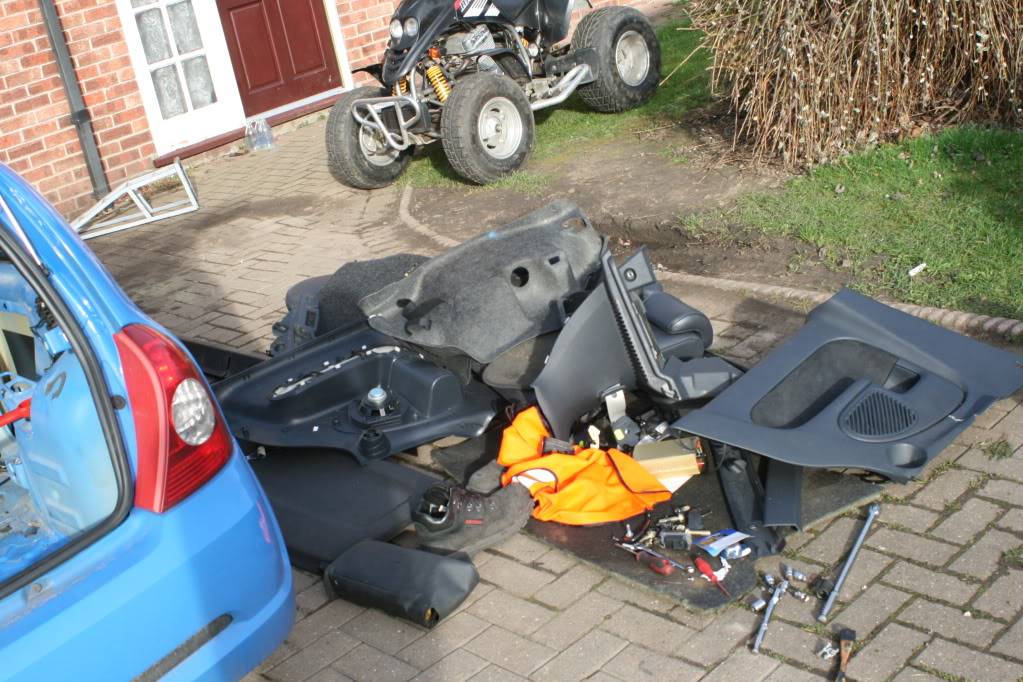

Been up to abit of a change today

After a clean

And some new rear brakes



[Gray]

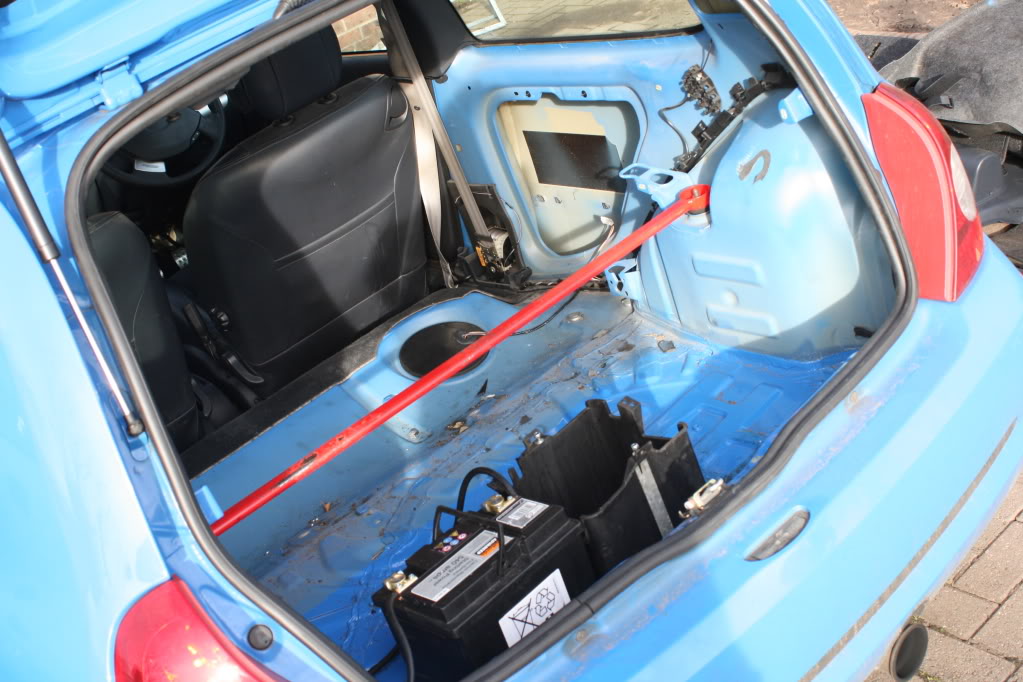

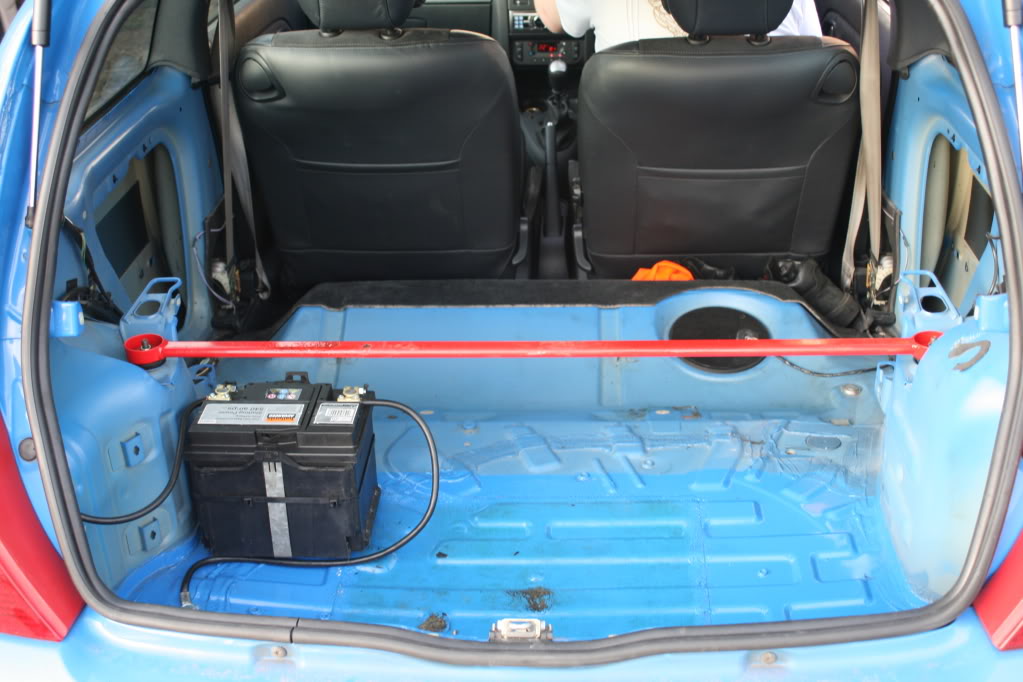

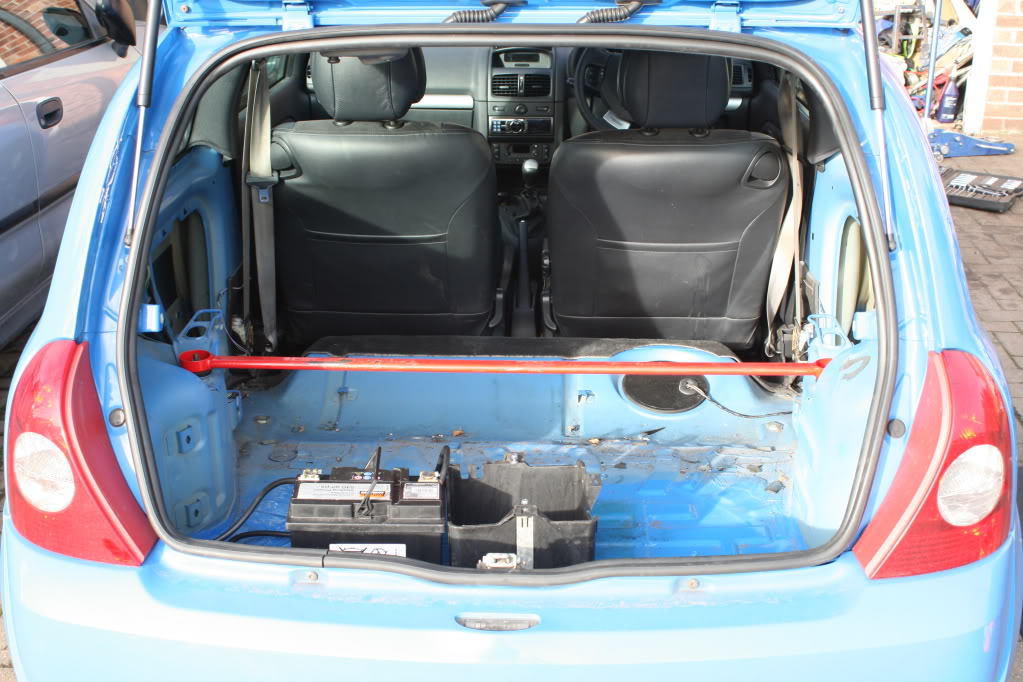

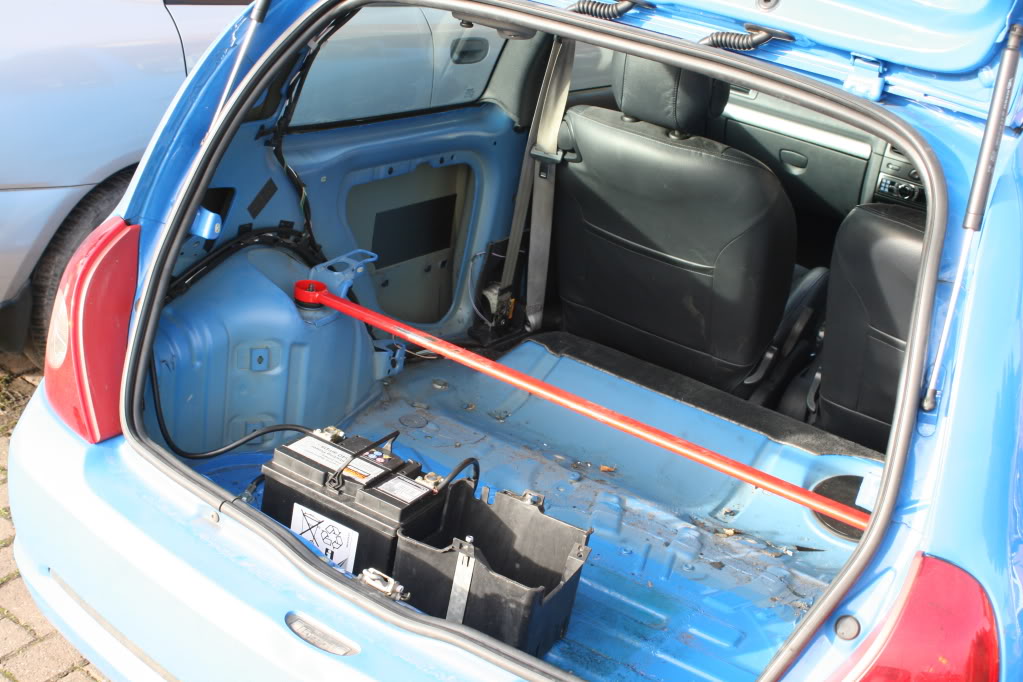

Your rear strut brace is upside down



[Ryan k]

Your rear strut brace is upside down

The OMP sticker is on top lol.



[stevo172-RWD]

How's it running now?



[Ryan k]

How's it running now?

Amazing nothing wrong with it at all well there is a small boost leak but i cant find where its coming from. Its only losing me 15 bhp lol. Benn worth every penny.



[stevo172-RWD]

Good work chap



[Christopher]

Buckets next!



[Ryan k]

Buckets next!

Dunno about that i might do. Dont like them that much



[Guppy]

What cable you running the battery with fella?



[sideways danny]

The OMP sticker is on top lol.

Gray is right, the brace is fitted wrong, and will do even less like that than they normally do (2 tenths of f**k all)



[Ryan k]

Gray is right, the brace is fitted wrong, and will do even less like that than they normally do (2 tenths of f**k all)

I got it free and i dint fit it lol will change it tomorrow



[172Ben]

Looking good mate.

Spray the brace a different colour though!



[Ryan k]

What cable you running the battery with fella?

170amp battery cable from a motor factors or somewhere smiler
