    I have a large update to come, but I will start by saying I lost a lot of enthusiasm for this thread as when I bought a new Mac, I removed all of my files from my phone and Idevices and put them on the Mac, a week into Mac ownership the catching went corrupt!

    This meant I lost A LOT of progress photos and I got rather disheartened!

    But fear not! We are a small step closer to a track day!

    I'll update this thread over the next couple of days, but I'll leave you with this sneak peak


    Thanks
    20vKarlos

    -----
    ---
    -​

    SharkyUK, jamesycc, AdamCup and 2 others like this.
  5. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172

    -
    ---
    -----

    September 2017 Update


    Hey guys,
    I’ll try and keep this as brief as possible...
    I’ll do a few separate updates with more elaboration but for now, heres just a list of stuff!:grinning:


    So, Whats been done?
    Exterior


    Removed 172 wheels
    Removed rear wiper

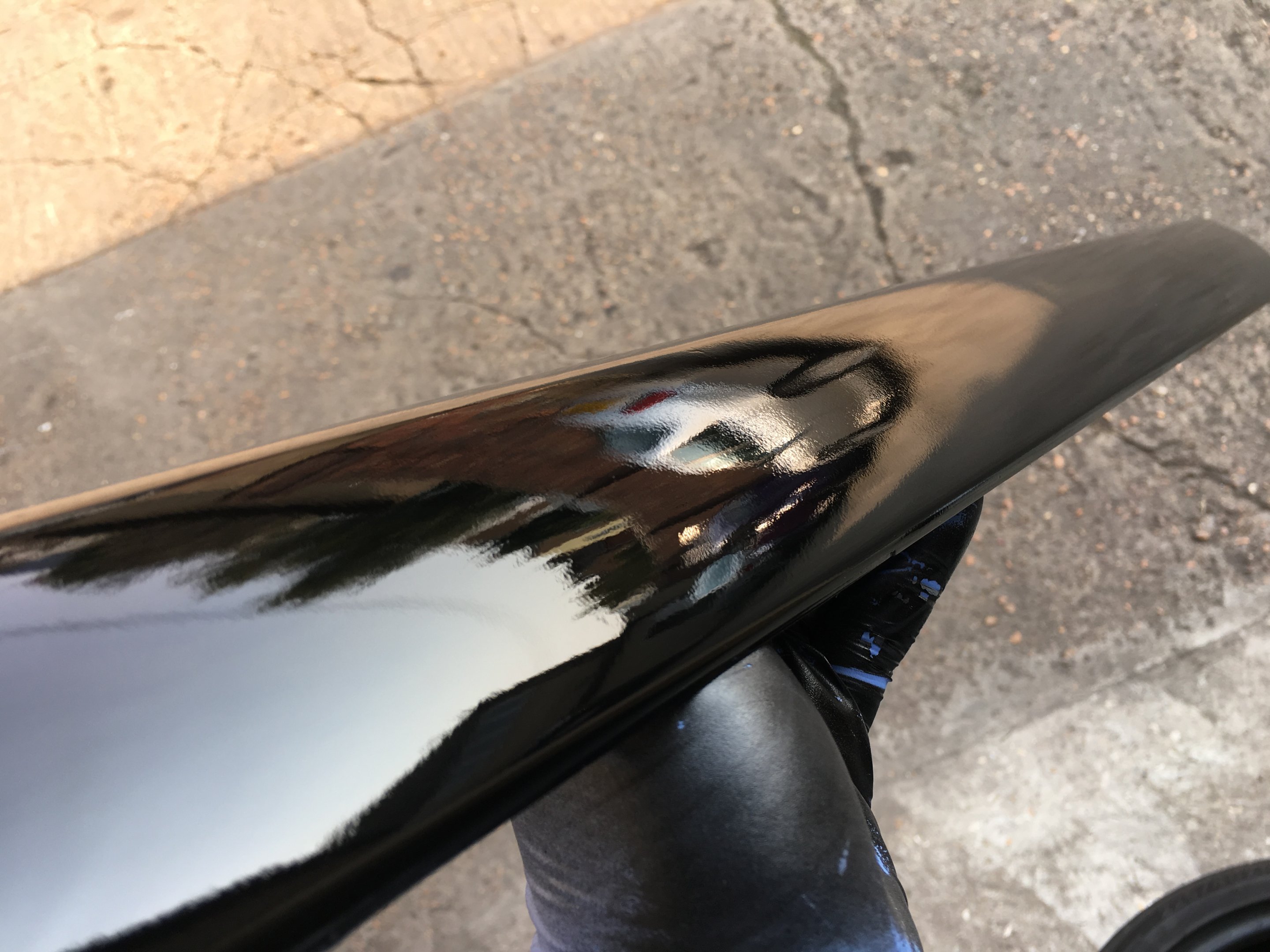

    Removed spoiler, cleaned and refitted

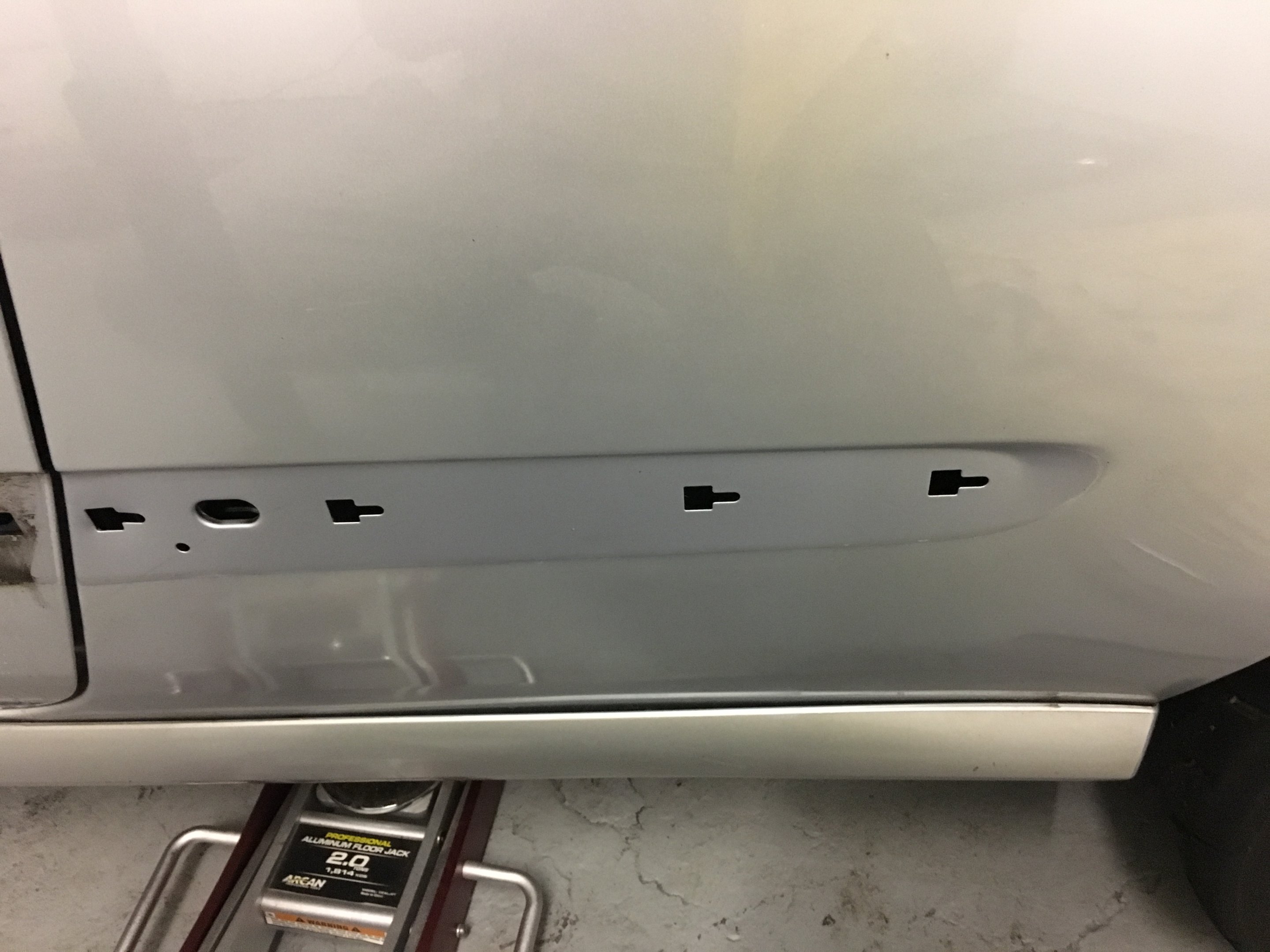

    Removed side trims (ready for paint)

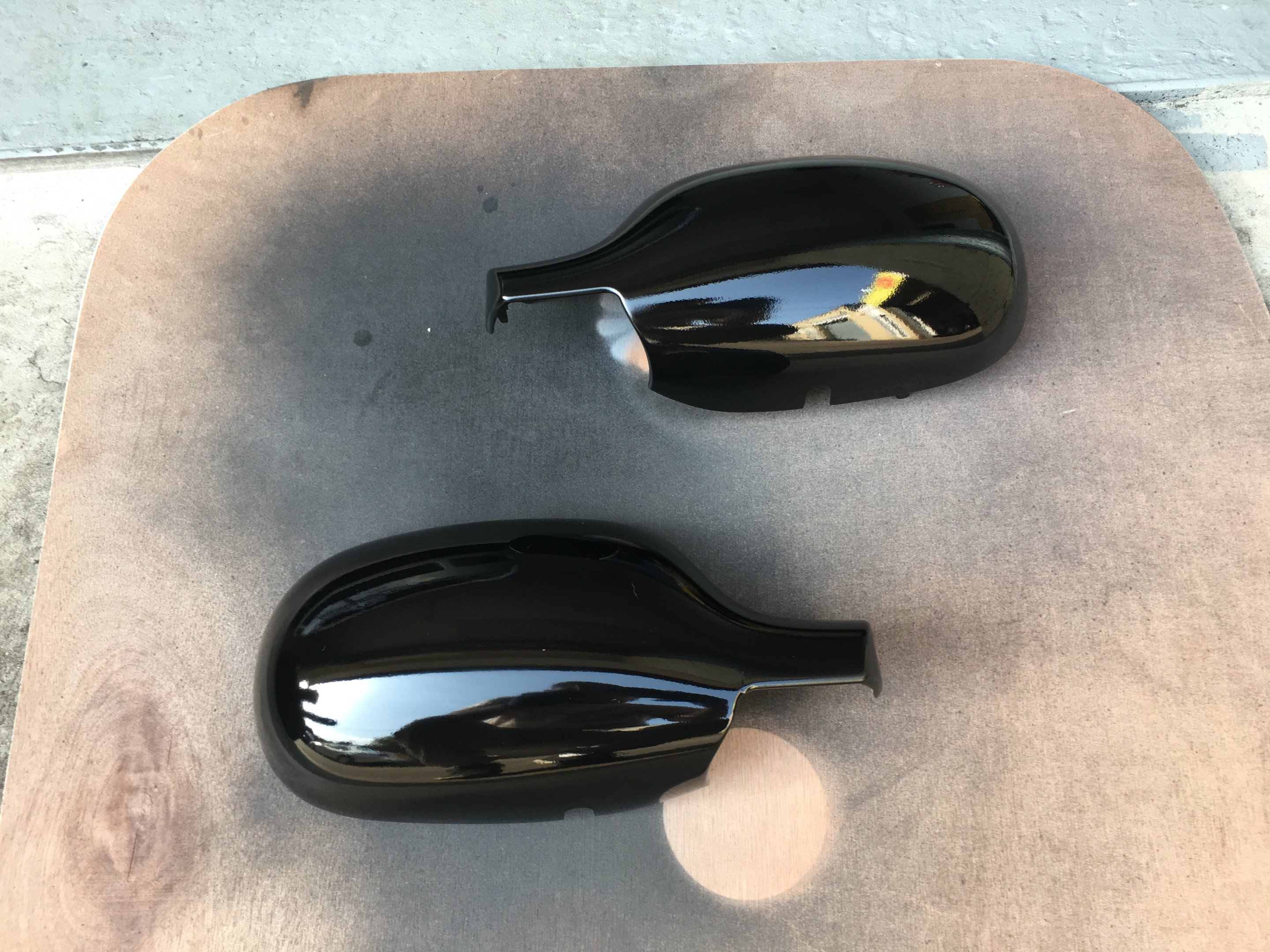

    Removed wing mirror caps (ready for paint)
    Removed arch liners
    Fitted front discs & pads
    Fitted rear discs & pads
    Fitted front braided lines
    Fitted brake ducts
    CV boot fitted
    Stud conversion kit fitted
    Fitted replacement washer bottle
    Fitted wiper arms/Motor
    Fitted Scuttle Panel
    Fitted Wipers

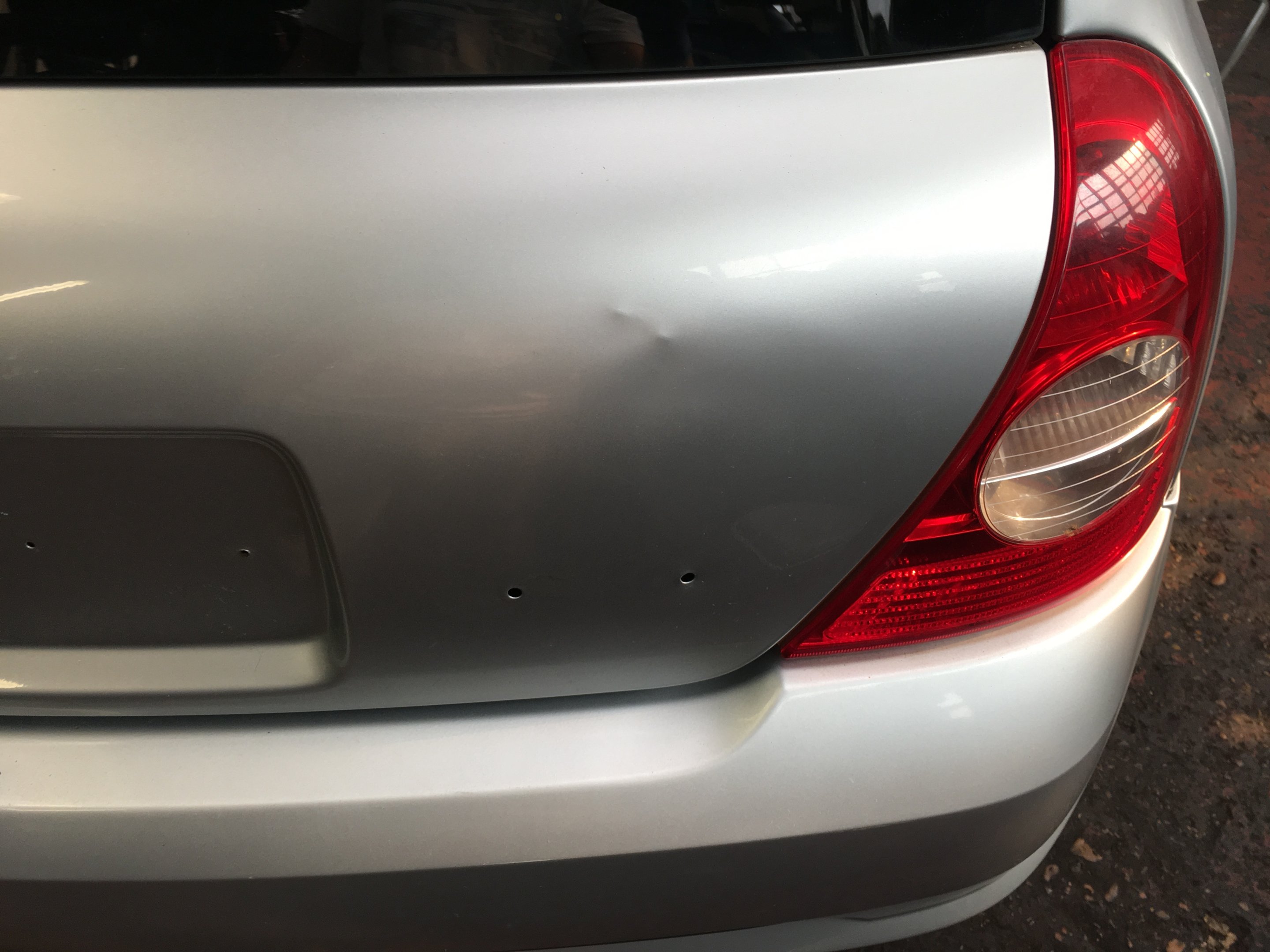

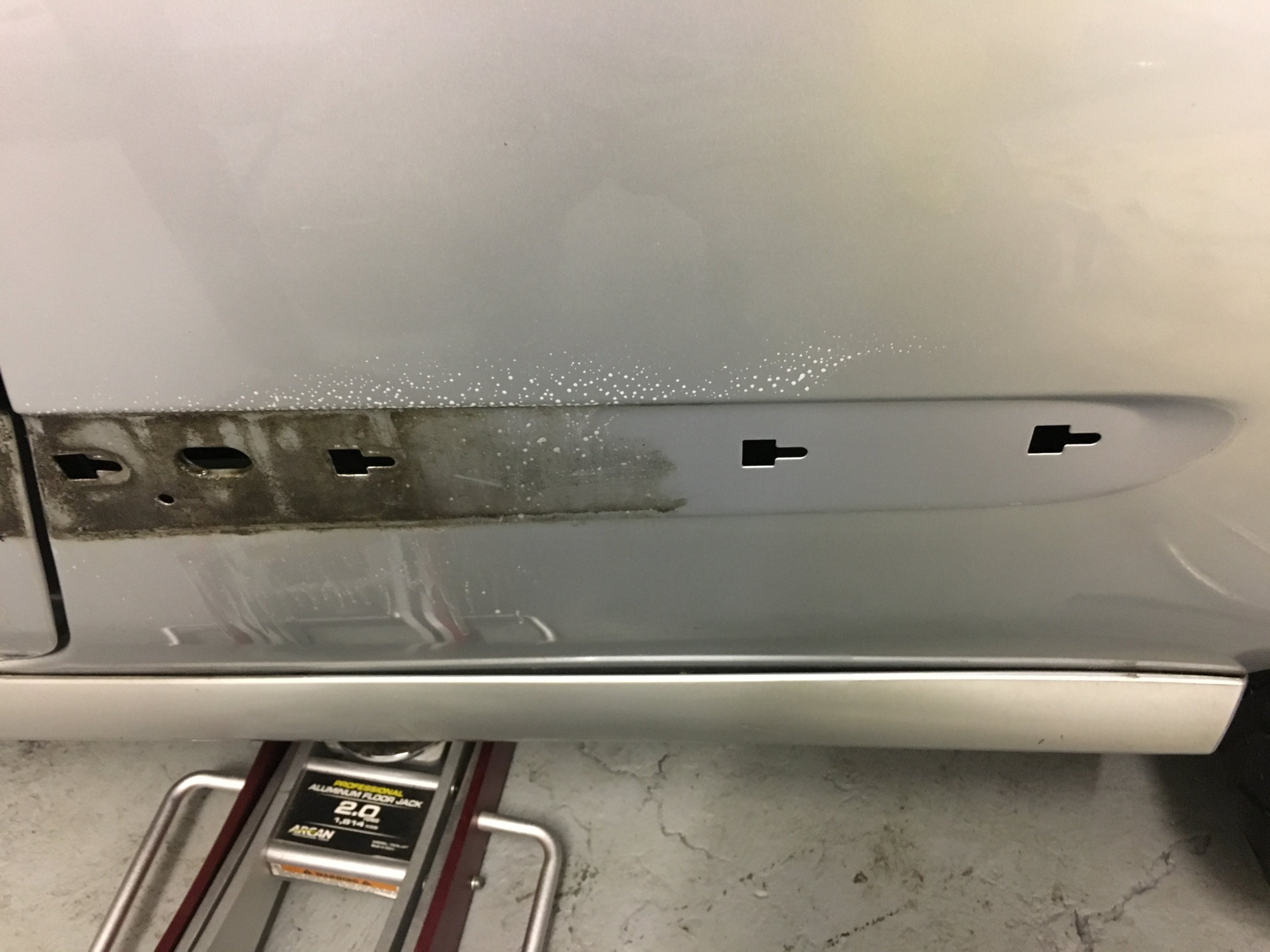

    Since the car has been up on stands, all sorts of items have knocked into it,
    so its gained some garage war wounds along the way.
    I’m not fussed about them at all, but I may wrap parts of the car at some point, we’ll see!


    Interior

    Removed remaining tar and adhesive with Jelsol (Honestly, go buy this product!)
    Drilled a hole for a harness eye bolt
    Fitted all harness eye bolts
    Vacuumed everywhere
    Wiped out interior
    Fitted JonFoz seat mounts
    Fitted drivers seat with runner (Various drivers)
    Fitted passenger seat without runner
    Fitted harnesses (need adjusting)
    Fitted OMP boss kit
    Fitted OMP Steering wheel


    Before it can see the track I MUST do the following
    So, Whats left to do?

    Fit rear braided lines
    Brake Fluid
    Bleed brakes
    Fit wheels
    Fit tow straps
    Fit dog bone mount
    Fit breather on the fuel tank
    Fit headlight washer blanks
    Fit bumper
    Tidy wiring
    Mount Heater controls (Somehow??)
    Fit Whiteline RARB (not essential)
    Check every nut & bolt
    Send it to the mechanic next door for a good check over


    Then…. What I’d like to do

    Coilovers
    Polybush everything
    Fibreglass bonnet
    Fibreglass Boot
    Fibreglass Doors
    Roll cage (will come, but in time)
    PMS shifter
    PMS camber bolts
    PMS A/C delete
    Polycarbonate windows
    Second set of wheels
    Headlight blanks
    Potentially wrap some parts in lairy colours


    There are probably more things I need to add to those lists,
    things that I've forgotten about and things that will still need doing.
    The project has taken a fair while to get to this point but I've learnt loads along the way

    I'll have some more time on the car over the winter months as I'm not as busy at work now.
    I've also recently started to work days again which means sociable hours!



    I need you all to think of a funny HASHTAG.. something unique to the car.
    something that'll stand out and I'll get it printed and stuck on the car…
    This will be the cars “Name” and how people find it on social media if they want to!
    Just to clarify, this is just for a laugh, so don't think I'm social media crazy or fishing for the likes :tearsofjoy:
    #ProjectShitbox & #ProjectFrenchie
    Something like this but I think they're used too often...
    Something funny, and I don't mind a bit of profanity but keep it quite clean as I've got children

    I'll catch up with the updates over the coming weeks

    Thanks again all

    20vKarlos

    -----
    ---
    -

    SharkyUK and gambit like this.
  6. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    -
    ---
    -----

    So the first detailed update

    Brake Ducts

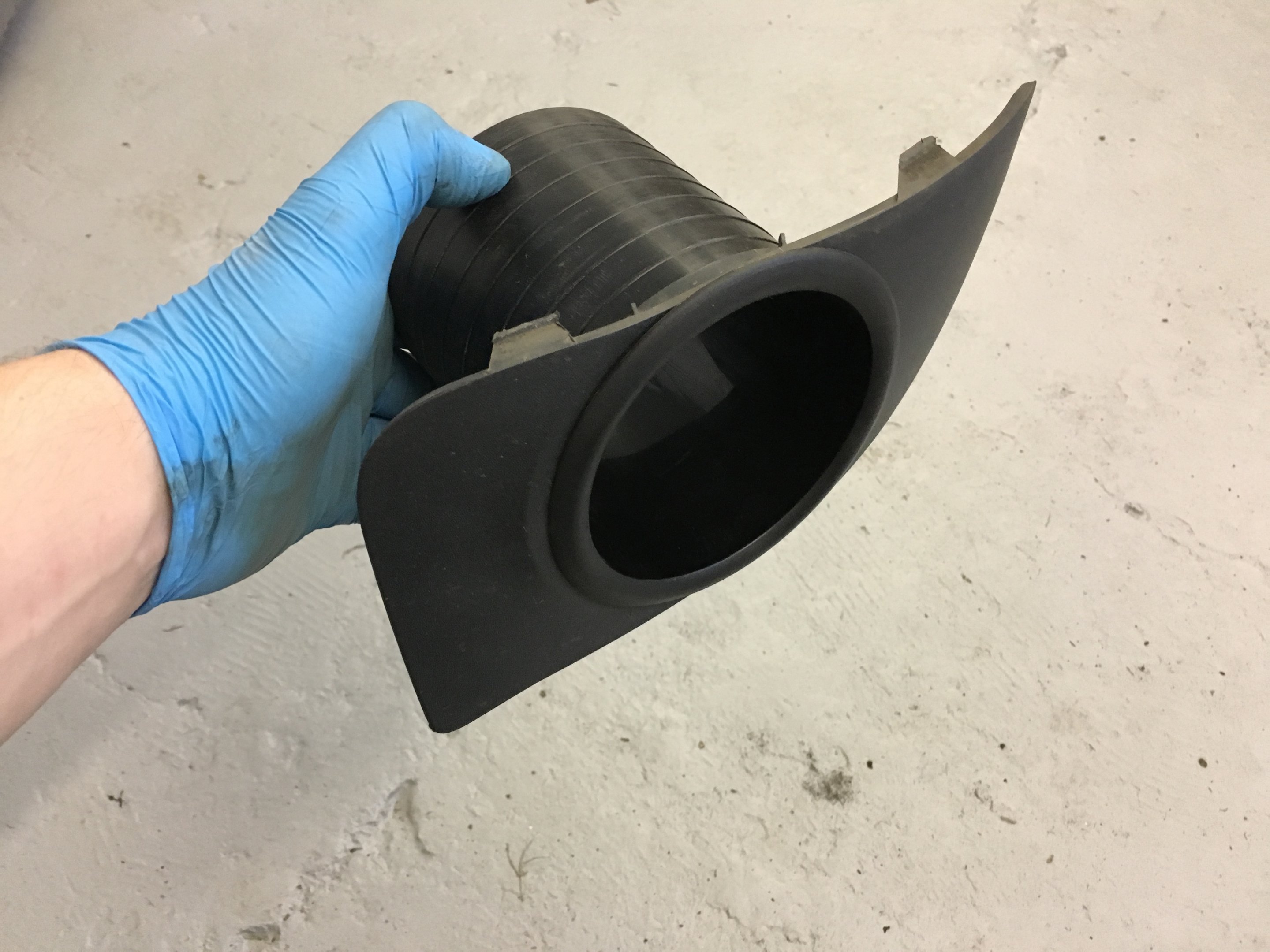

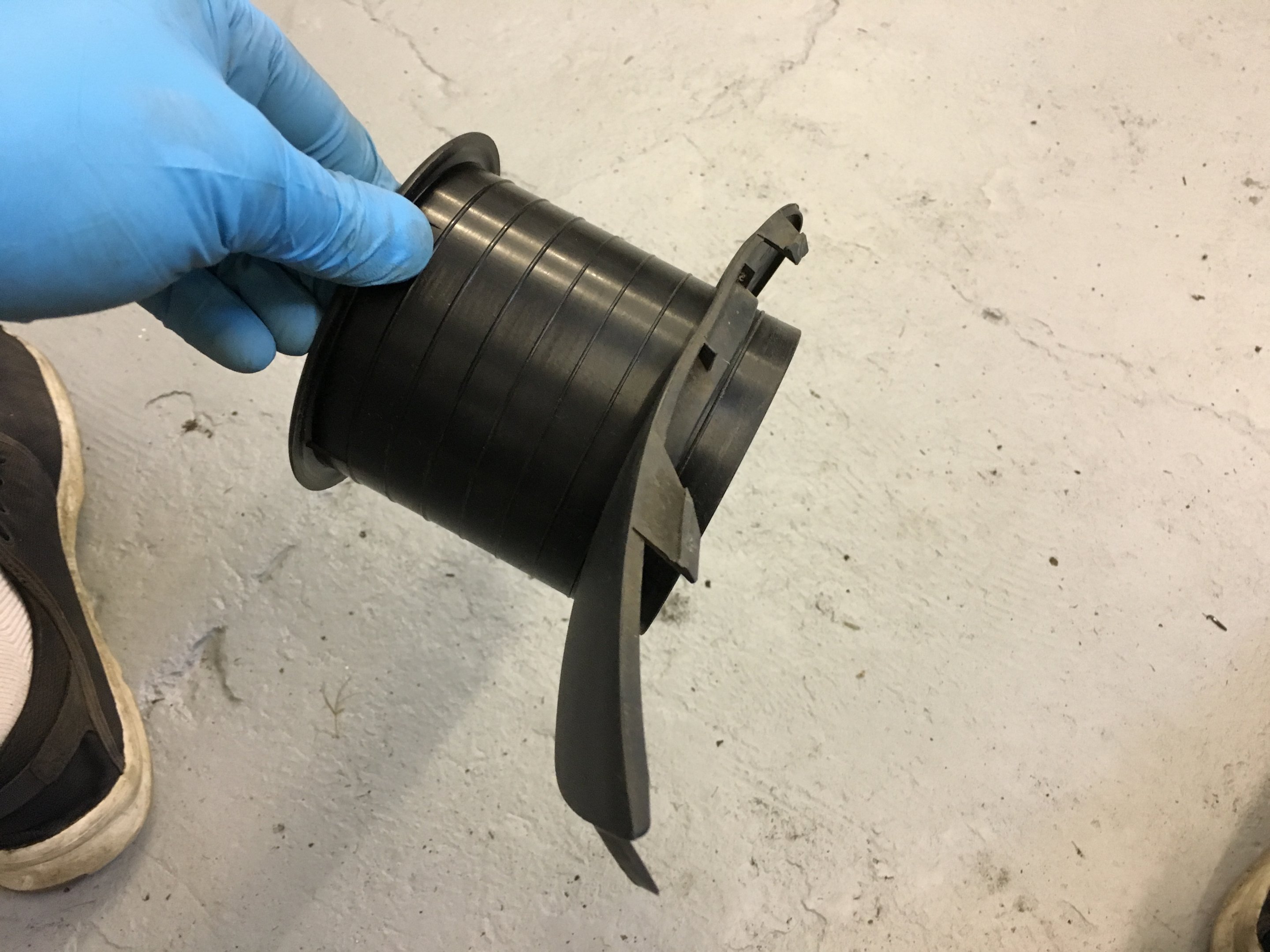

    I bought a cheap set of ducts on eBay that came with pipe work.
    After getting the fog light covers off the car, I quickly realised it was going to be a tight fit!
    So I got the heat gun out and used that to soften both parts.
    After a bit of messing about, I'd managed to get it on slightly.




    Once I'd got to this stage, it was easy to get the remainder pushed into place



    Then came what I thought would be the easy bit... just put it in place Karlos, job done! ERM NO:laughing:
    Good job I had that heat gun out! :tearsofjoy:

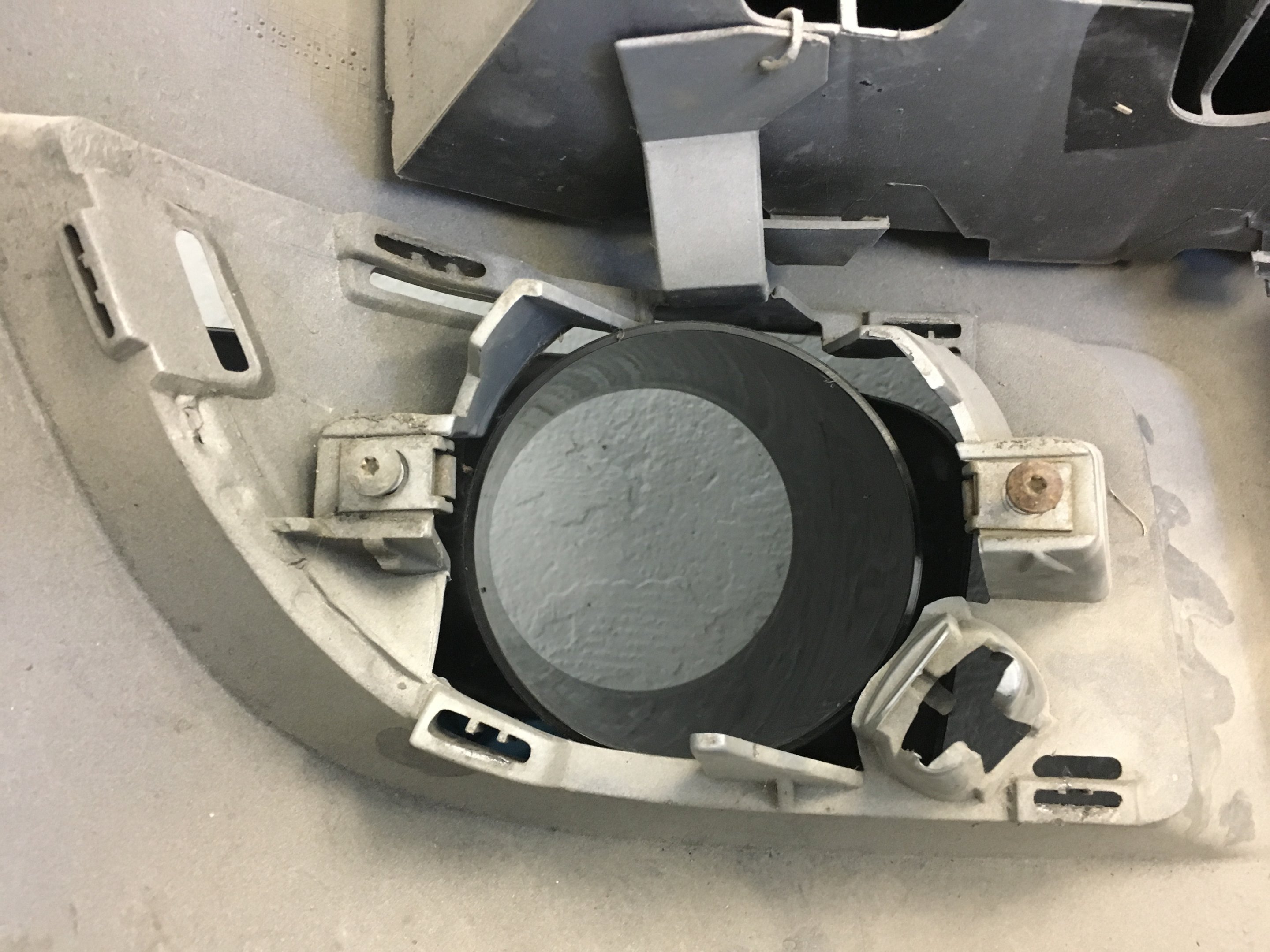

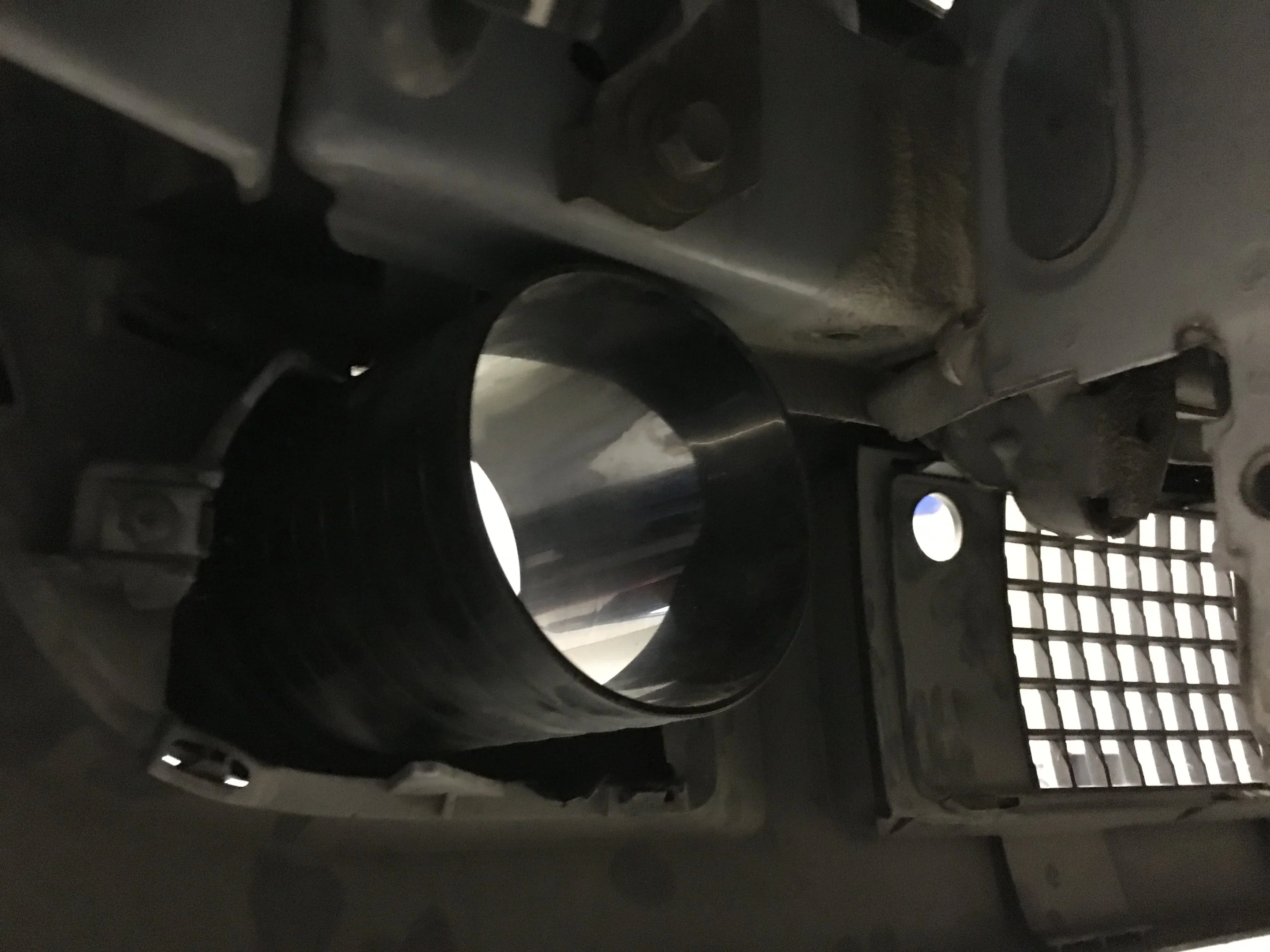

    So it turns out that the ducts would foul on pretty much every bracket, so I had two options
    - Either cut out the offending brackets
    - buy a more expensive kit that would fit perfectly

    Yeah... so I went with the 'chop stuff up' option! :monkey::sweatsmile:

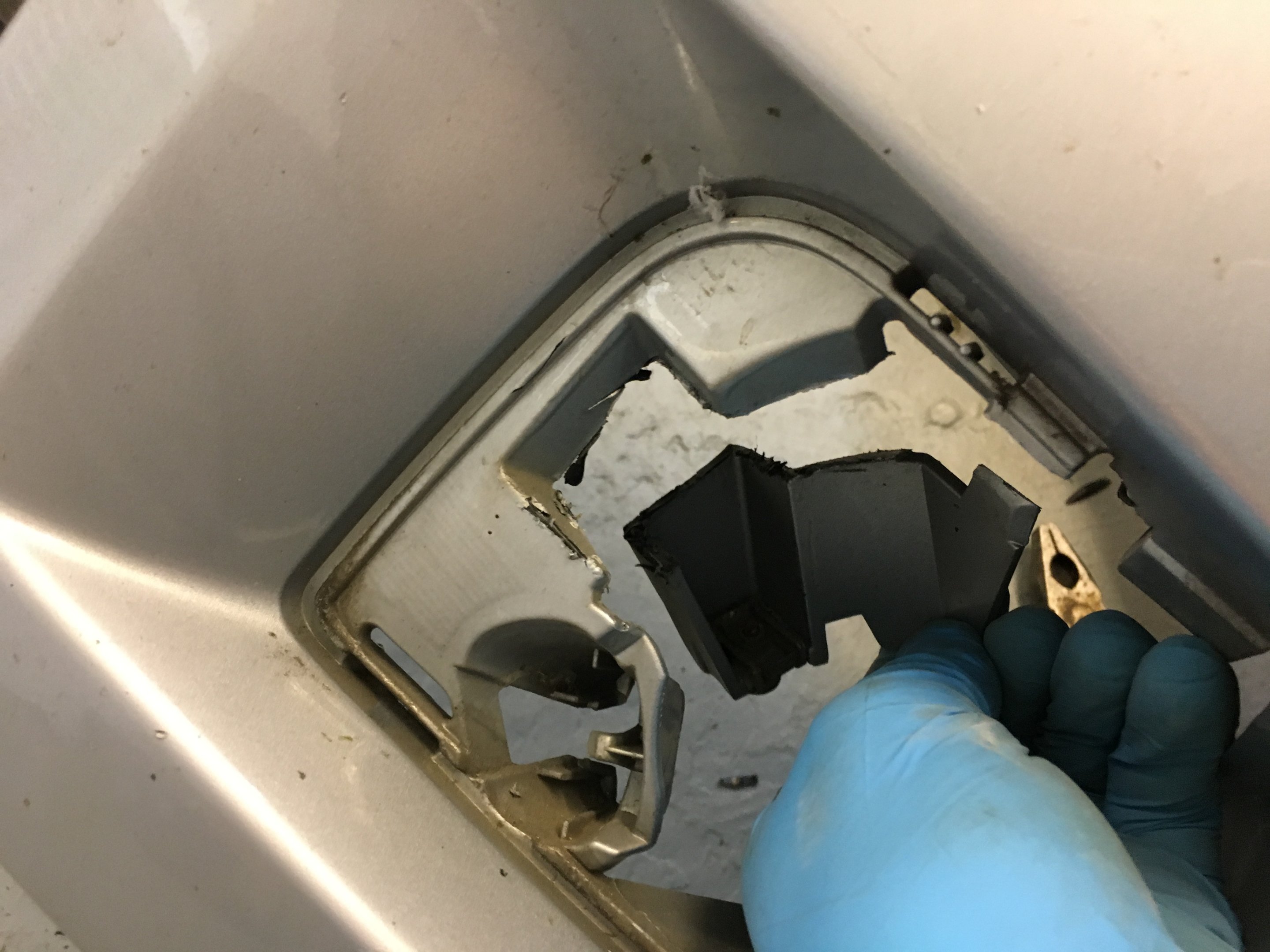

    Taking pieces out

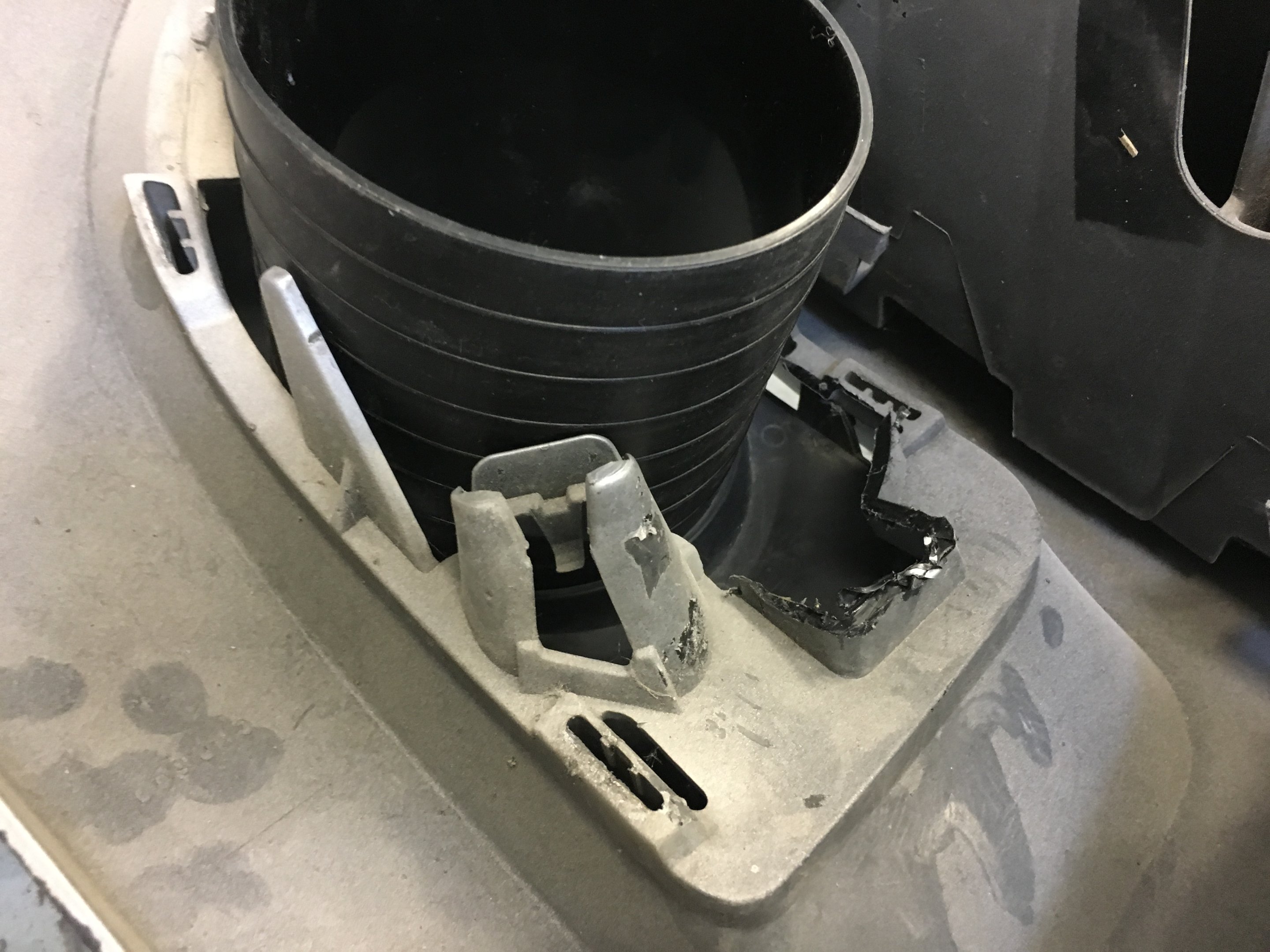

    So here it looks like I've removed too much of the bracket.
    For me to get the duct in place it had to go in on an angle, so this is why more cutting was involved.

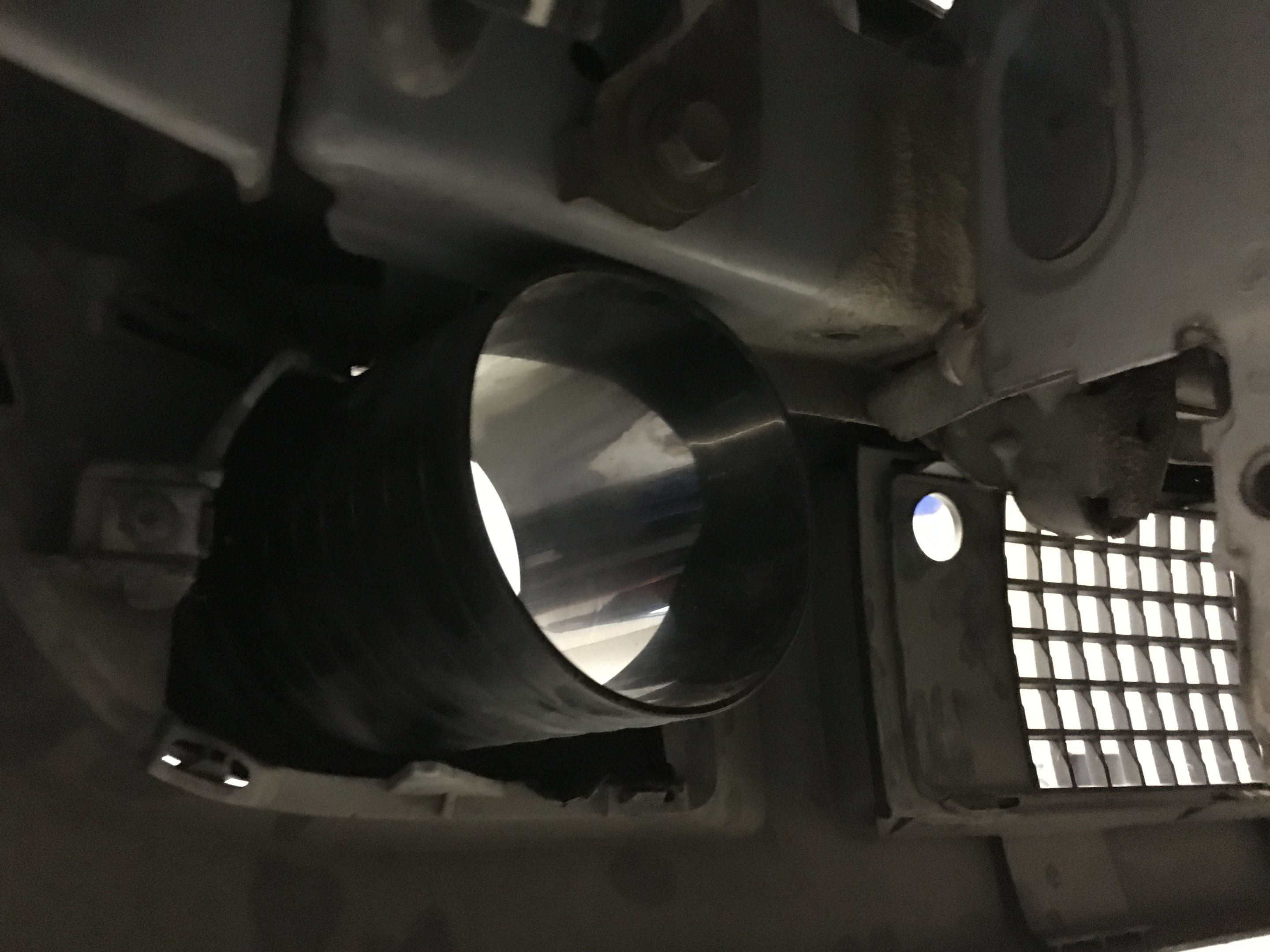

    Below you can see that with the bumper refitted to the car, it was a very tight fit on the chassis.
    Not a bother though as the bumper will be on quick release buttons
    This will mean the ducts will go on Nd off with the bumper.


    Would I do it again... YES!
    Even though there was a fair amount of work I didn't realise needed doing, it was quite fun:up:

    That's all for the brake duct update
    Any questions, please fire away

    Thanks

    20vKarlos

    -----
    ---
    -​

  7. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    -
    ---
    -----

    Interior

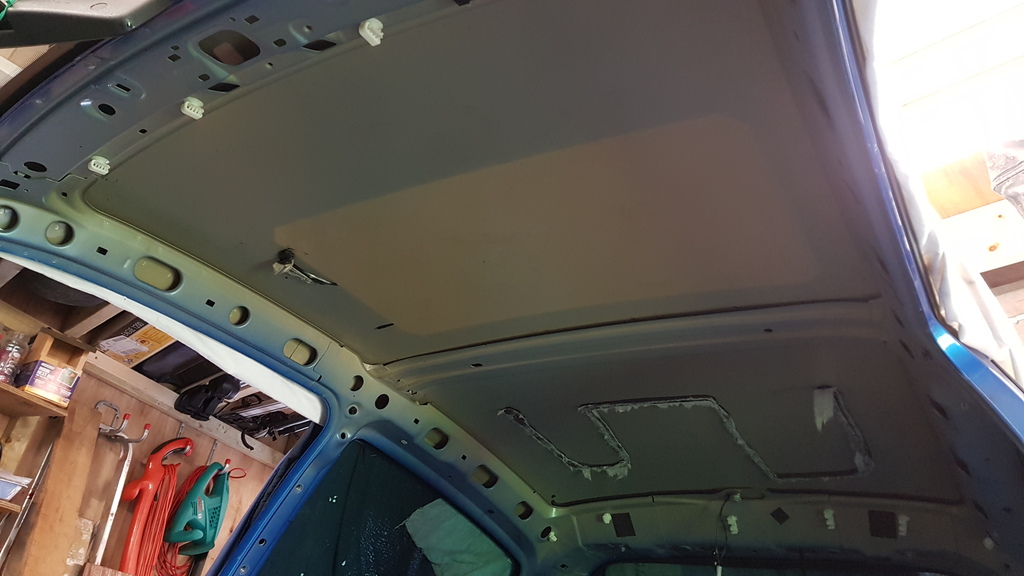

    So, as many of you are aware from previous updates, I'd completely stripped the interior.
    However, I had a fair amount of work left to do before I could fit the seats.

    First step was to use Gelsol on the remainder of any adhesive inside the car.
    Next was to give the interior a vacuum and then a thorough clean after the chemicals used so far.

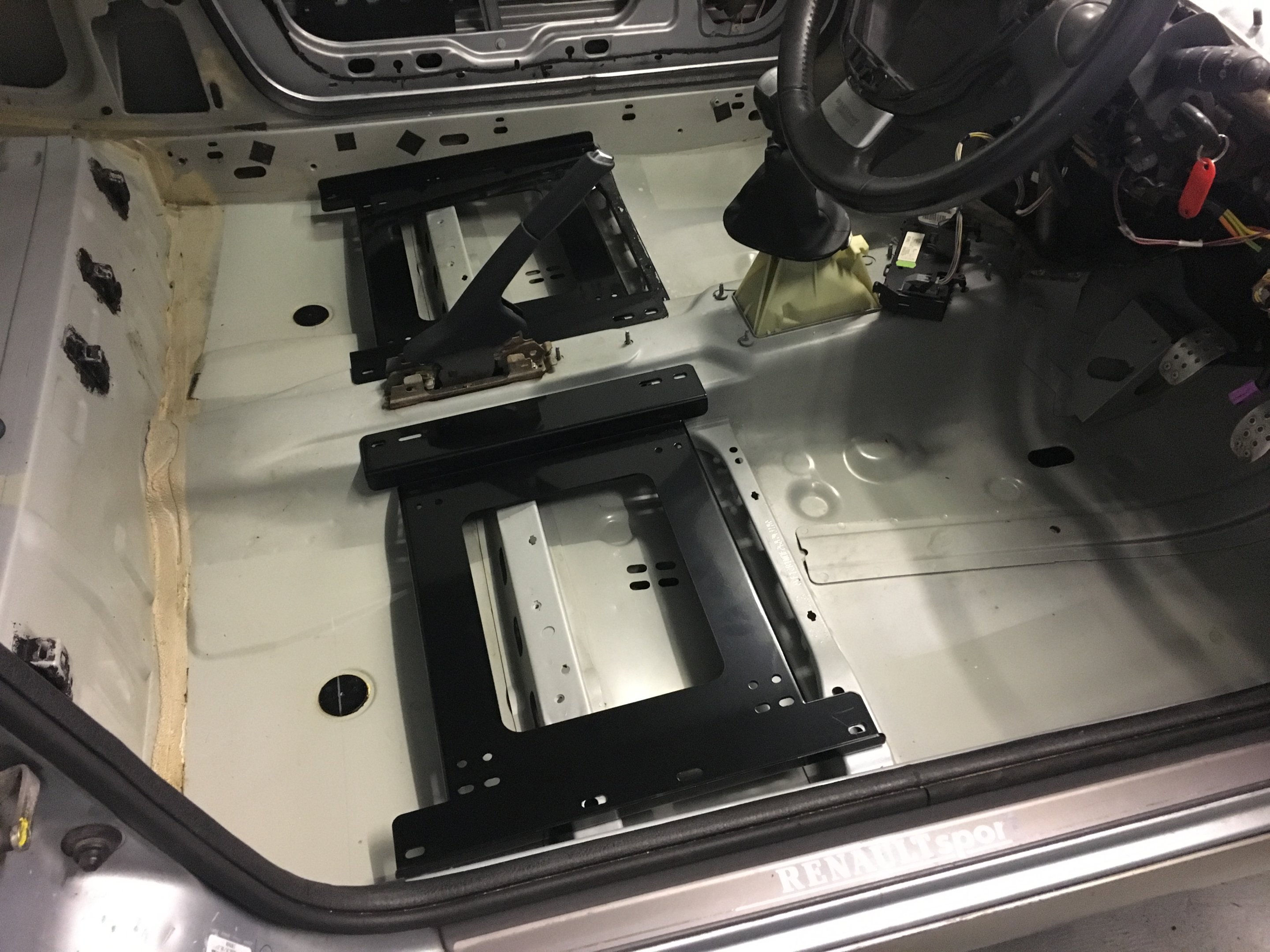

    With this done I was able to get the @JON FOZ lower seat frames in:up:

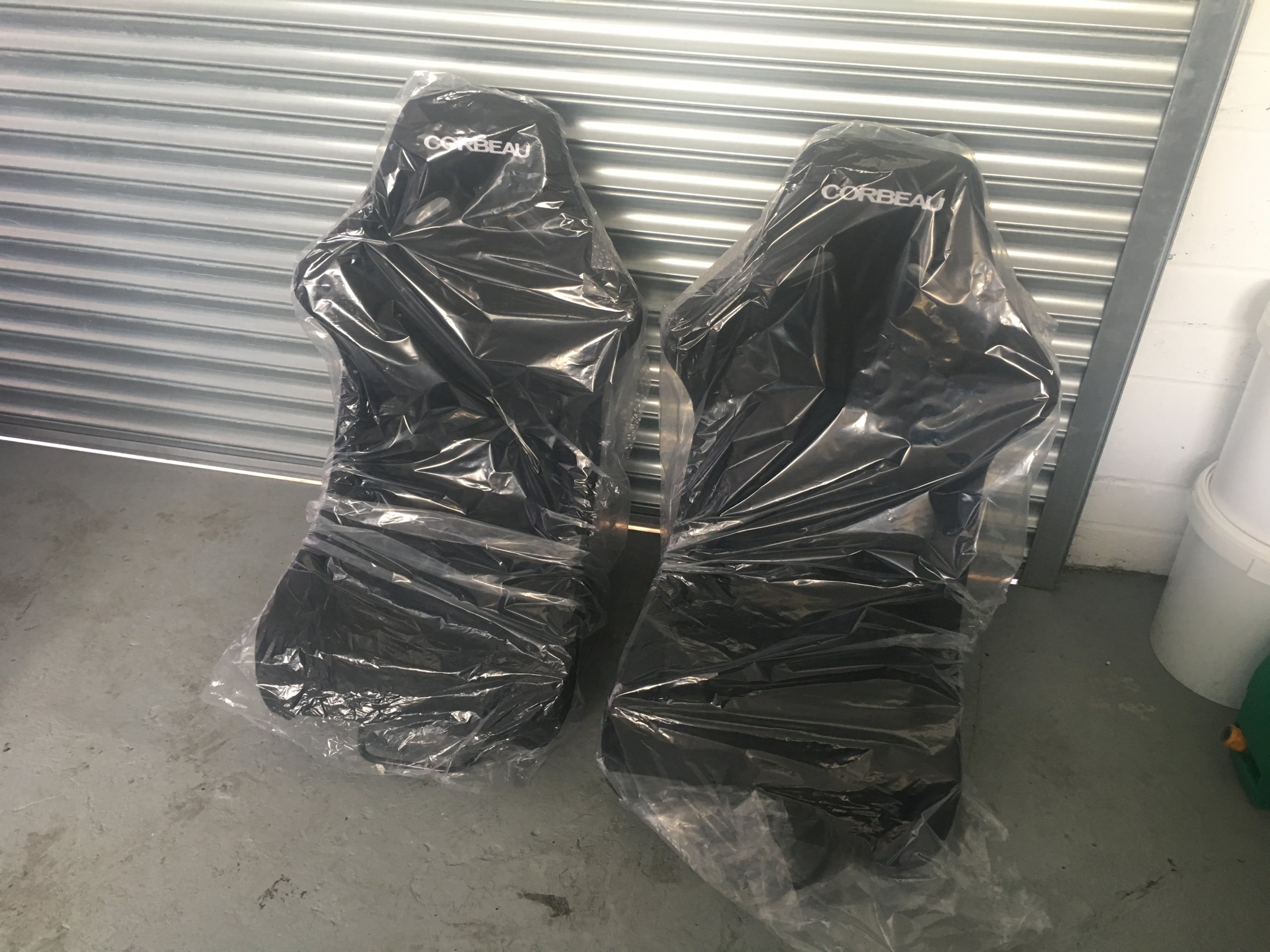

    The seats as they arrived
    Corbeau Clubsports with runners and mounts
    Note to all when buying these seats, they don't come with a fitting kit.
    That wasn't much of a problem though as I'd bought nuts and bolts for the FOZ Frames.


    So with the the interior all tidied I got really itchy feet for fitting the steering wheel

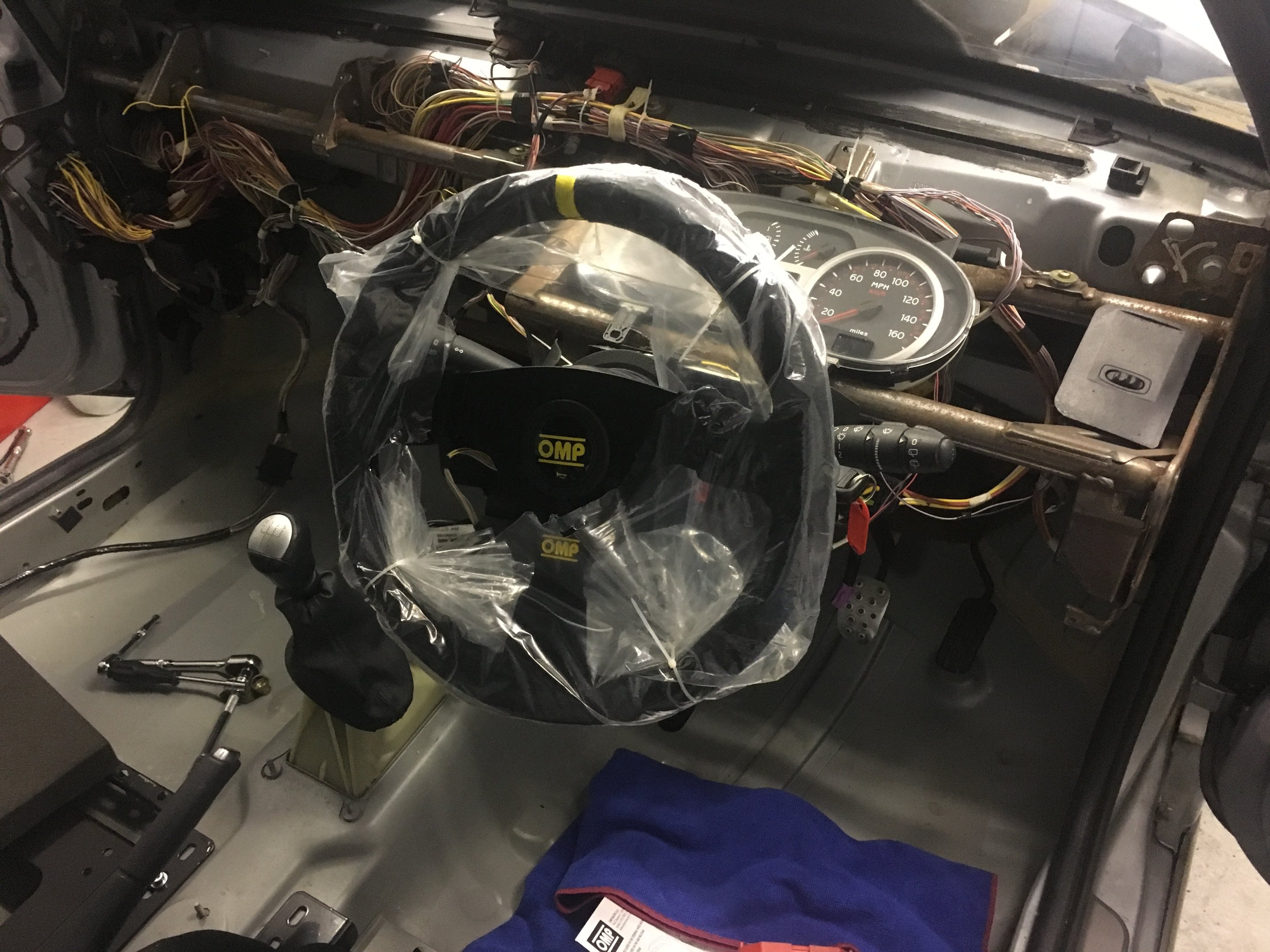

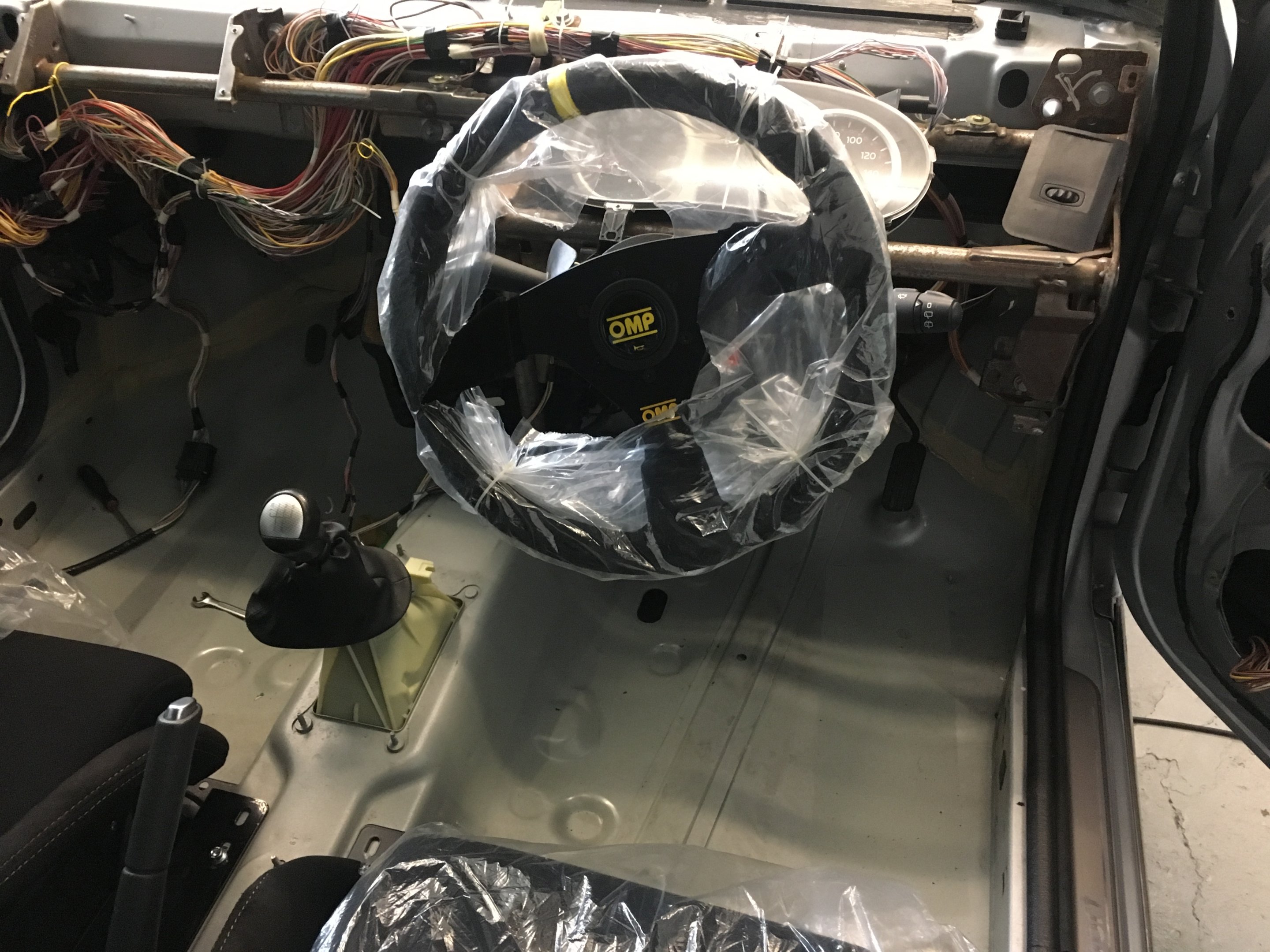

    OMP Targa 330mm Suede :smile:

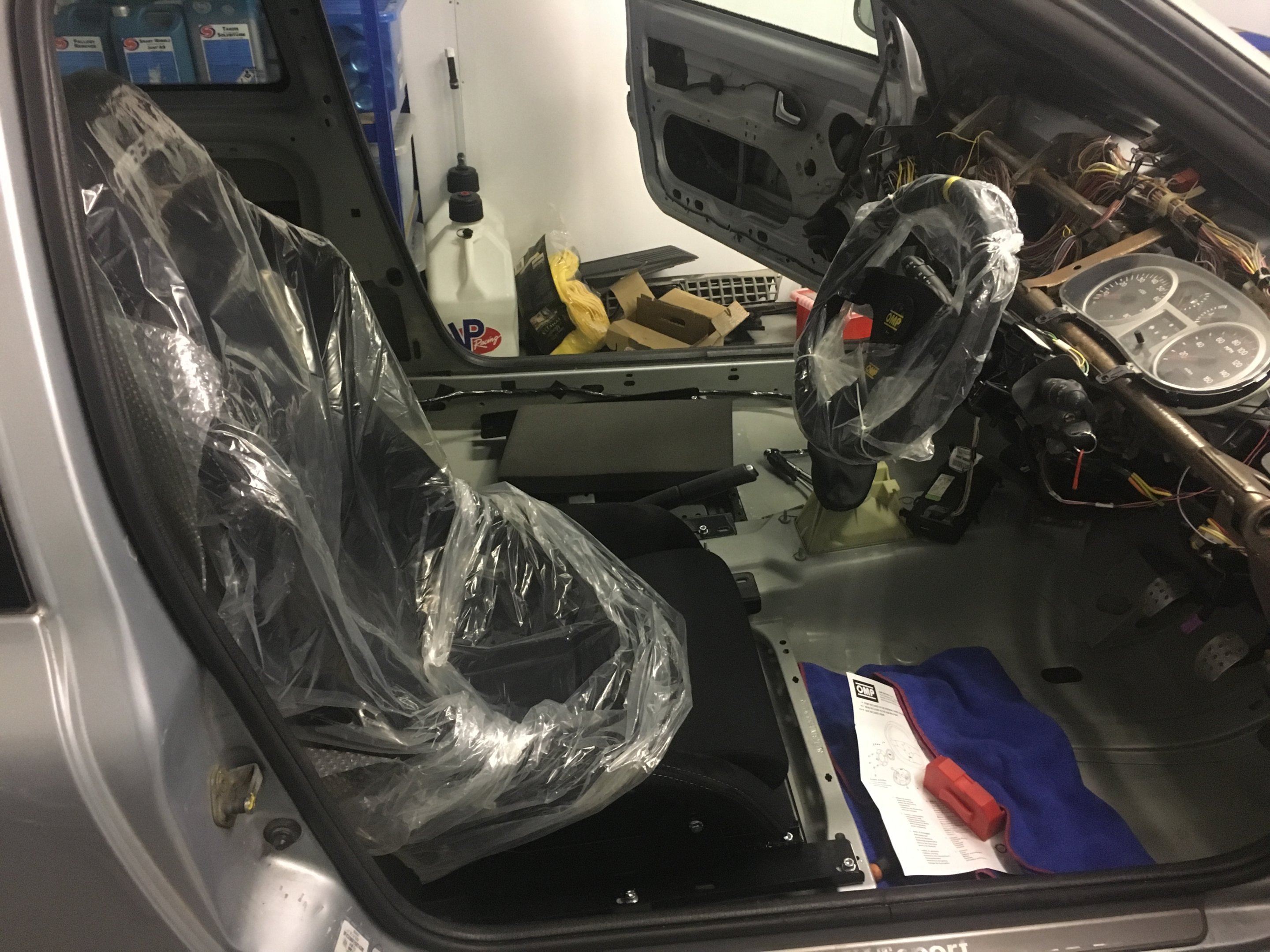

    I then got the seats mounted in place...
    Admittedly I did this prematurely.
    However, I was too excited to see how it all felt to sit in the seats, so did it anyway.:tearsofjoy:

    Once mounted I quickly realised that something was wrong.
    When I'd sat in the car, I felt like I was sat too far to the right and not central to the steering wheel.
    I posted a message in the @JON FOZ group buy thread and the man himself quickly had a reply for me.
    He was also very helpful with suggestions but it was my own fault,
    I hadn't adjusted the seat on its Corbeau frames!
    Once I'd moved the drivers seat over as far as it would go, I was sat in a much better position.




    Once the seats were in and I was happy with their positions, I moved onto the harnesses.

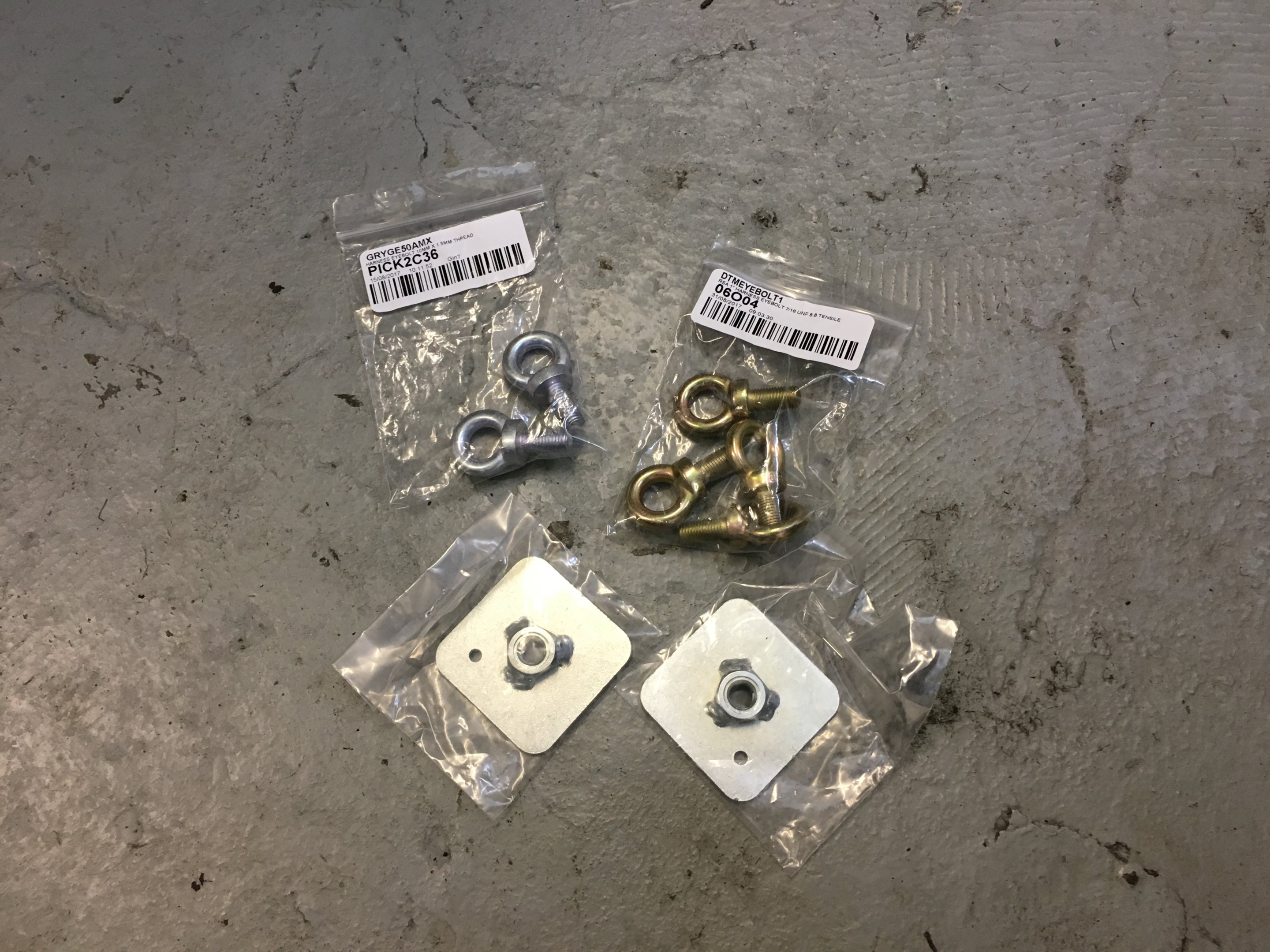

    The harness eye bolts that came with the harnesses did not fit in all of the pre-existing seatbelt anchor points,
    So I had to source a few more.
    The eagle eyed amongst you will realise that the gold bolts are the same as the ones supplied with the harnesses.
    I'd had no idea what size & thread the bolts I already had with the harnesses were,
    plus I only needed one bolt & plate and another 2 bolts, one for each B pillar.

    Anyway, so after I'd worked out what size all the bolts were and what their thread type was, I got the the fitting part :tearsofjoy:

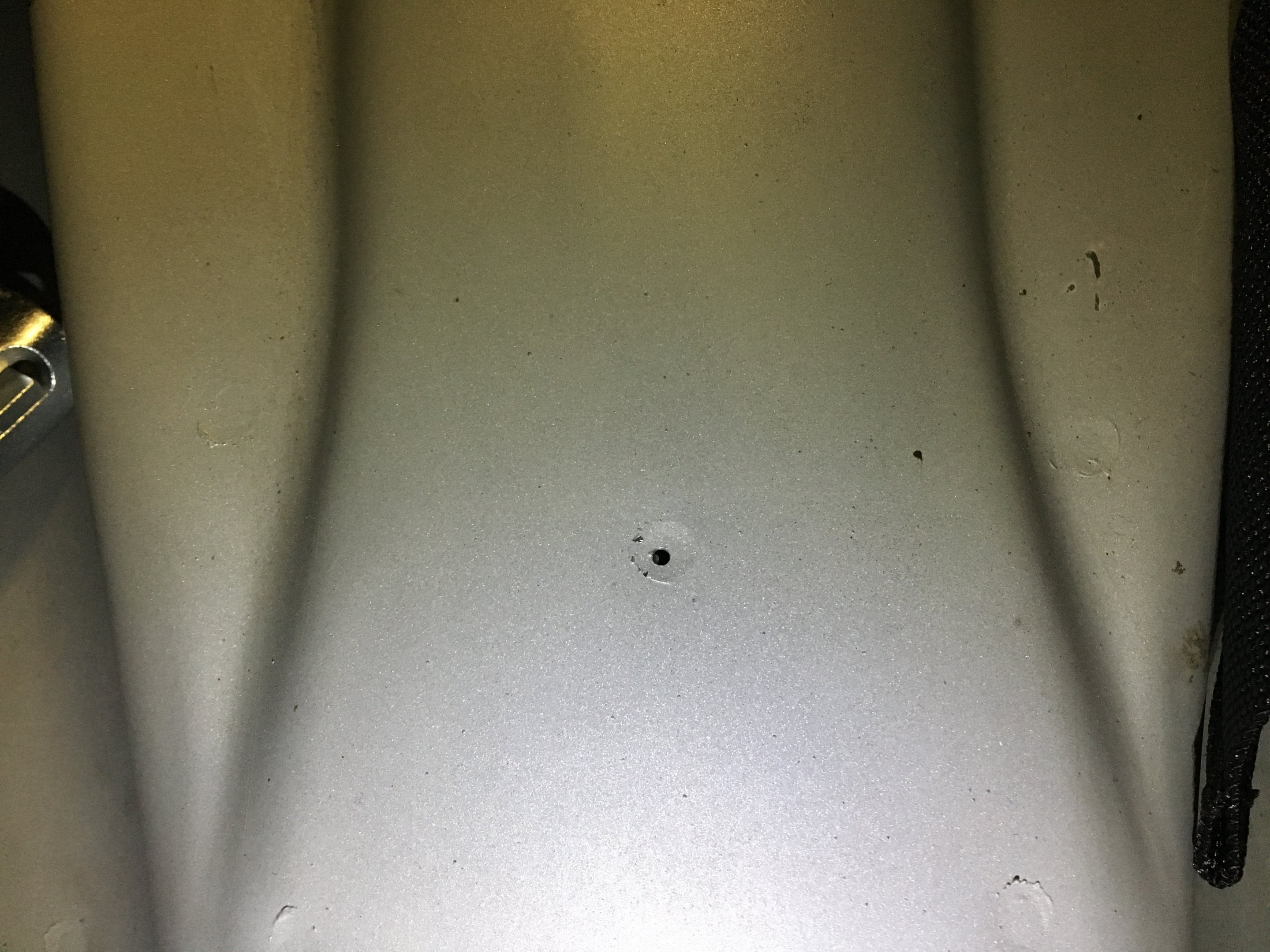

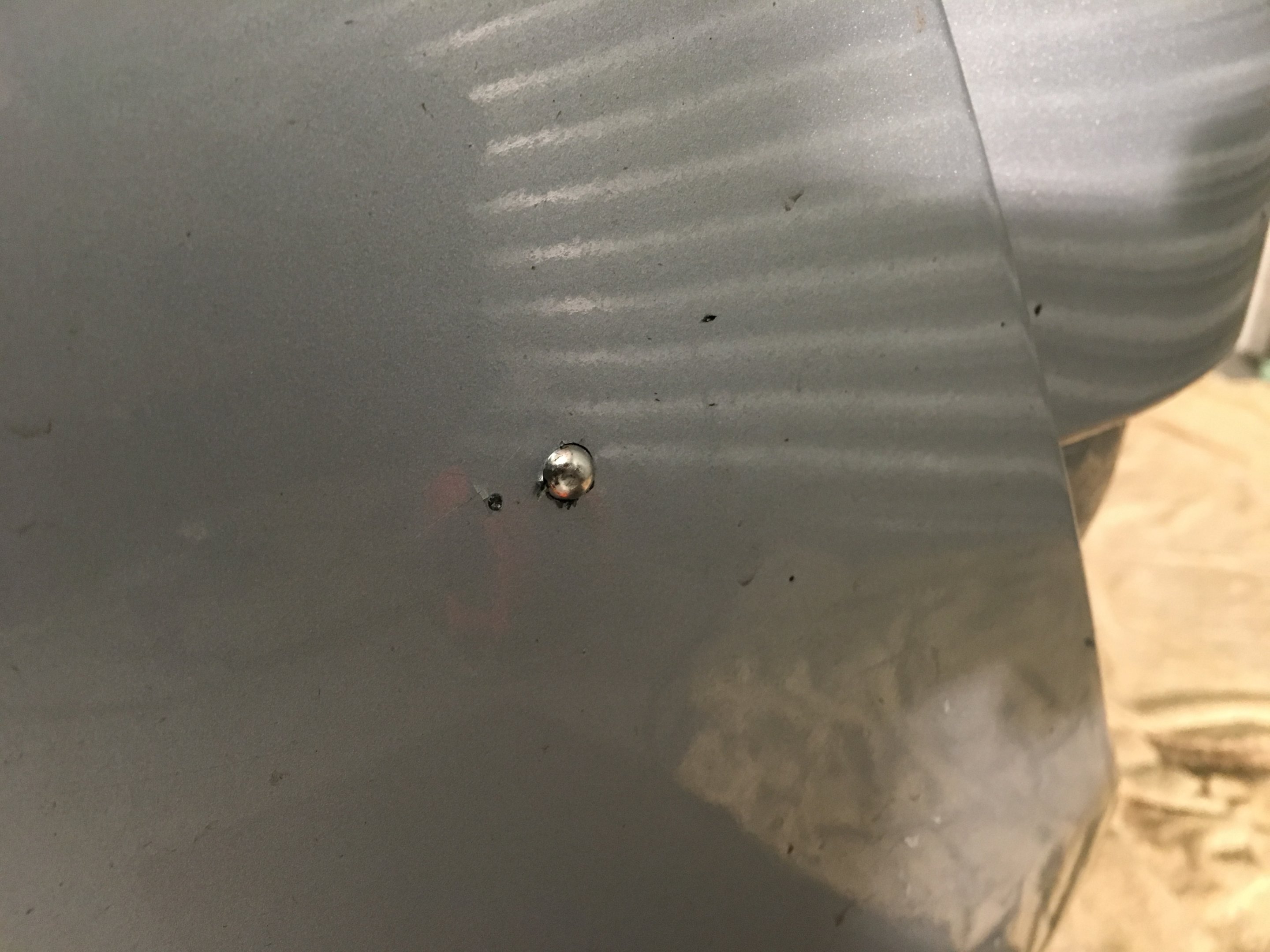

    I got the drill out and drilled a minute hole where I wanted the centre harness Bolt to sit.
    I then put a light over the hole so that I could place where it was underneath the car.
    As it happens, I'd nailed exactly where I'd wanted the hole to go...
    More on this below..



    This is why I was premature on my harness and seat installation!
    Bloody shards of metal everywhere!
    I mean, what did I expect whilst drilling metal! :tearsofjoy:

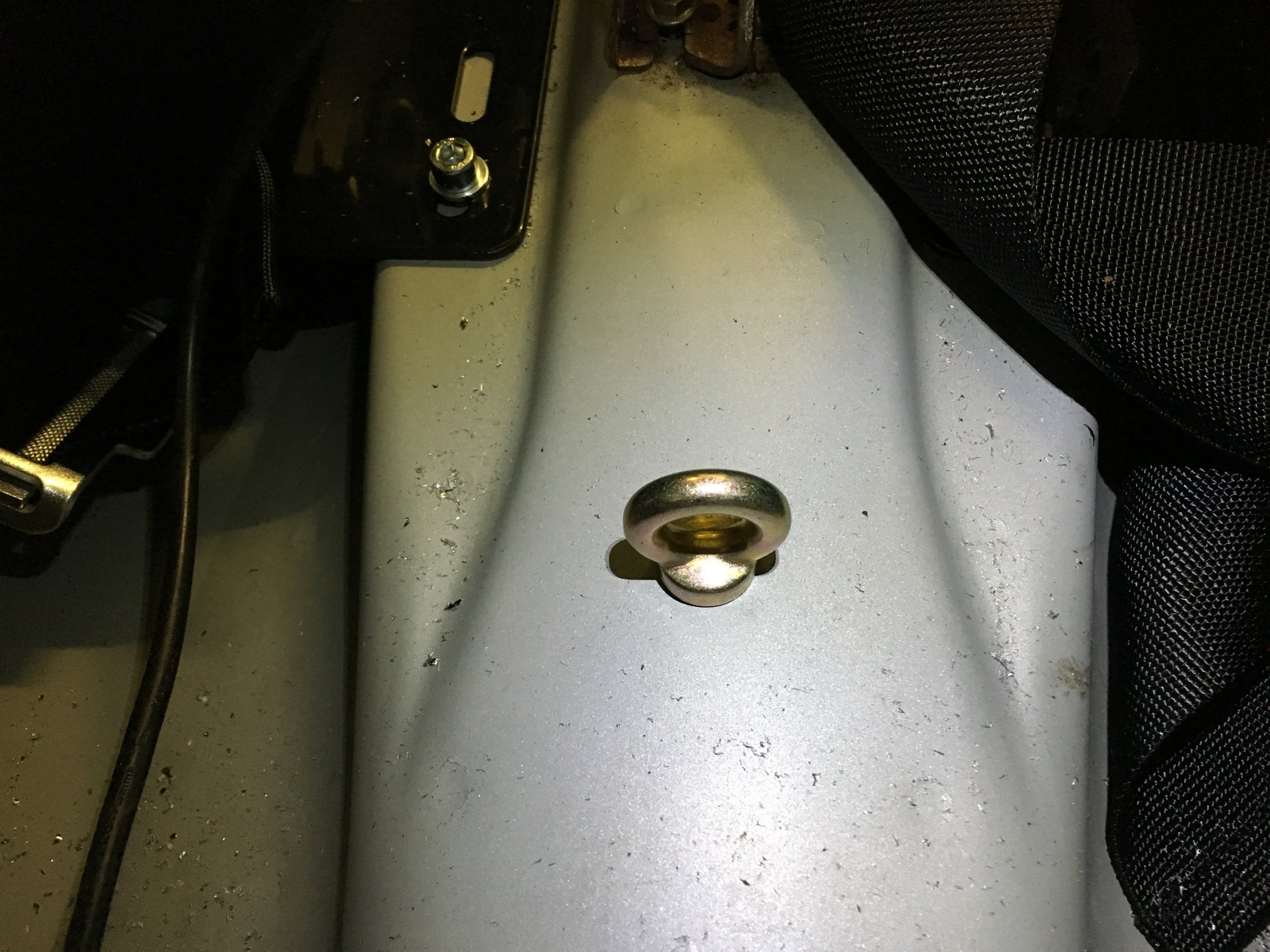

    So, I drilled the hole to size and dropped the bolt through.

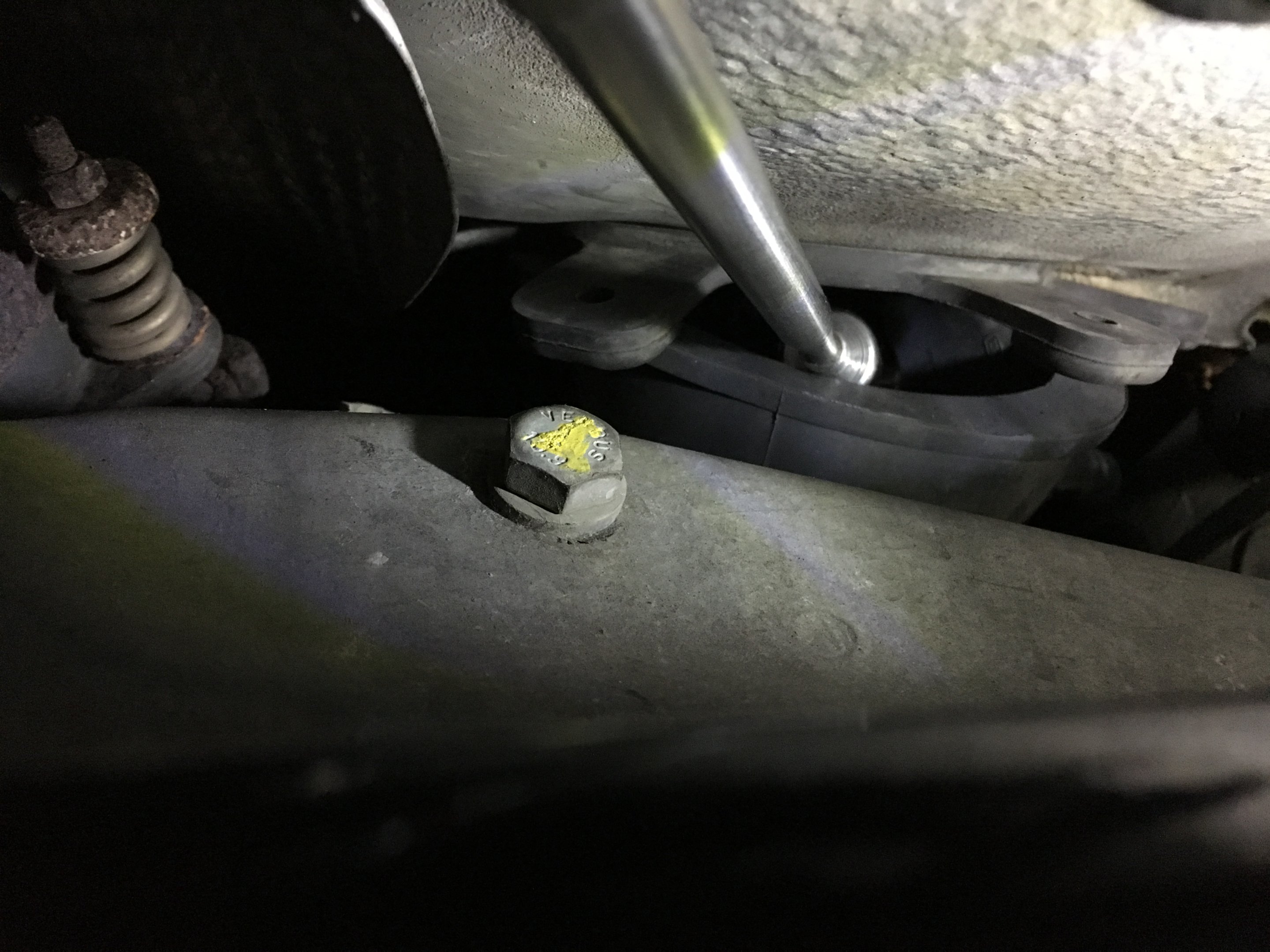

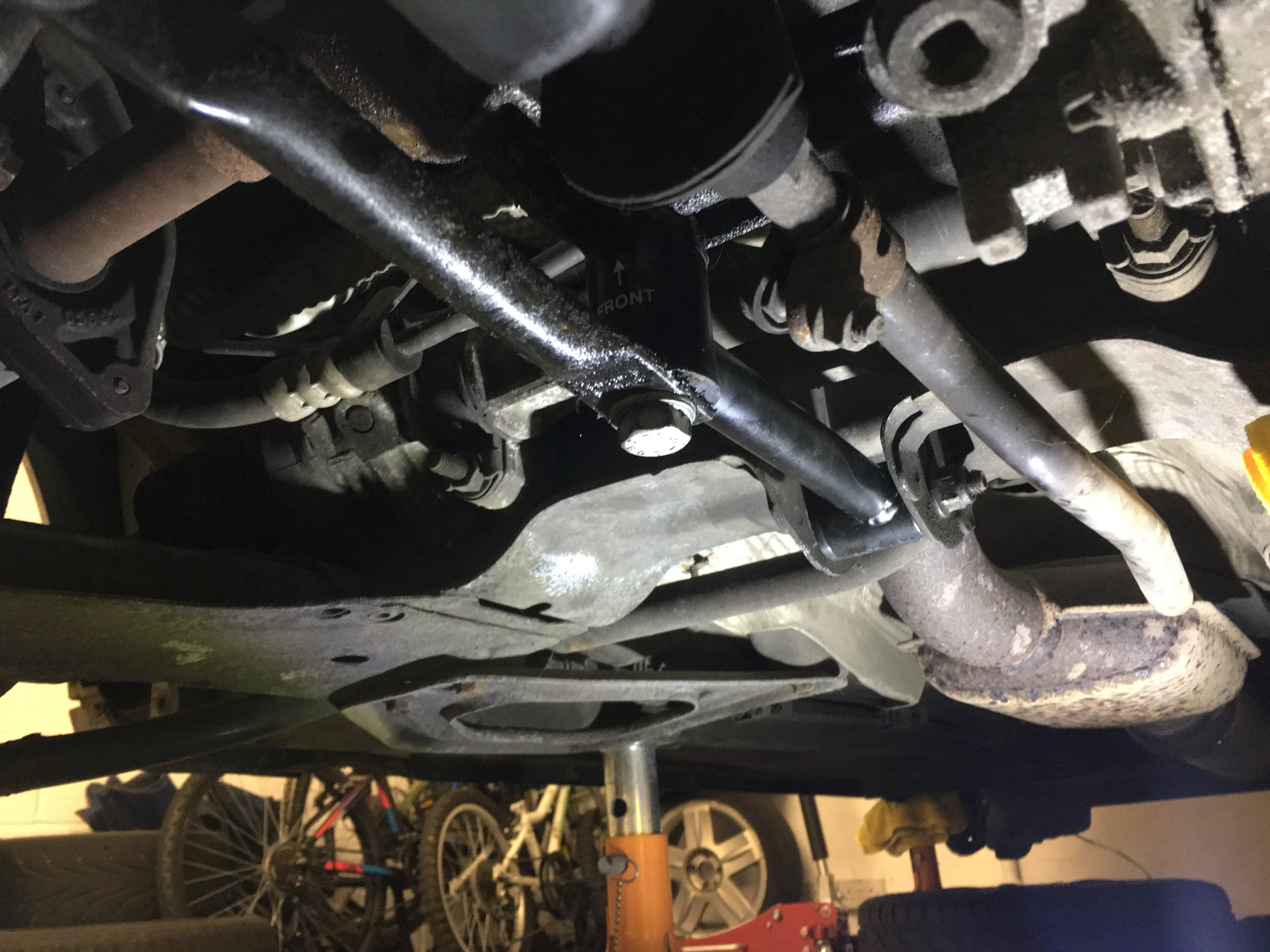

    I then went underneath the car and had to remove a section of heat shield from over the exhaust.

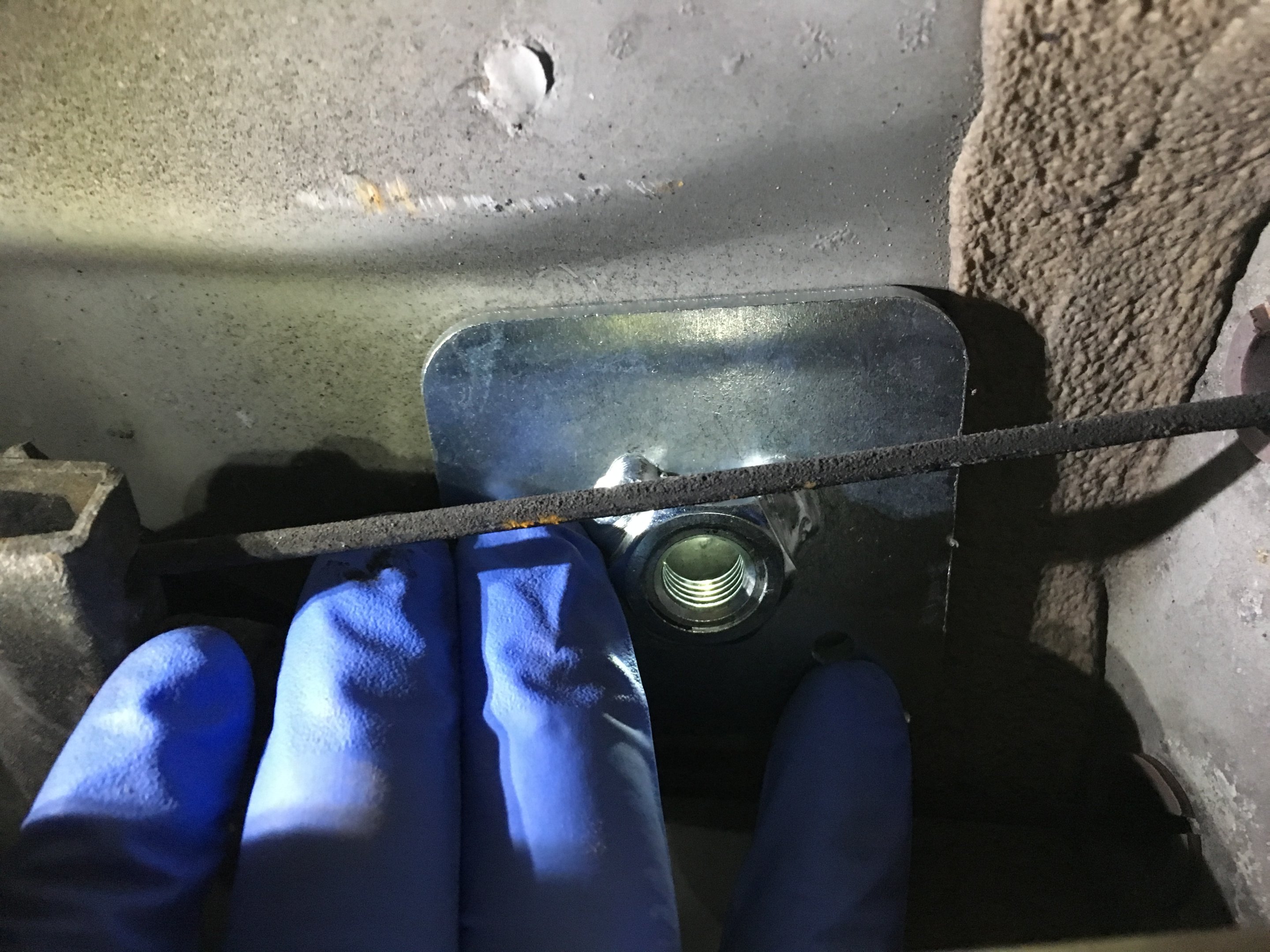

    Once that was out of the way it was easy enough to fit the strengthening plate.

    A little fiddly, but I put a socket and extension onto the plate and spun it.
    Making sure to stay straight and level with the bolt, it caught on and spun its way home!
    Lucky me really as I thought it would be a two man job!

    The reason I wanted the plate to sit in this location...
    Quite literally because it WOULDN'T foul on anything here.
    Everywhere else in the centre console was either inaccessible or something would foul.
    The cable you see is the handbrake cable and it WILL NOT foul.

    The picture below shows where the plate was going to sit once tight,
    but this was taken before the bolt was in (obviously) :laughing:

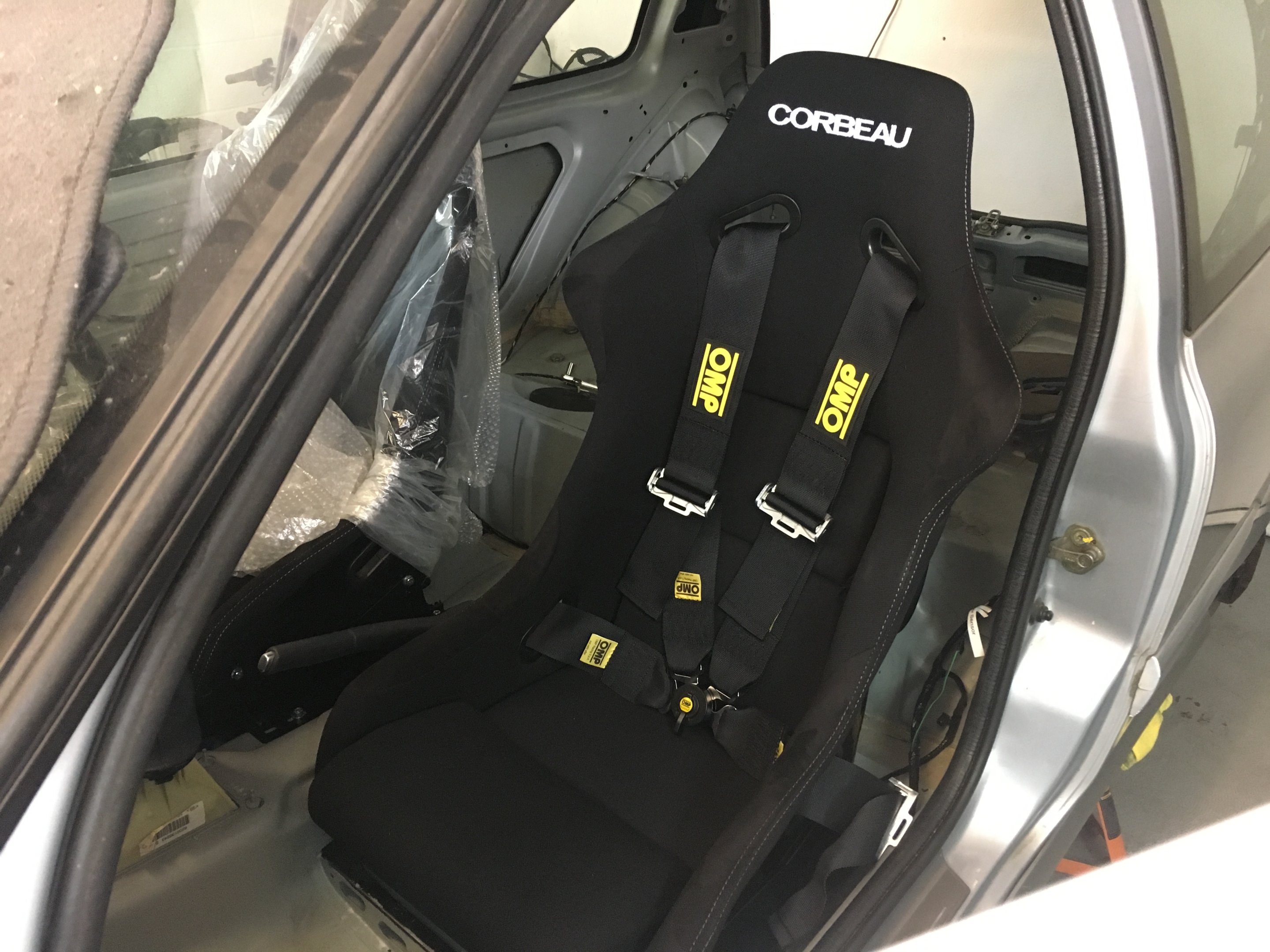

    Passenger seat all in!
    This side sits lower due to not having rails fitted
    It's also sat quite far back, meaning that I'll be able to have a good peripheral view.




    And to finish off his update, how about an attractive photo of me :tearsofjoy::tearsofjoy:


    Thanks for reading all
    Any questions and/or queries please get in touch
    Critics welcomed

    20vKarlos


    -----
    ---
    -

    SharkyUK, mintno1, JKING3008 and 3 others like this.
  8. JKING3008

    JKING3008 ClioSport Club Member

    Joined:
    Feb 10, 2016
    Messages:
    368
    Car:
    Clio 182 & Volvo V70
    All looking good bud, seats look good!

    20vKarlos likes this.
  9. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    Thanks mate... won't be long and she'll be rolling on the new wheels... :smile:

  10. JB21

    JB21 ClioSport Club Member

    Joined:
    Oct 24, 2015
    Messages:
    3,250
    Location:
    St Helens
    Car:
    ST 155/182 FF
    Did you not need to weld in the plate for the harness eye bolt? I need one to upgrade to a 5/6 point harness as my OMP 4 point loosens and rises up from my hips on track, making the shoulder straps loose as well.

    20vKarlos likes this.
  11. JamesBryan

    JamesBryan ClioSport Club Member

    Joined:
    Feb 12, 2009
    Messages:
    8,094
    Location:
    Warrington
    Car:
    Titanium 182
    Looks like he's only using 4 point mate. I prefer 6 point myself as you say the 4 points can ride up a bit.

  12. JB21

    JB21 ClioSport Club Member

    Joined:
    Oct 24, 2015
    Messages:
    3,250
    Location:
    St Helens
    Car:
    ST 155/182 FF
    Aye, same harness as mine. So that plate can be used without welding to fit under my seat for the additional strap for a 5/6 point?

  13. JamesBryan

    JamesBryan ClioSport Club Member

    Joined:
    Feb 12, 2009
    Messages:
    8,094
    Location:
    Warrington
    Car:
    Titanium 182
    Yeah it'd need to be mounted underneath or drill a hole in the floor to accept the nut when the plate is flipped over and then weld around the plate.

    JB21 likes this.
  14. OssPoop

    OssPoop ClioSport Club Member

    Joined:
    Dec 1, 2014
    Messages:
    3,163
    Location:
    Barnsley
    Car:
    BG 182 at last!
    All looking good there mate. Any chance of a track day this year for #DisasterClio?

    20vKarlos likes this.
  15. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    I've not welded the plate, the only way this anchor point will move is if it's either ripped out of its threads, which is Highly unlikely or if the plate gets ripped through the floor, again highly unlikely

    This has crossed my mind a few times, but as far as I can tell with these harnesses, I can add the 5th & 6th straps if I wanted.
    I may be incorrect, but the buckle has the accompanying openings for this feature.

    I'm not going to say no, but I'm also not going to say yes... mainly as the longer I take on the build, the more money I get to spend on it :tearsofjoy:
    It's a funny system I have, I give myself a monthly budget, if I don't use it, it's added to next months :up::tearsofjoy:

    In all seriousness, I'd love to get it out this year, but I'll take each day as it comes.


    I'm off to Canada in the morning gents, to surprise my mother for her birthday, so once back I shall get stuck back in. I shall also get the remaining updates written up on my week away without children :up::grinning:

    jamesycc and OssPoop like this.
  16. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    Completely forgot to mention this!!!!

    This isn't a bad shout, in fact it's something I guess I started with the thread name!

    Great suggestion :up:

    Keep them flowing :grinning:

    OssPoop likes this.
  17. jamesycc

    jamesycc ClioSport Club Member

    Joined:
    Apr 26, 2014
    Messages:
    1,158
    Location:
    Brizzle
    Car:
    French tangerine
    #ProjectKarLust

    20vKarlos likes this.
  18. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    :tearsofjoy::tearsofjoy::tearsofjoy:

    jamesycc likes this.
  19. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172

    -
    ---
    -----
    Evening all...

    Please forgive me for the lack of updates recently.
    I'd planned to get this up to date but a last minute trip to Canada had the, plans turned upside down!

    I won't bore you with the trip details, but I did enjoy a fair amount of these... :grinning:


    Well it's not a typical "Full English" however, it was rather nice

    Anyway, on my week away I wrote a list of items that I HAD to complete, and a list of items that need purchasing.

    So when I got home, I had a flat out session on the car.

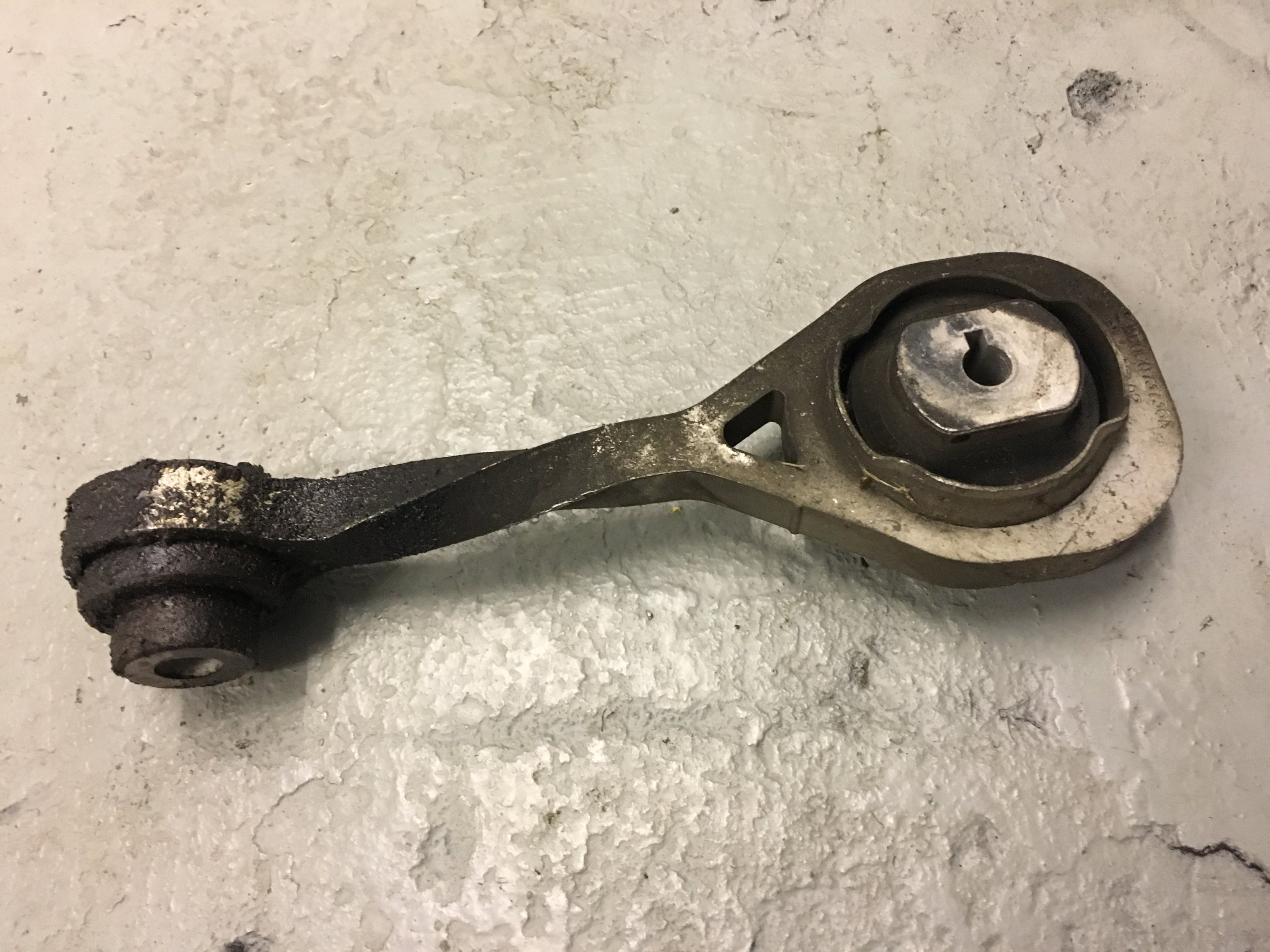

    Firstly I removed this messy lump...

    And replaced it with this...

    EVOL Mount

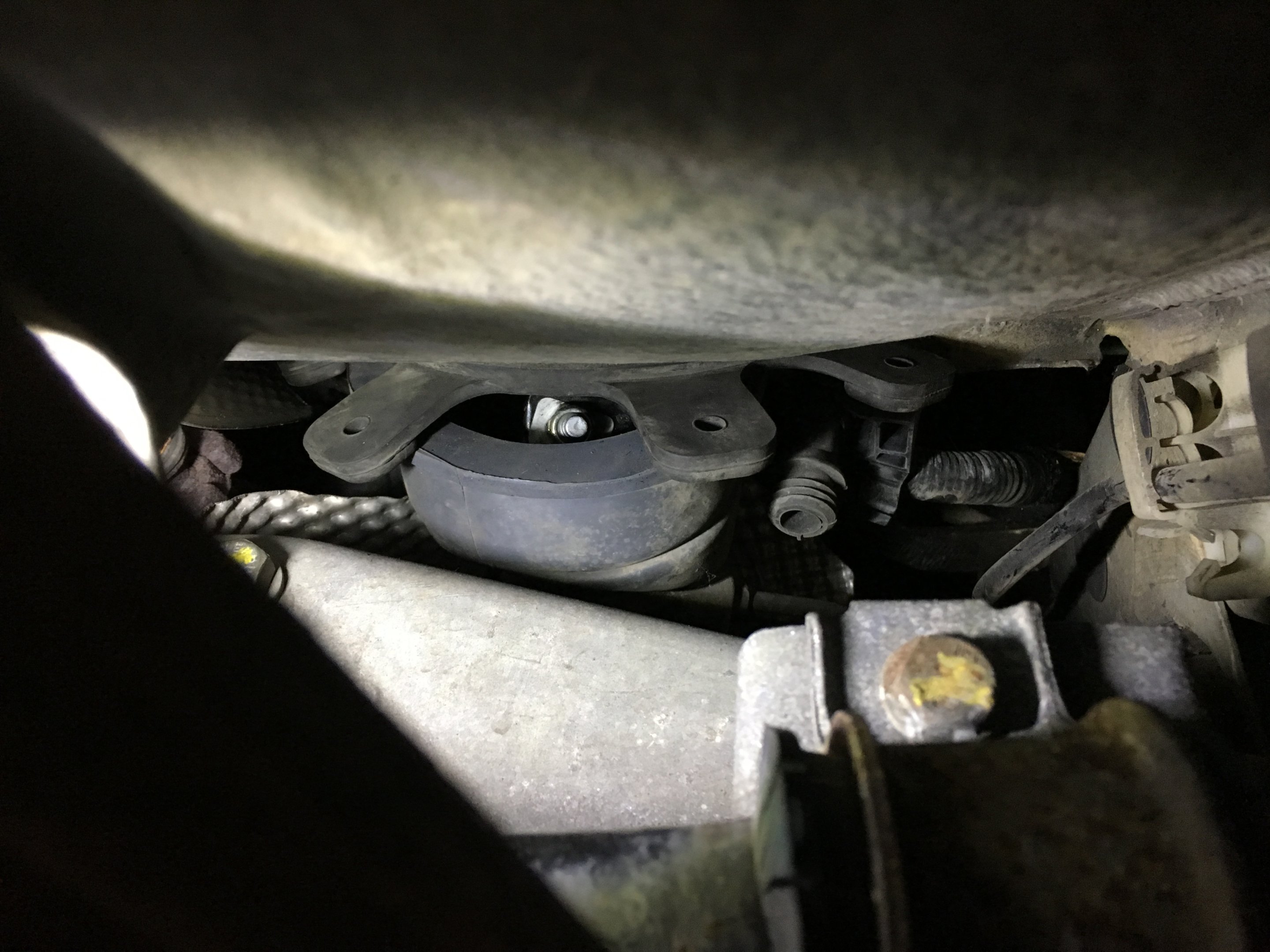

    As you can see, I've got a slight oil leak/potential historic leak, but I'll be cleaning this up shortly to see if it continues.

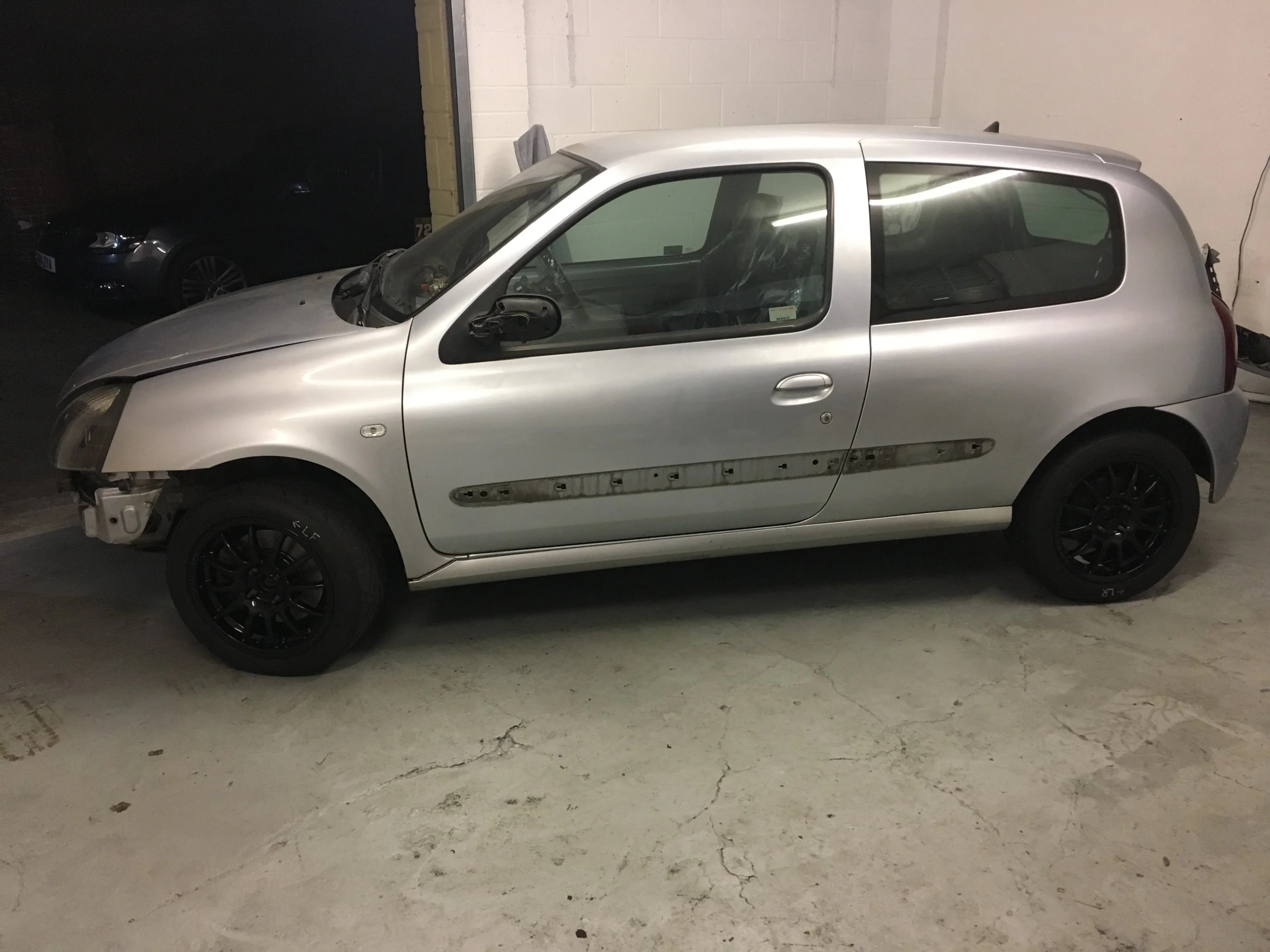

    Once this was mounted, I got the car onto its new wheels... Team dynamic Pro Race 1.2's... and for the first time in 3 maybe 4 months, it's back on the ground.

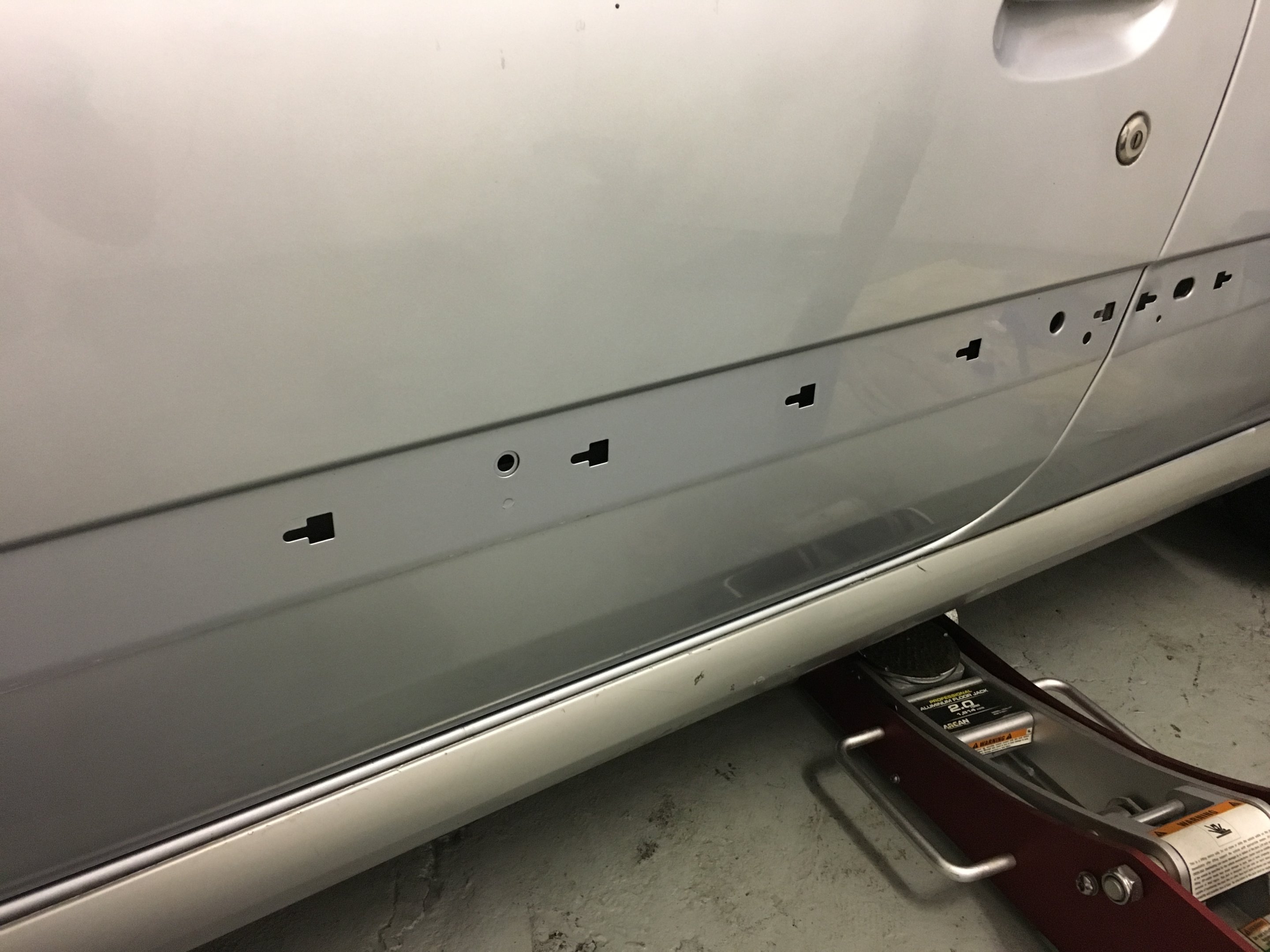

    As you can also see, the side strips are currently off in this photo, Nd you can see just how well this car was taken care of in its previous life... IT WASNT!! :monkey:



    So I gave this a good clean up

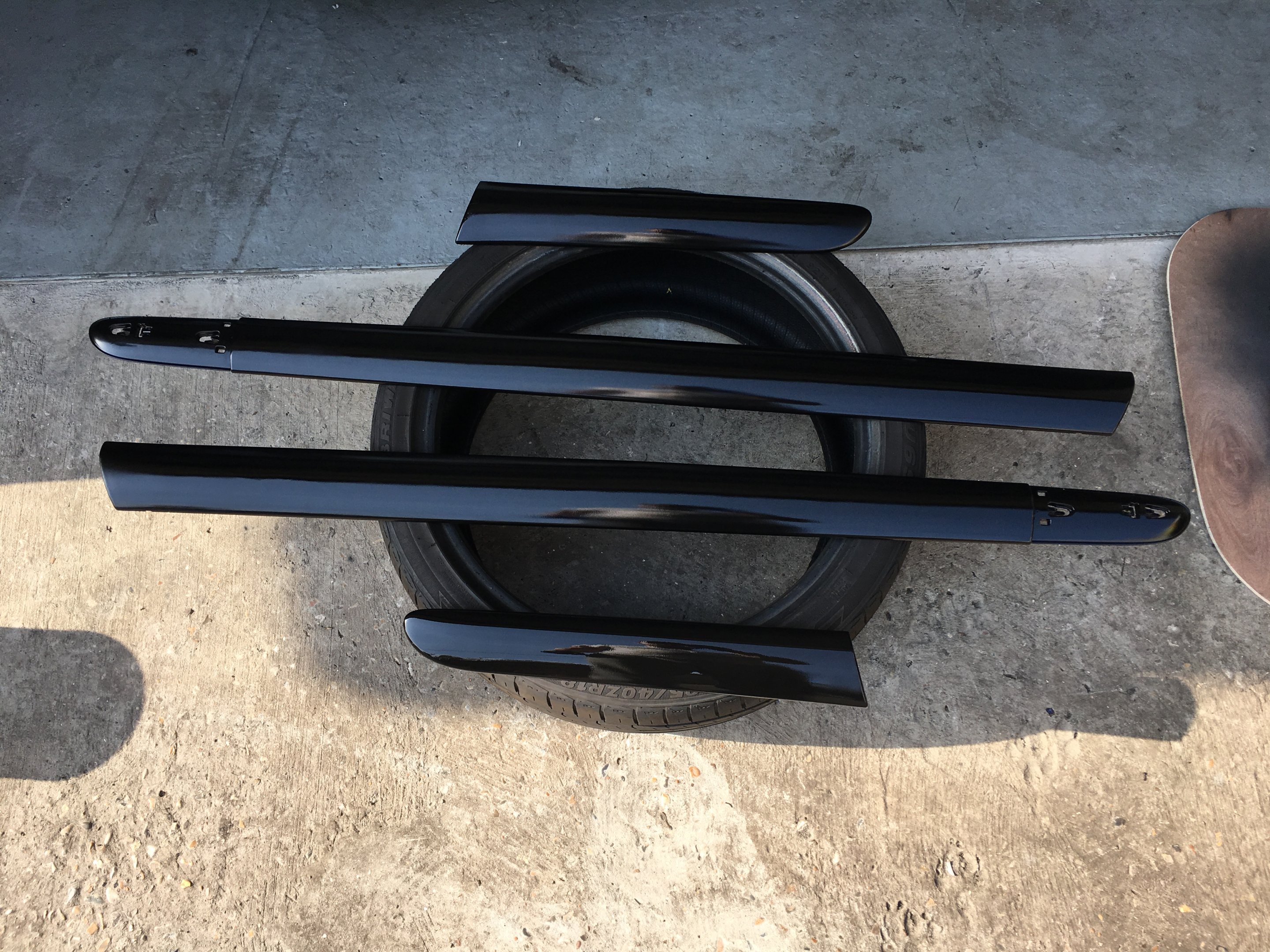

    Once this was done I set about getting the side strips prepped for a tidy up.
    Sand, sand, sand some more, primer, sand, primer, sand, paint, sand, lacquer, lacquer etc... not exactly in that order, but it felt like I did enough sanding for the year! :tearsofjoy:




    The paint job isn't the best by any means, but it was an experiment on my part, to see if I could do a good enough job with the rattle can for potential future jobs.
    Quite chuffed with the outcome when I saw it in the sunlight.



    So... the next step was fitting....

    coming up next :up:
    Next update should be tomorrow evening

    Thanks again all

    -----
    ---
    -





  20. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172

    -
    ---
    -----

    So to carry on from last nights update...

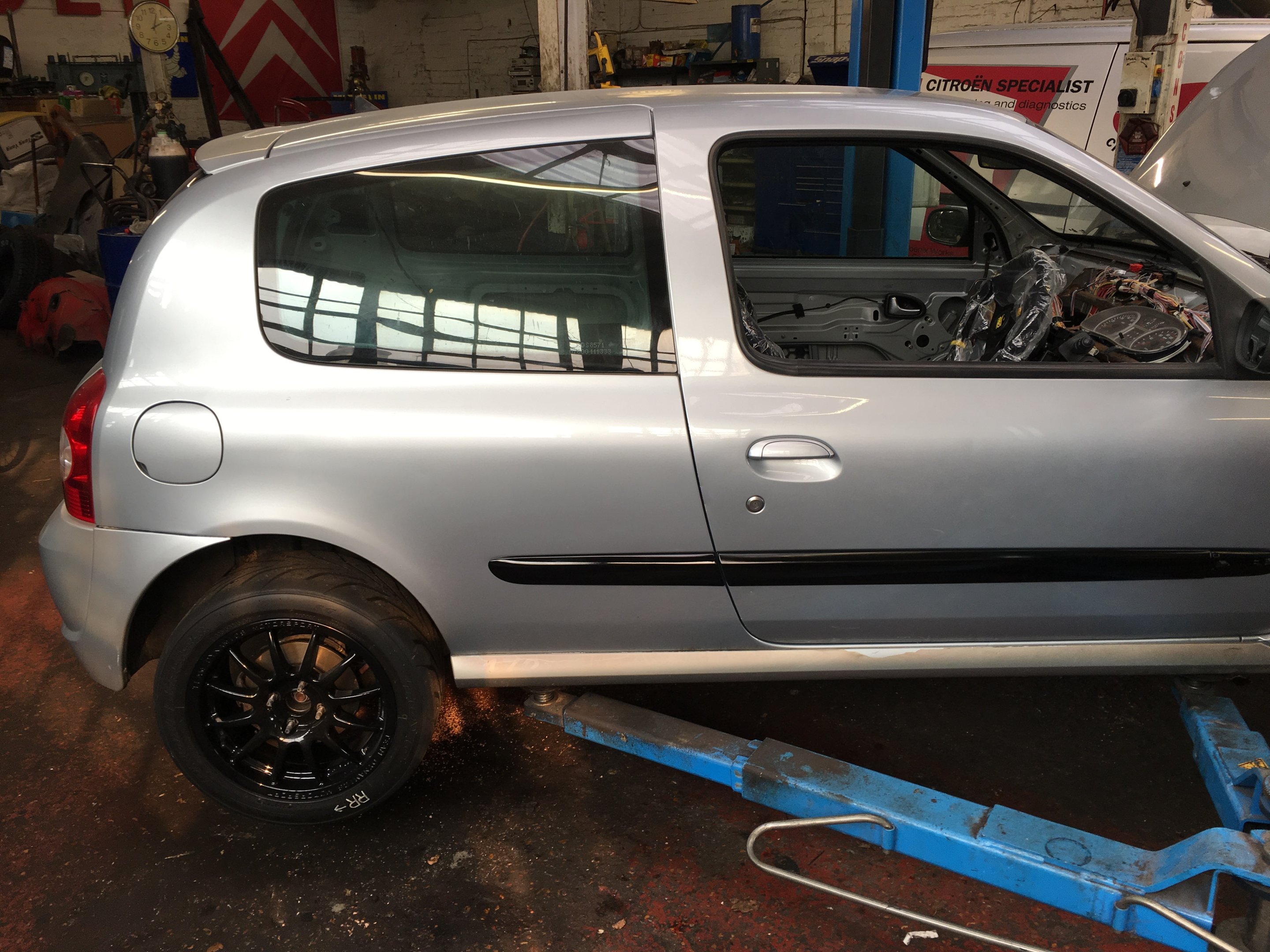

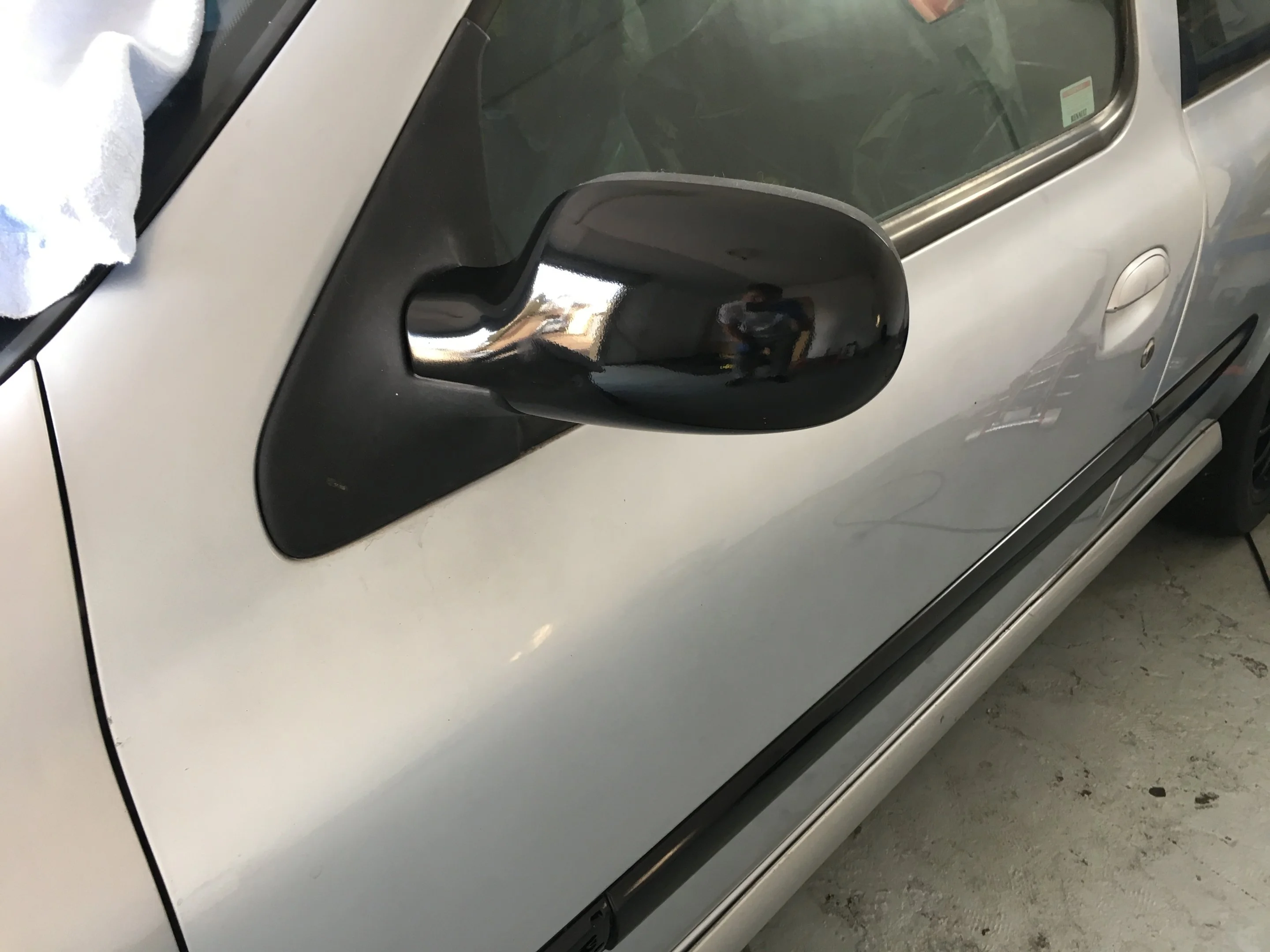

    I've fitted the side strips and the wing mirror covers.




    I also had the car up on the ramp next door for a couple of hours to bleed the brakes and give the car a complete nut and bolt check.


    When I got the car back into the lock up, I took the rear badges off the car... few reasons.

    A) they went in good shape
    B) they looked crap
    C) well #BecauseRace...no not because RaceCar at all.. it just didn't look good
    It'll probably get wrapped or a new "lighter" tailgate fitted :grinning:

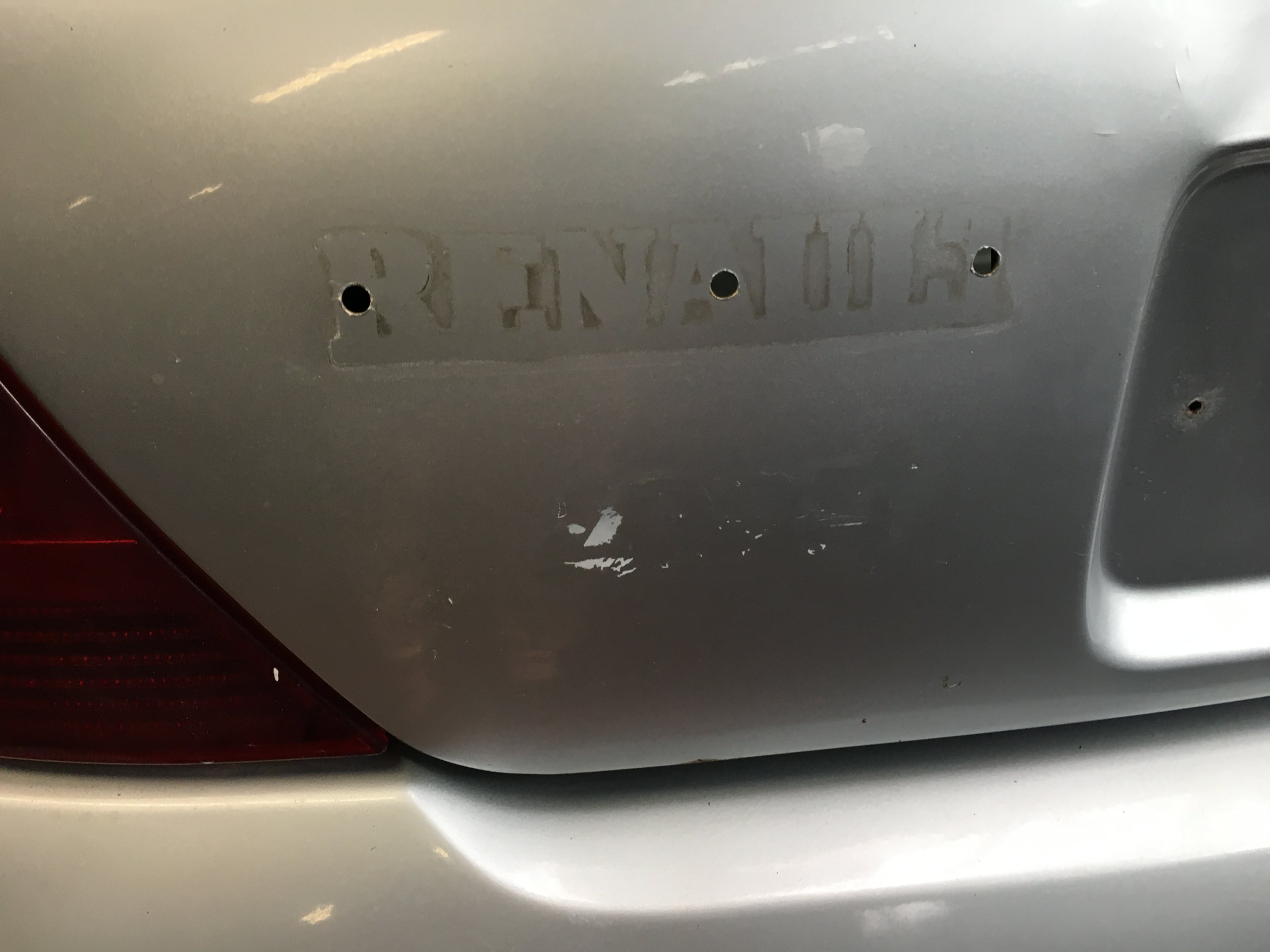

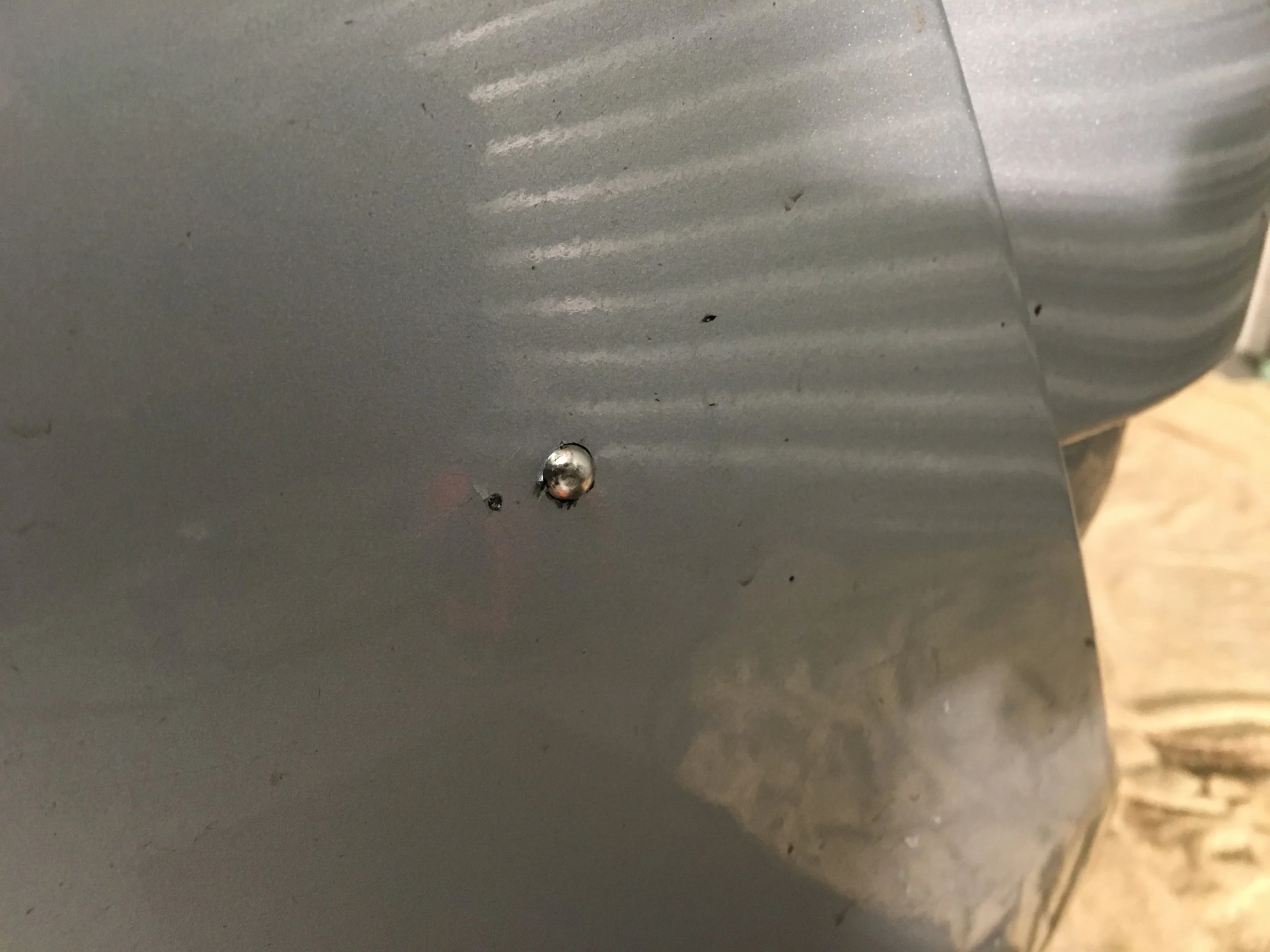

    I'm not sure about the following, but it looks to me as if this Renault badge wasn't the original badge?
    Looks like some numpty has drilled it!

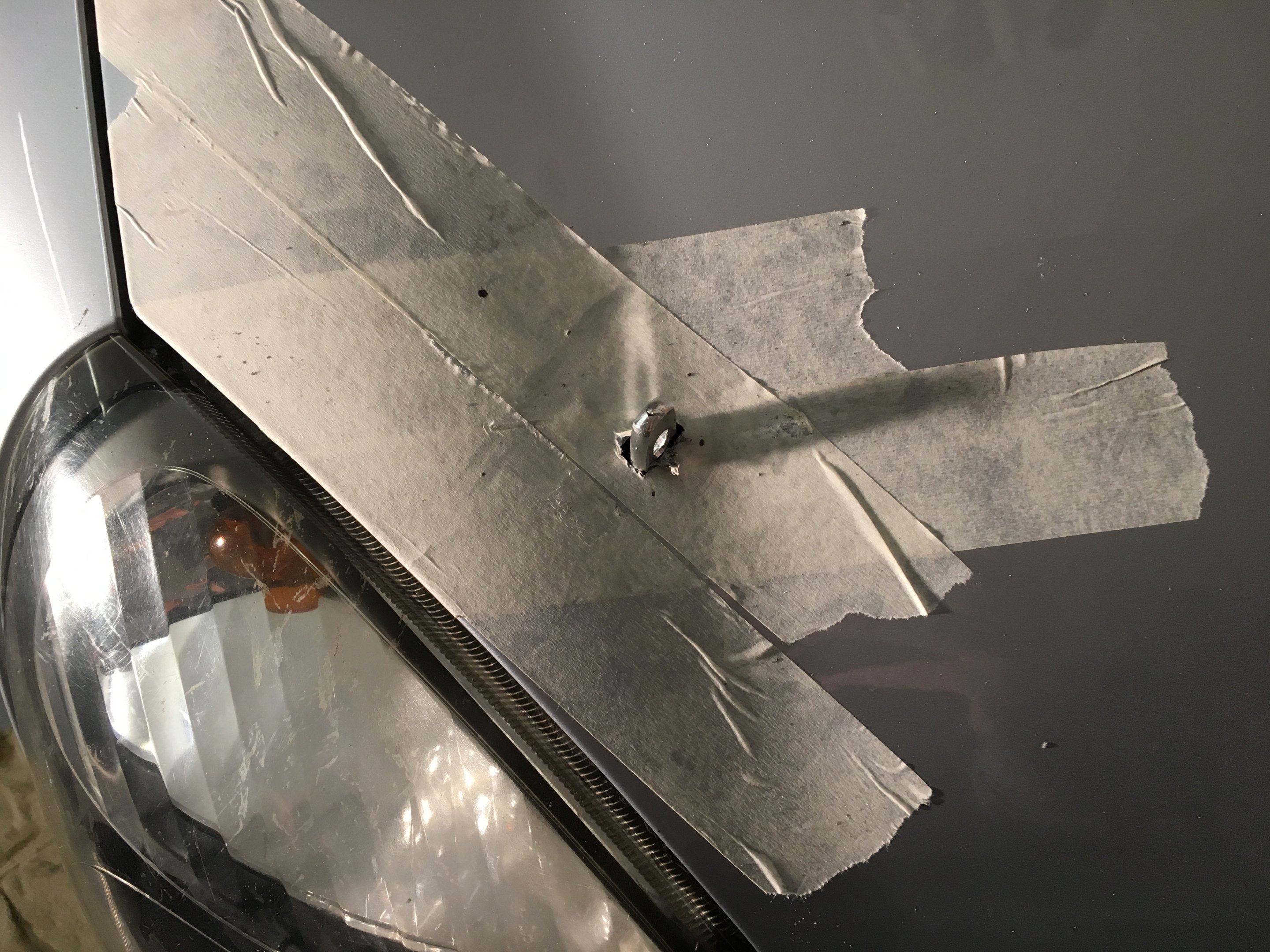

    Anyway, if I cared about the paintwork on this car, I'd be restoration g and polishing like crazy... but I couldn't care less :tearsofjoy:
    Again, the sport badge was poorly adhered to the car and it was actually covering up the previous badge as that had a poor removal too.

    On this car, it's really hard not to worry about things like this,
    as I'm known For being a pain in the arse when things aren't quite right,



    The other side would look great after the badge removal if it wasn't for the horrendous dents from the inside of the boot panel:monkey:

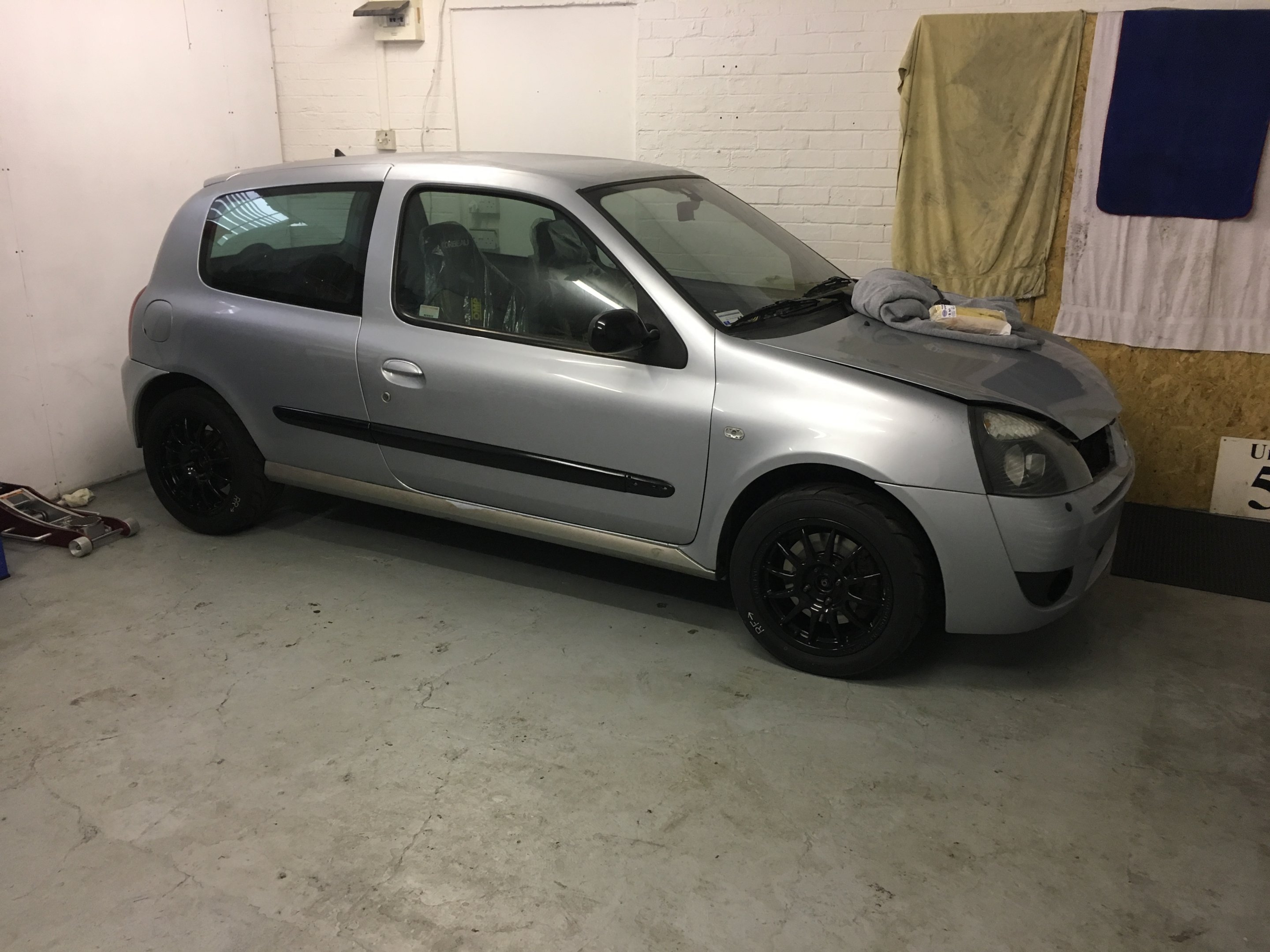

    I then got the car tucked up, out of the way for the time being, as I've got a few things to sort on the Superb shortly.



    Look how high it sits!!!
    This need rectifying asap!!!!


    So... what's next?
    A few items are still needed and a few items I've got that need fitting

    Needs fitting
    - bonnet pins (cheap eBay ones arrived last week)
    - Bumper pins/poppers

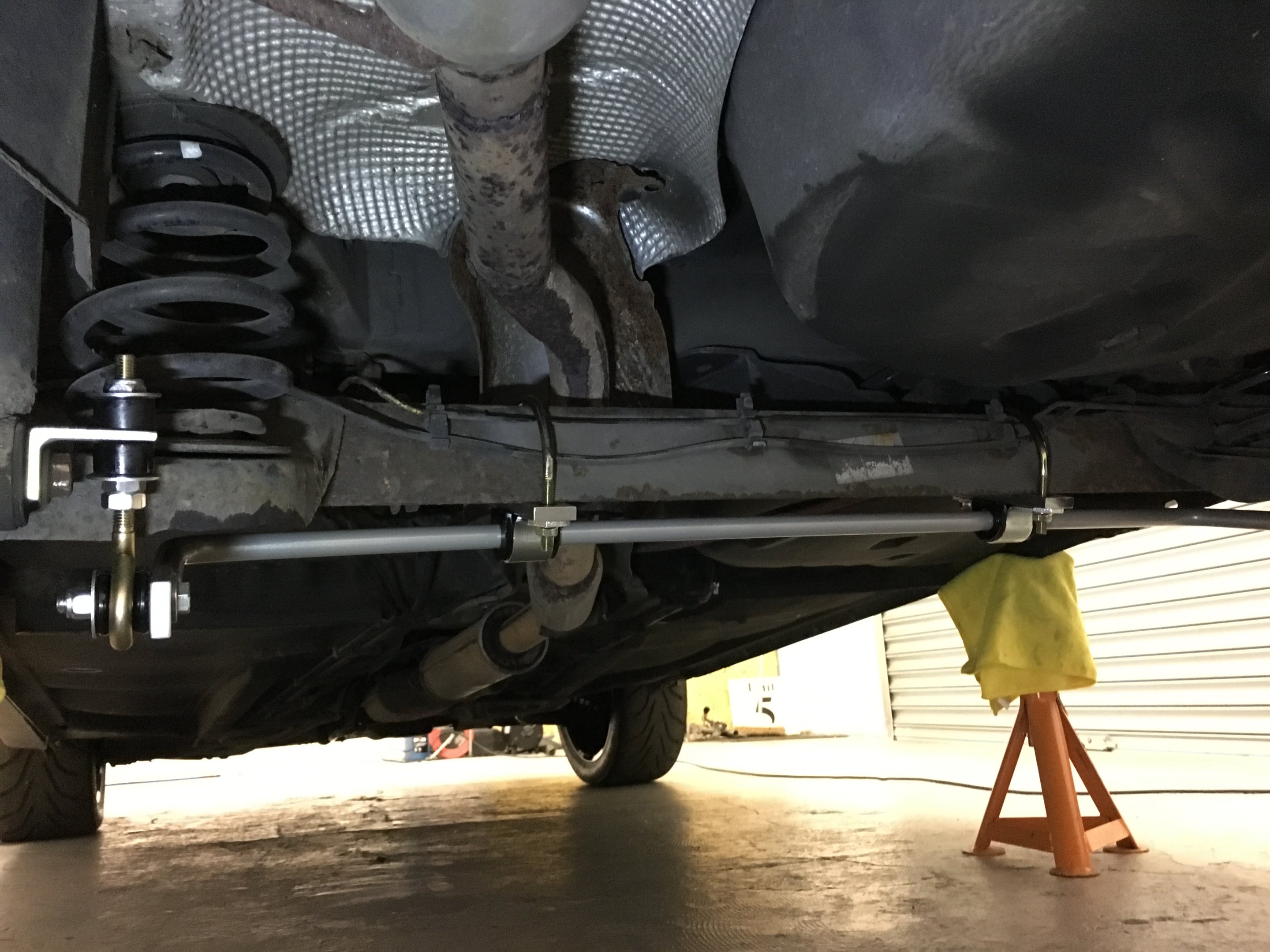

    - Whiteline RARB
    - Tow Straps


    Needs Purchasing/doing

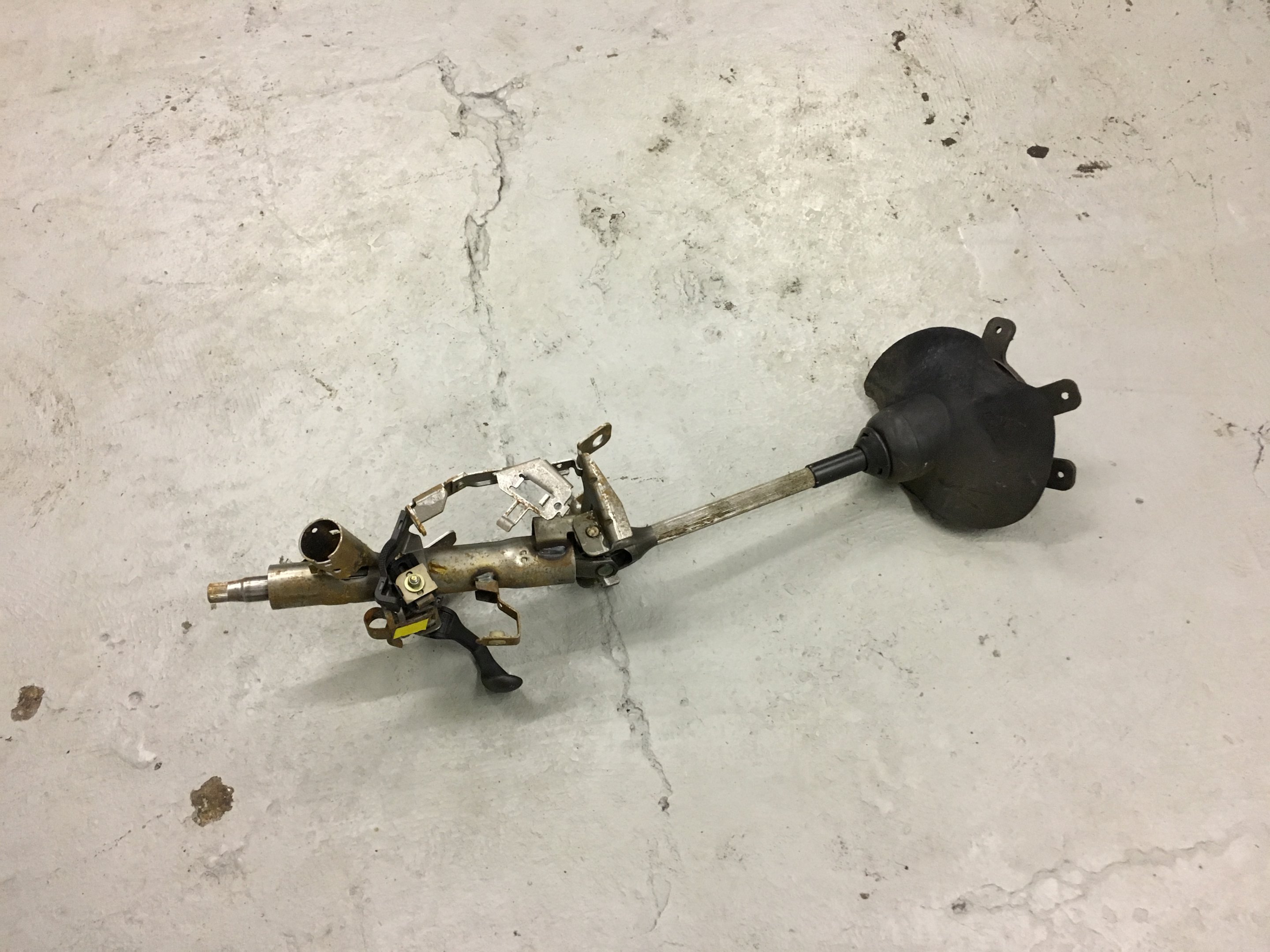

    - Steering column (currently sourcing)
    - camber bolts
    - need to make a heater and hazard light switch mounting plate
    - suspension. Possibly
    - Geometry setup

    Then... hopefully some track time

    Thanks guys more to come soon


    -----
    ---
    -​

  21. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172

    -

    ——

    Hello all

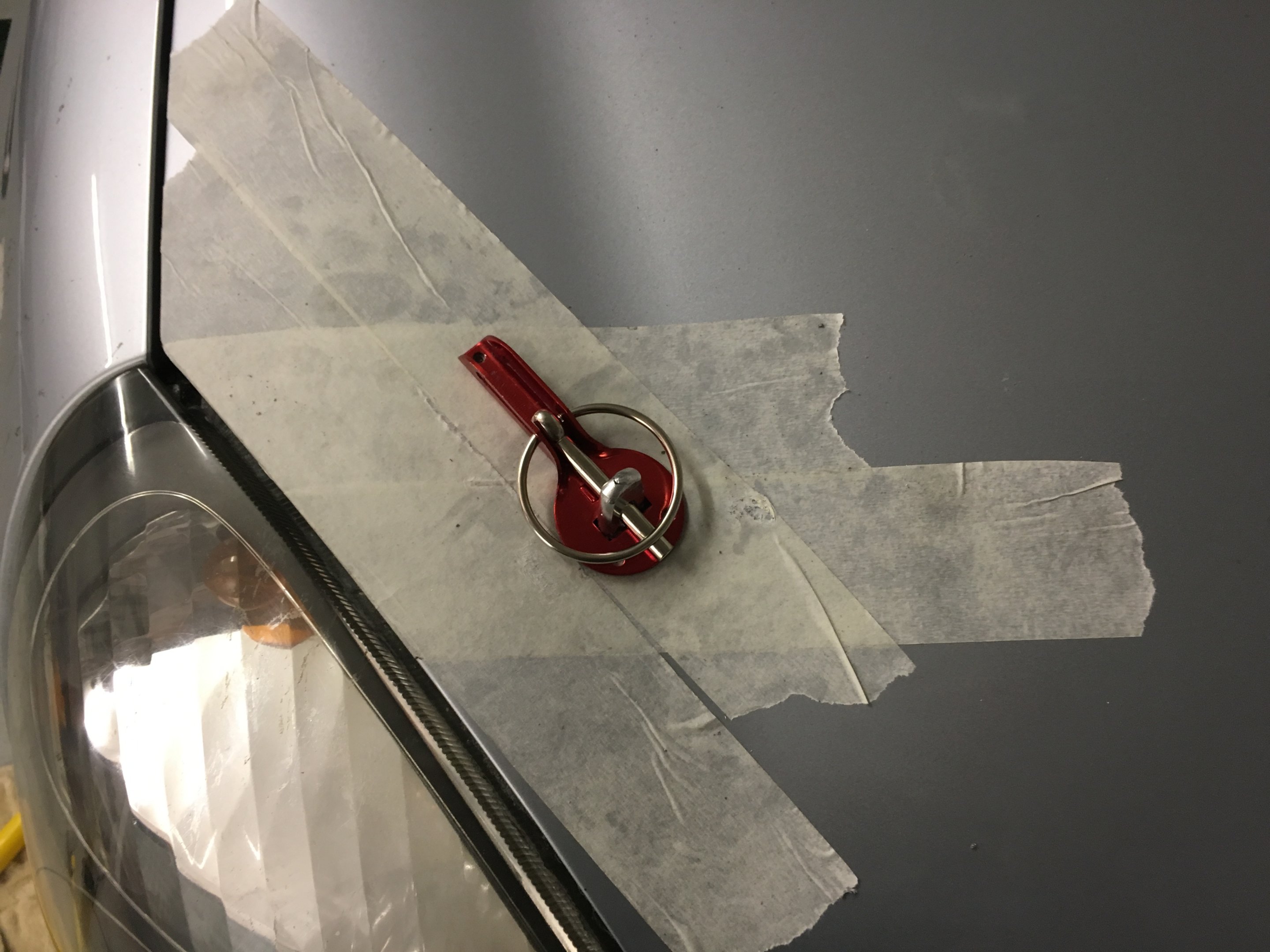

    Cheap eBay Bonnet Catches arrived, as did the more expensive quick release bumper latches for the CS group buy.


    So I made a start this evening on the bonnet catches

    Please note: I’m not looking for a perfect finish as it’s just for track use.
    If I were doing the cutting to a car with good bodywork, I’d make sure to protect it.



    I then put the catch in place to make sure it was a good fit and to see whether any adjustments would need to be made.
    On this side I needed to widen the gap slightly as it was catching the bonnet very slightly.
    Other than that it was a very good fit!




    I don’t like the screws that have come with the catches, so I’ll be picking up some small nuts and bolts tomorrow and hopefully get them fitted too.


    I’m just waiting for my steering column from @Kelv and a few other smaller items, but seeing the car sitting so high is making me rather sweaty for a set of coilovers!!!


    More to come.

    Thanks all

    Karlos

    ——

    -​

  22. td_dan

    td_dan

    Joined:
    Mar 15, 2014
    Messages:
    60
    Car:
    kangoo
    Great project mate, but just a word of warning iv seen a couple of bonnets come flying up because of those cheaper bonnet catches so just be a bit wary.

    20vKarlos likes this.
  23. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    Hi Dan, thanks for your comment bud. I completely understand where you’re coming from and it’s something I am conscious of.
    I’ve actually got the proper AeroCatches but I’m keeping them for the fibreglass bonnet.

    Once I’m happy it’s running well and drives well on track, the bonnet will get swapped for fibreglass.

    There are a few reasons behind this but the main one being that if the car isn’t up to standard due to being a Cat C Write off (I won’t know until it’s driven) then I’ll scrap the shell and buy another road worthy shell. I know this sounds insane, but I need to be safe when travelling at high speeds and throwing the car around.

    I’m fairly certain it’ll be fine, but it’s just something that’s been niggling at me.

    Thanks though, appreciate your concern

  24. td_dan

    td_dan

    Joined:
    Mar 15, 2014
    Messages:
    60
    Car:
    kangoo
    Na mate i completly agree. Keep uo the good work as its an enjoyable read

    Sent from my SM-G930F using Tapatalk

    20vKarlos likes this.
  25. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172

    -
    ---
    -----

    Afternoon all
    Over the last few days I've been fitting the bonnet catches and doing some CAD! :laughing:

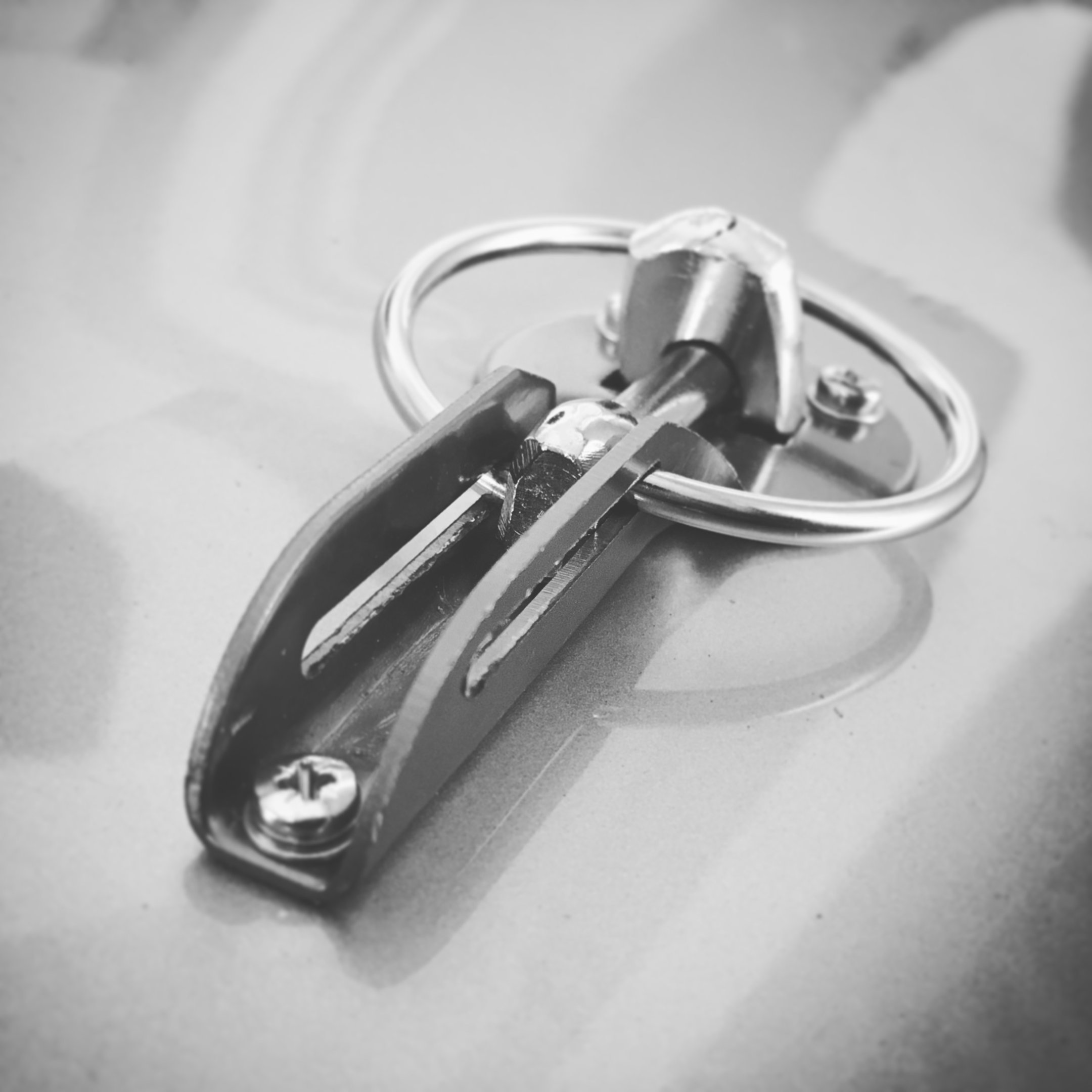

    So with all the holes cut and lots of fettling, I've got the cheap eBay catches fitted to where I'm happy with them.
    The main reason being that the bonnet wouldn't close correctly after the crash,
    so this is a temporary fix as mentioned above.

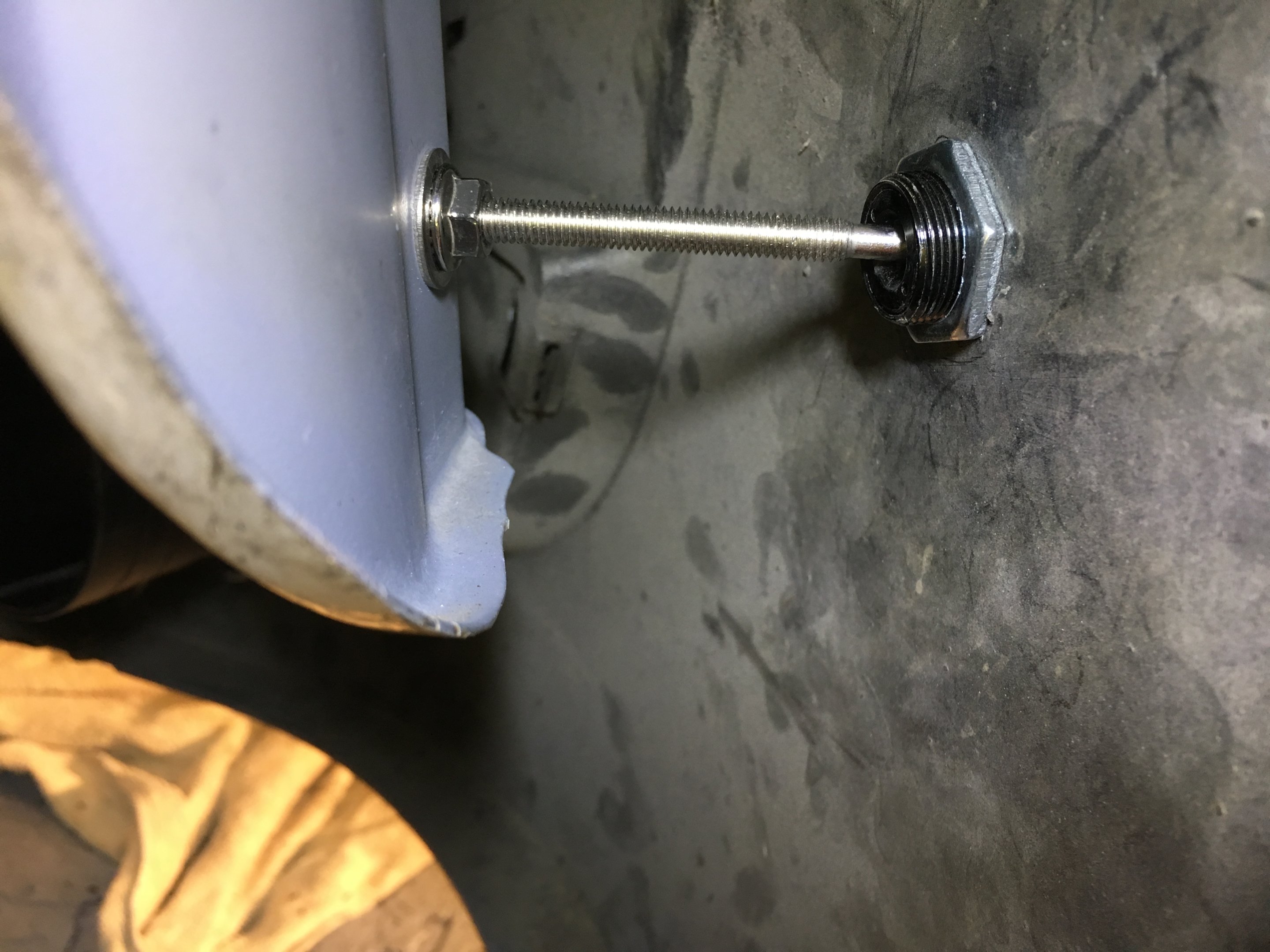

    How I've mounted mine (Nut, Washer, Panel, Catch, Washer, Bolt)
    The nuts 4p each
    Washers 2p each
    Bolts 6p each
    So for £1.12 (two spare sets) at my local merchants it was a no brainier!

    My instagram upload.



    Then I moved onto the bumper catches.



    Wait...




    But first....




    Let me take a selfie! :tearsofjoy:


    Here I am in my new goggles/glasses for the workshop.
    Just a set I picked up in halfrauds... but c'mon....aren't I attractive

    :monkey::laughing:



    So.. onto the serious stuff :smile:

    ***Side note/Guidance ***
    One thing to be aware of with these is that you need to do as much work as possible with the bumper ON THE CAR.
    The bumper needs to be sat in its natural position lined up in all the right places.
    Firstly, drill a hole in he metalwork where you want it to sit
    Put bumper in correct position
    Then get underneath it and fit the catch rod(shaft) so it's only just touching the bumper.
    Make sure the catch rod (shaft) is very tight, otherwise it'll move when it touches the bumper.
    Where the bumper meets the rod (catch shaft) draw your circular cut out.
    Make sure you're happy with its position before cutting.


    As you can see below, I cut a 6mm hole for my rod to push through.
    I then gradually widened the hole to reach my desired width.



    Another Instagram photo below, looking rather moody.

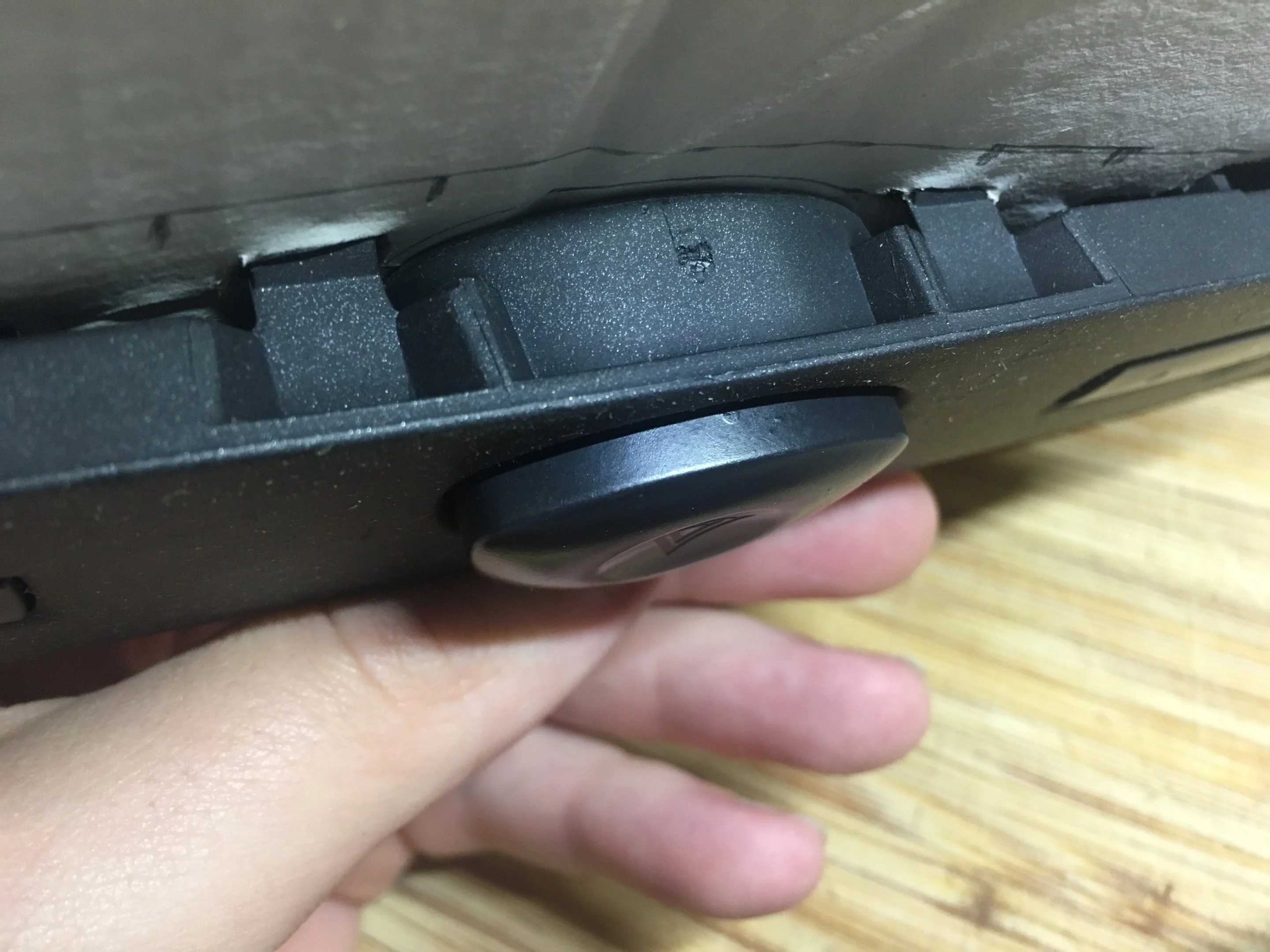

    This shows the catch fitted and flush.
    The "popper" mechanism on these is rather strong.



    As you can see below, the Catch rod doesn't hit the catch square on.
    This doesn't matter though as they've got a great radius to them.
    Making these catches a very good item in my opinion and I highly recommend them!

    Also, you'll notice the primer to the left
    whilst I was here, I ground back some rust and primered it.


    I've got one more bumper catch to fit
    This will get done when I next pull the car out as it's currently got the near side against a wall in the lock up.

    I then moved onto my CAD prototyping!
    For this evening of you not familiar with ProjectBinky on YouTube...
    It's very technical stuff!!!

    CAD = Cardboard Aided Design :tearsofjoy:

    Something I'd been meaning to get done for a little while was to Mount the Heater & hazard light panel.
    Not having a cheap off the shelf method to get these mounted in a place where you can reach with harnesses on,
    I turned to CAD!

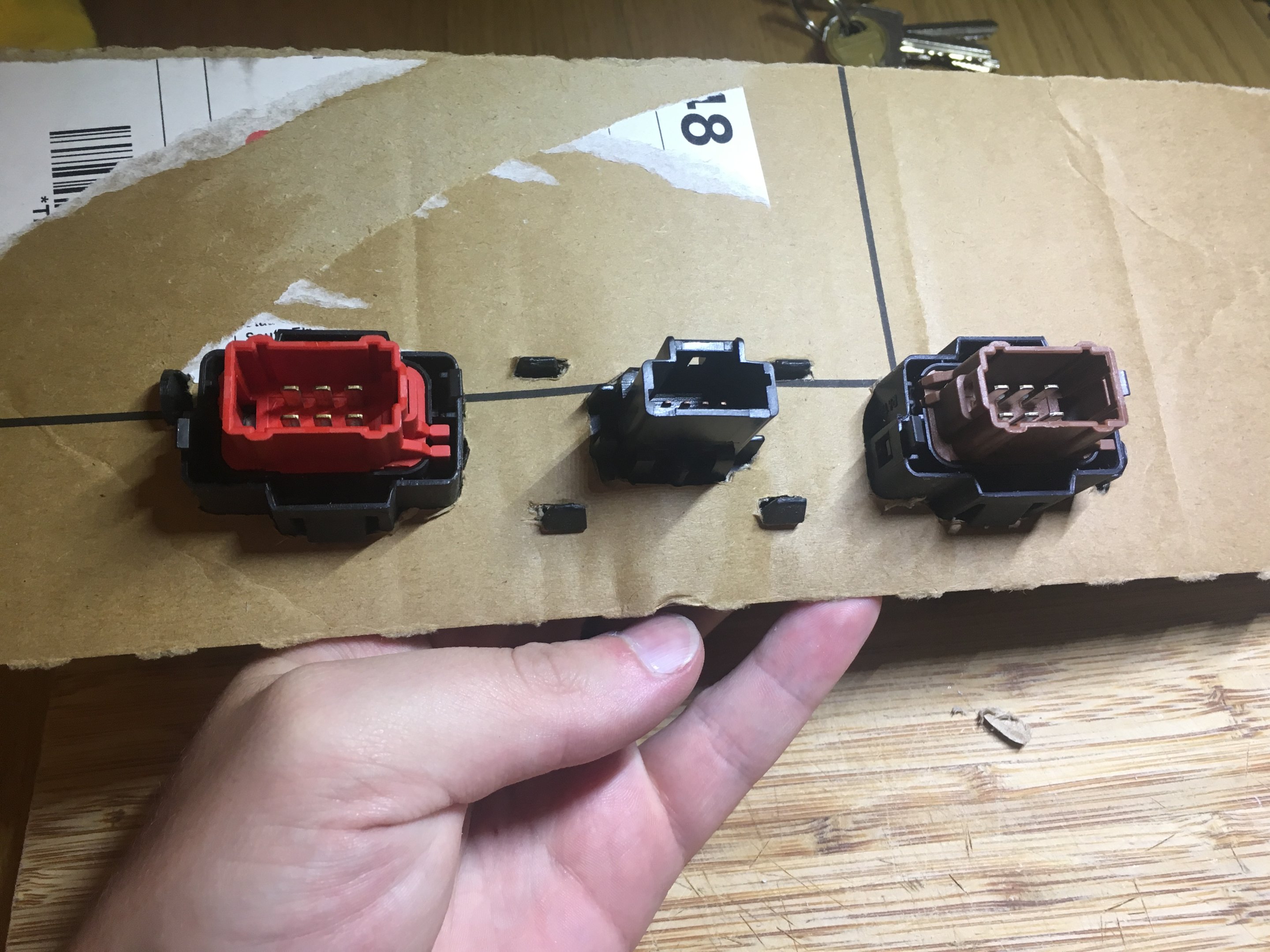

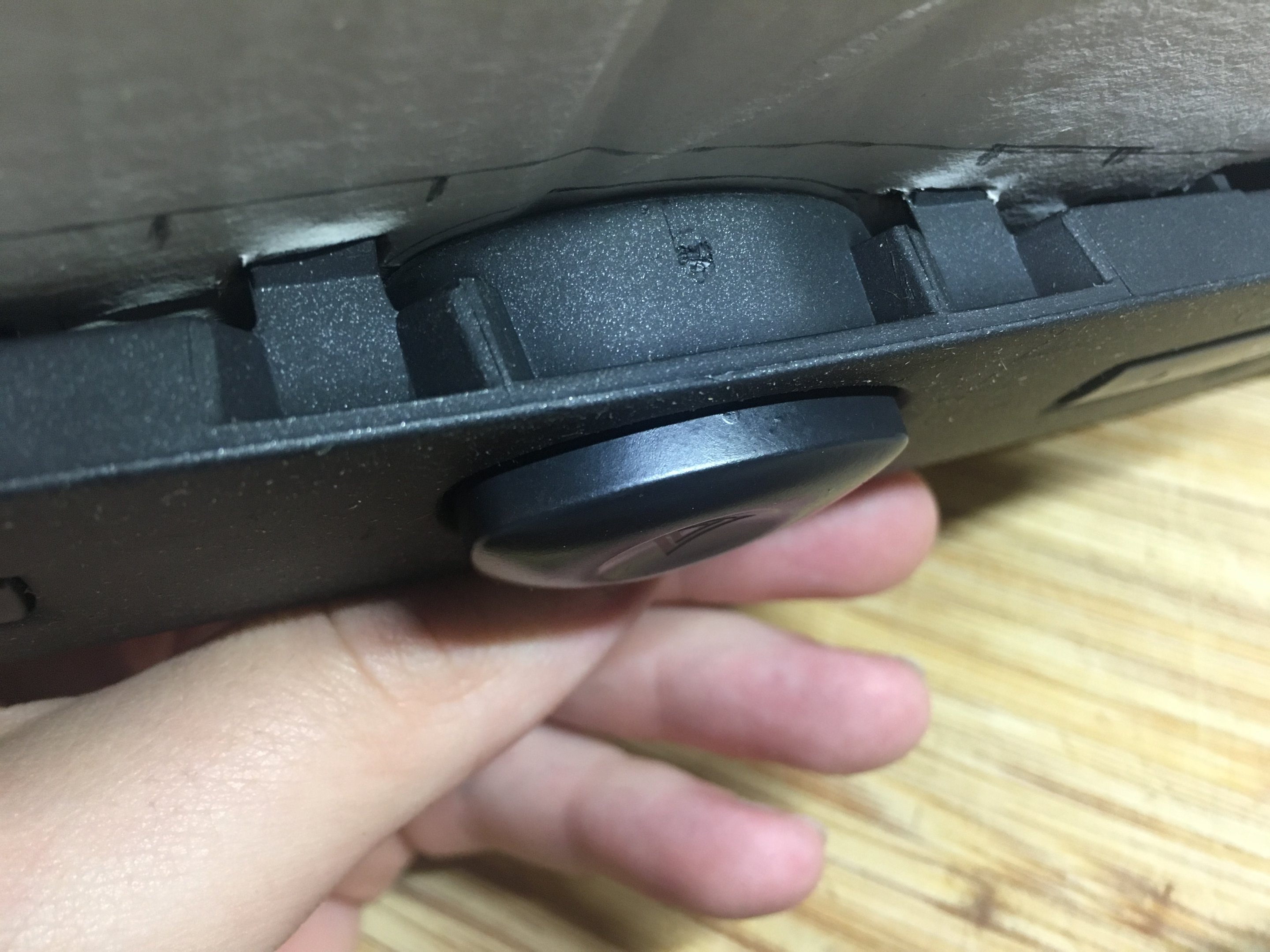

    So firstly, I set about getting the buttons cut out and in place
    I also cut the holes for the clips.
    I cut the holes about 5mm further in as the clips are a push fit and spring themselves back out once in situ.




    It was then time to cut out around the centre button (Hazard switch) as the recess on this was a lot higher up.

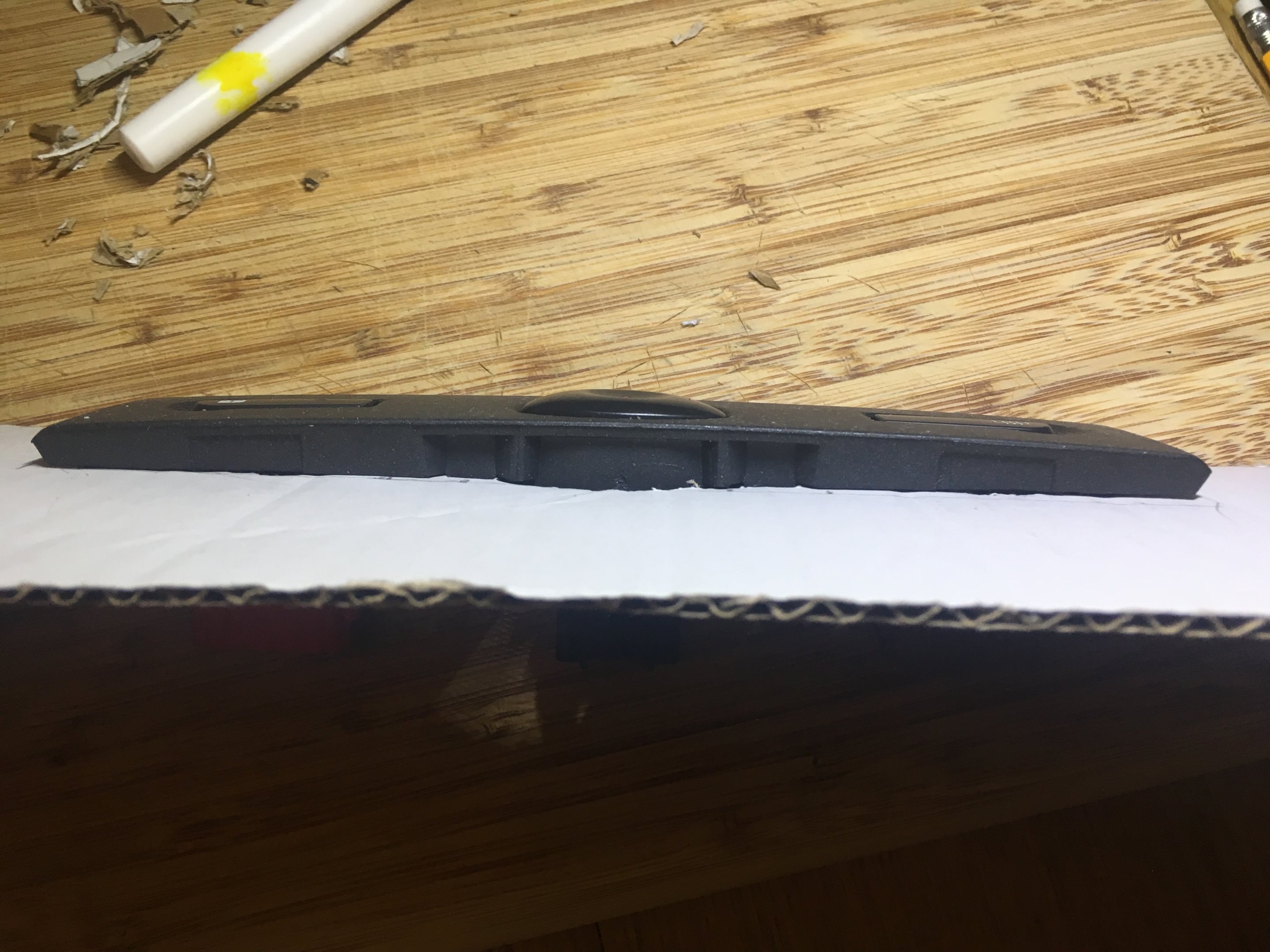

    As you can see below, once I'd cut out the recessed area, the cardboard sat flush.

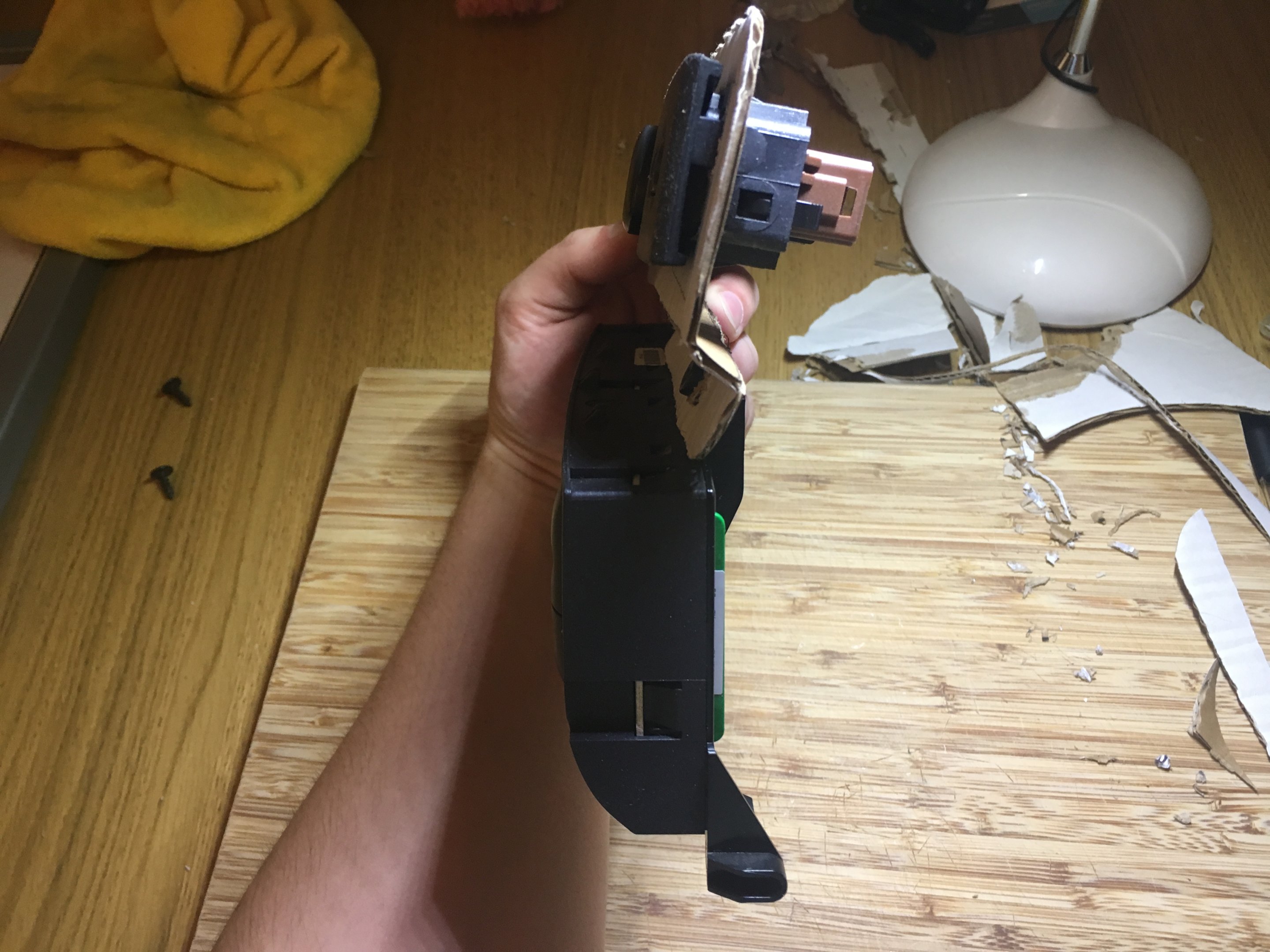

    Once I'd made some alterations, I'd come up with something like this




    Please bare in mind that this isn't a final item :laughing:
    I shall be making a proper version of this soon but out of WHAT??
    Thick plastic? Metal?
    Well, to tell you the truth, I've not decided.
    It'll need to be quite thick for strength and also needs a mounting bracket for support on the centre console.

    Thanks for making it this far...
    it was good fun cutting up cardboard and I'm sure it'll be more fun cutting the real thing

    Also if the car goes a few steps further in the weight loss stages, the A/C and wiring will all come out.
    The same will be said for the heated rear screen (fibreglass item with Perspex :yum:)


    Thanks again all.

    Karlos

    -----
    ---
    -​

    Stuiemc and OssPoop like this.
  26. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172


    -
    ---
    -----

    Just a quick update in terms of finding the car on social media etc... it'll be under

    #ProjectDisaster

    The name has stuck!
    You'll find it under #ProjectShitbox too but this is used quite frequently :tearsofjoy:

    I know what you're all going to think...
    "It's just another bloody clio track project"
    This is very true!
    However, it does have the potential to become a very regular track day car and hopefully next year there will be loads of photos.

    Hopefully, one of you guys will take some pictures of me thrashing it about!
    Maybe you'll even capture my first track day crash :tearsofjoy:
    Hopefully not, but it would be great to see your photos nonetheless!

    :up:

    Thanks again

    -----
    ---
    -​

  27. CZUCZU

    CZUCZU

    Joined:
    Nov 10, 2012
    Messages:
    44
    Location:
    Poland
    Car:
    Clio Williams
    Between body and bumper try to put an spring on catch. Theese mod really help bumper catch to stabilize it

    20vKarlos likes this.
  28. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    Although, there isn't much, if any play in the bonnet I'll give this a try :up:

    Thanks

  29. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    -

    ——

    Evening all, I’ve just got to the unit and it’s freezing!
    So whilst I warm the place up with my trusty electric heater I’ve just unwrapped my replacement column thanks to @Kelv

    It’s been here a week or so but I’ve only just unpacked it.

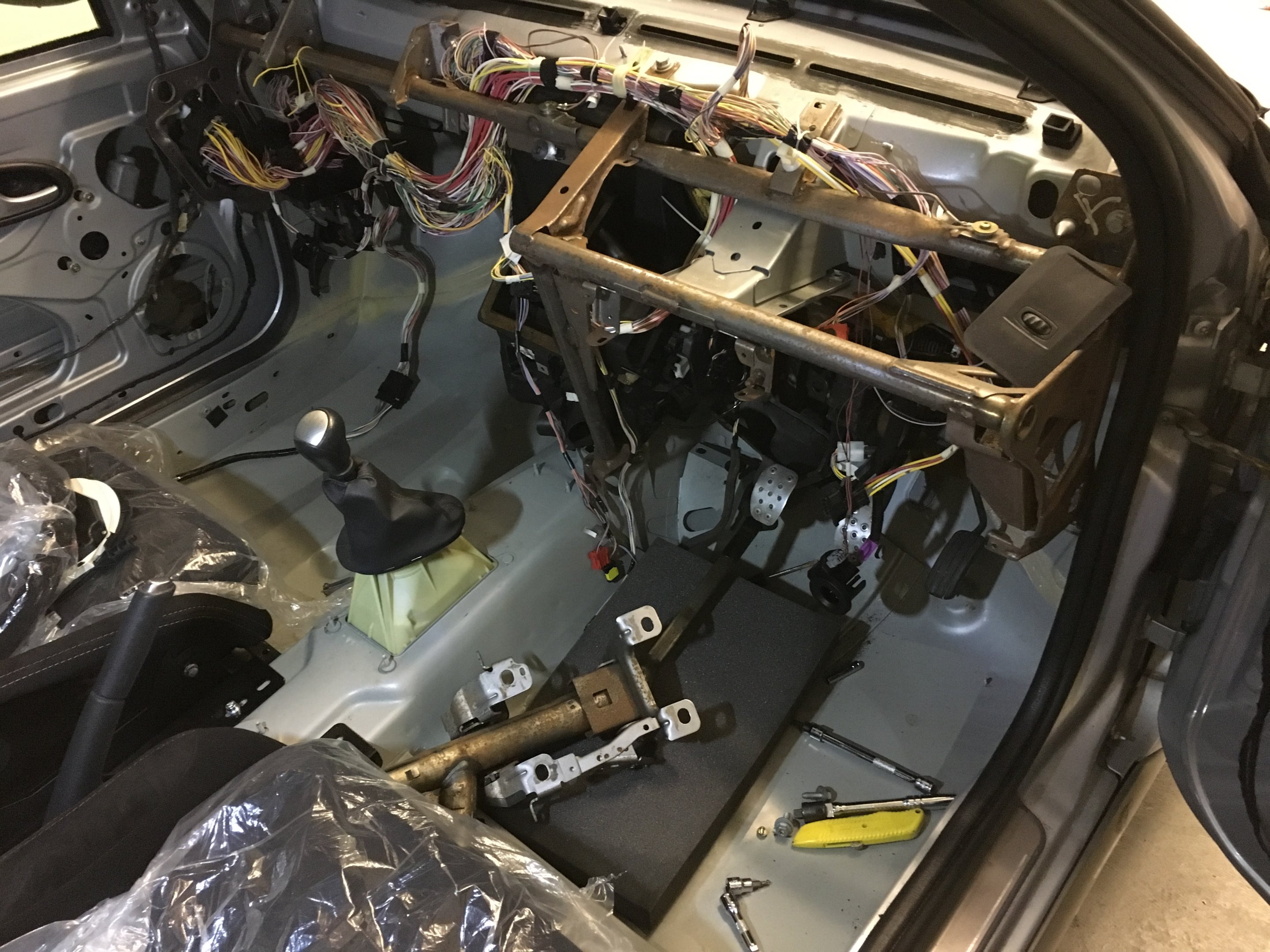

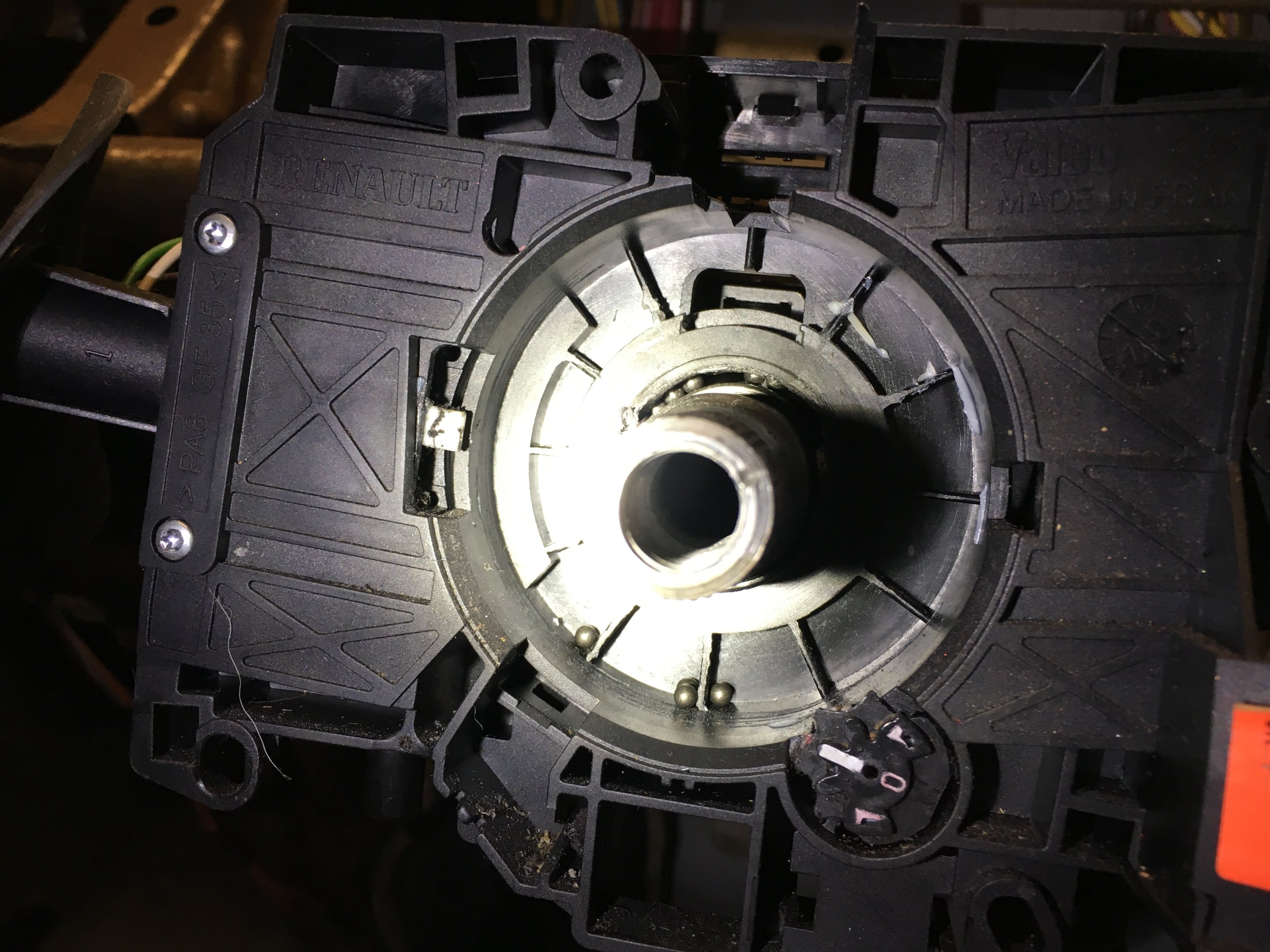

    So all set... with no idea what I’m doing I’m going to try and replace this thing!:monkey: :tearsofjoy:

    Any hints or tips are welcomed

    Wish me luck... I’ll let you know in the morning how things go! :grimacing:

    Karlos
    ——

    -


    Kelv likes this.
  30. Louis'

    Louis' ClioSport Club Member

    Joined:
    Apr 4, 2015
    Messages:
    2,541
    Location:
    York/Huddersfield
    Car:
    BG 182
    Enjoying the updates mate. Those glasses look very safe:tearsofjoy:

    I've given you a follow on instagram

    20vKarlos likes this.
  31. bloke

    bloke ClioSport Club Member

    Joined:
    Nov 24, 2013
    Messages:
    6,473
    Location:
    wirral
    Car:
    dan's cast offs.
    worst part is getting the boot back through the floor.

    20vKarlos likes this.
  32. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    Nice one... I’ll be sure to follow back shortly...
    as for the glasses... I have been to hospital 3 times from metal in my eyes from when underneath cars... I’m not doing it again :tearsofjoy:

    I shall be sure to shout lots at this when I get there then! :grimacing:


    As for this......

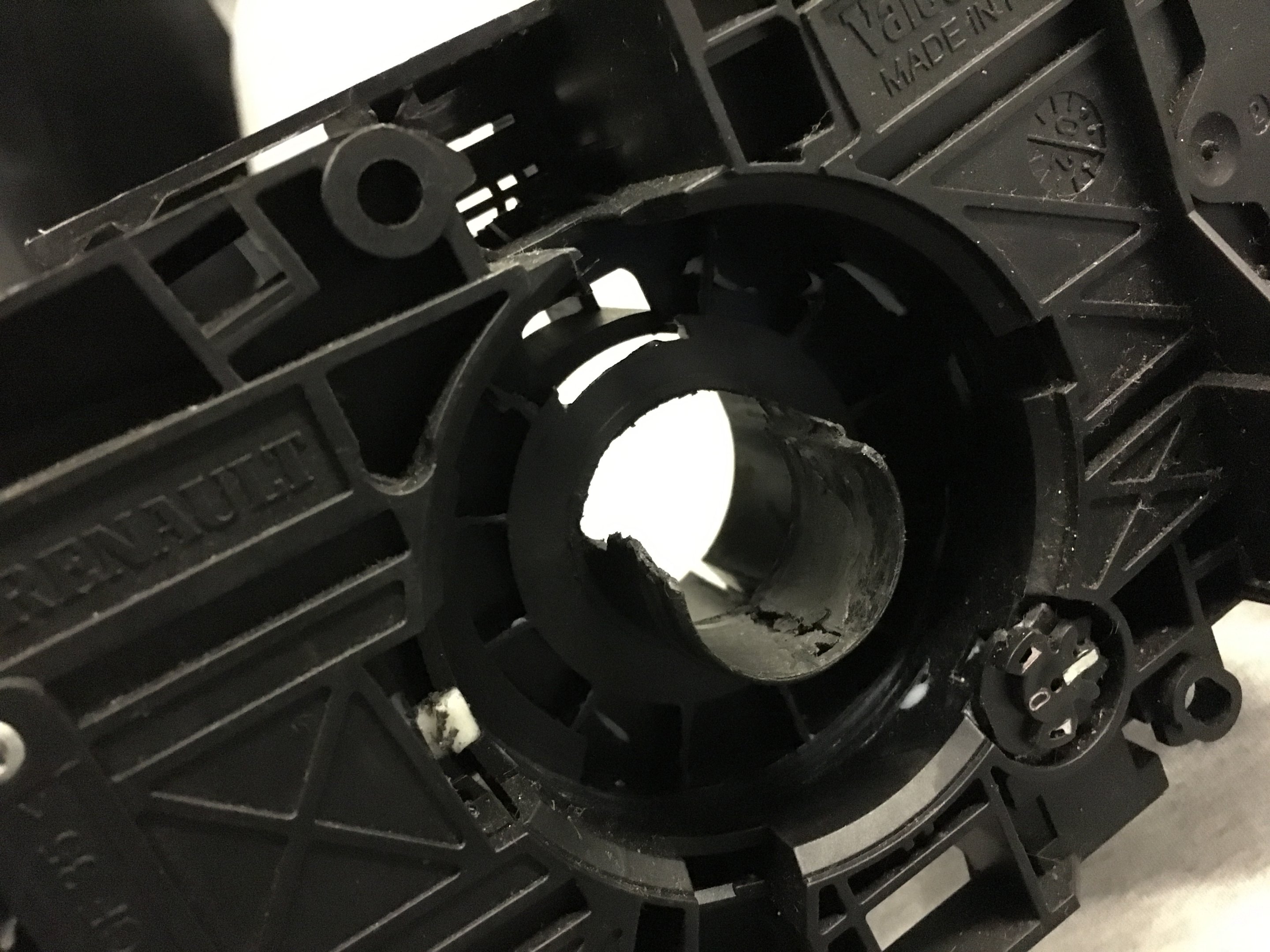

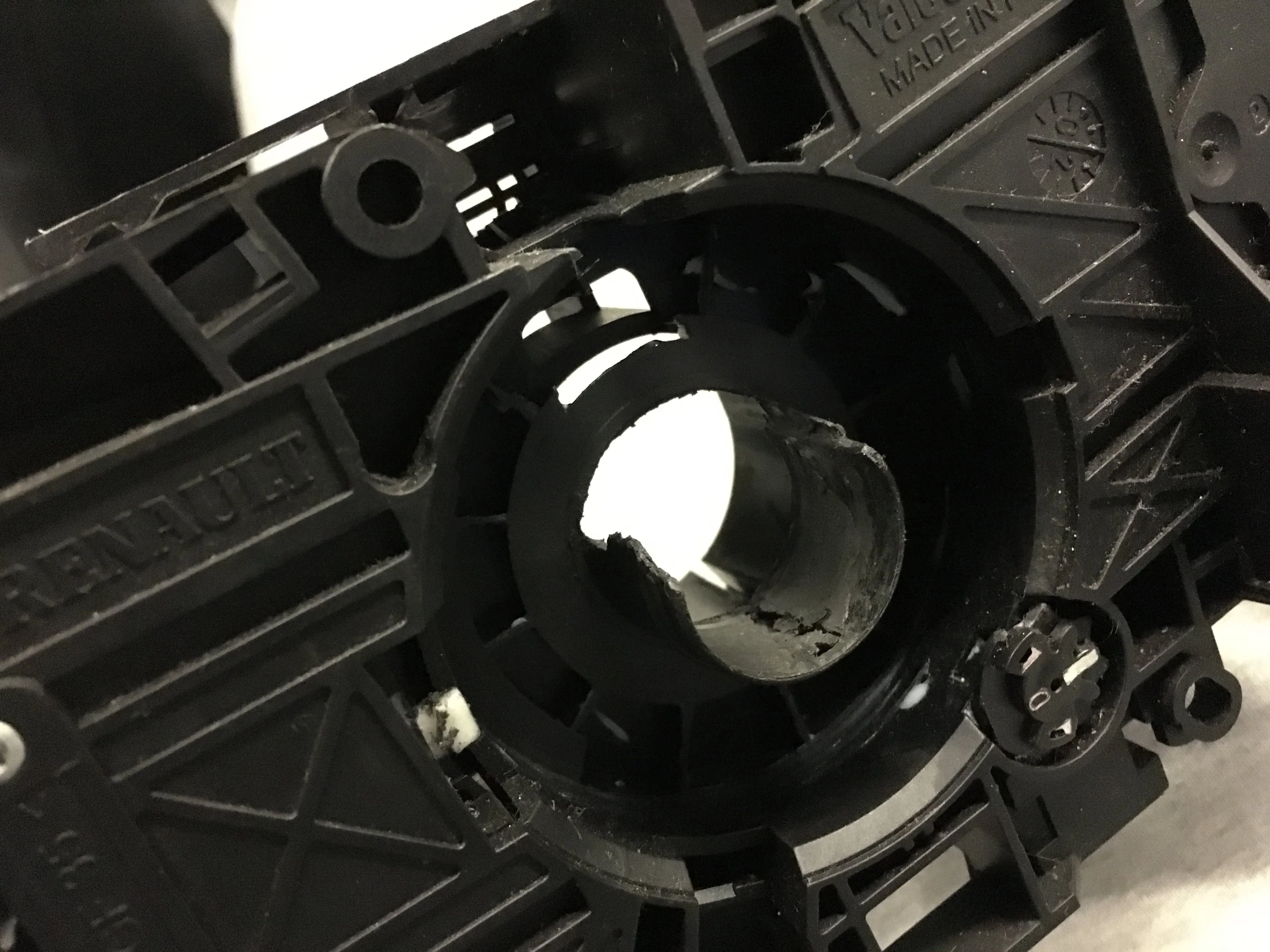

    Does it look broken to you guys?

    I know some electrical parts are missing but it looks broken to me :flushed:

  33. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    -

    ——

    Afternoon all,

    Last night I got the column fitted and it wasn’t as bad as I thought.

    ***************************
    But first...
    I ALMOST DIED!!!
    No sh!t! I jacked the car up on the drivers side and the jack was at roughly 90% extension. The car was well in the air and I stupidly got underneath the car for a quick glimpse at where the access point was for the column link, so that I could put the stands in an appropriate place..

    I was under the car for around 2 minutes searching around, but when you’re not sure what you’re looking for, things take time... I heard a very faint noise and hadn’t thought much of it, but I looked forward towards the bumper and I noticed the car had dropped very slowly and was VERY close to my chest!
    Let’s just say... I GOT OUT QUICKLY

    NEVER GET UNDER A CAR WITHOUT STANDS!!!

    I’m not stupid, but had a stupid moment.
    I know better and there isn’t any justification for my actions... I should’ve had the stand there anyway! I’m just glad I realised what was happening before it was too late.

    ************************

    With the car now on stands, and me having a couple of “Well you’re still alive” biscuits, I got stuck in...

    The job did take ages as I’d never done it before and had no idea what I had to do :monkey:


    Quite simply, on the inside there are 4 torx screws and a 7mm screw that holds the column in place.
    Then a 13mm nut on the outside(engine side) of the car.

    Anyway... with the old one out, it was time for the replacement




    Once I’d got the old column out it was all trial and error from here...

    I tried aligning the link/elbow and putting the pin in but it just wouldn’t work (for me)
    I then figured that if I could get the link/elbow within close proximity of one another or at least sat in line, I could do the rest from the underside.

    So aligned the join and got the four bolts in and tight.
    Then it took bloody ages to get the rubber back through the bulkhead. It wasn’t too difficult, but awkward iwith the pedals in the way and being at a crap angle hanging out of the car :tearsofjoy:


    Access is very tight around the steering components and you end up doing a lot of the work blind as light gets blocked by hands.

    After about 3-4 minutes I’d managed to get the correct angle and popped the links together. SWEET!

    Access is too tight for my hand to get the pin back in place... so I used my brain :monkey:

    Out came the telescopic magnet



    **TIP**
    Once you place the pin into its home with the magnet, push the wheels so it turns the pivot point... this will force the magnet off and keep the pin in place



    Then it’s just the 13mm nutbthst remains.
    Line it up to where access is easy for your long extension setup. Then it’s DONE!



    I left it at this last night and I’ve got very little to reattach but I’ll be sure to post up the finished photos in the next few days

    Thanks all :stig:

    ——

    -

  34. JamesBryan

    JamesBryan ClioSport Club Member

    Joined:
    Feb 12, 2009
    Messages:
    8,094
    Location:
    Warrington
    Car:
    Titanium 182
  35. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172

    This made my chuckle... although it is always funny looking back on stupidity! :tearsofjoy:

  36. bloke

    bloke ClioSport Club Member

    Joined:
    Nov 24, 2013
    Messages:
    6,473
    Location:
    wirral
    Car:
    dan's cast offs.
    Did you swear lots getting the rubber back through the floor??

    20vKarlos likes this.
  37. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    I cheated and had the heater pointed at the rubber for about 5 minutes, then threw it at the hole and it landed correctly!

    DID IT HECK!! :tearsofjoy::tearsofjoy:

    It did take a short while, but I was determined to get it fitted, so once the “Flaps” (ooh err) were through, it was rather easy :up:

  38. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    -

    ——

    Hi all just thought I’d post a quick update.

    I put the steering wheel setup back together last night. Should all be aligned correctly but it’ll get sorted when it goes in for geometry etc.

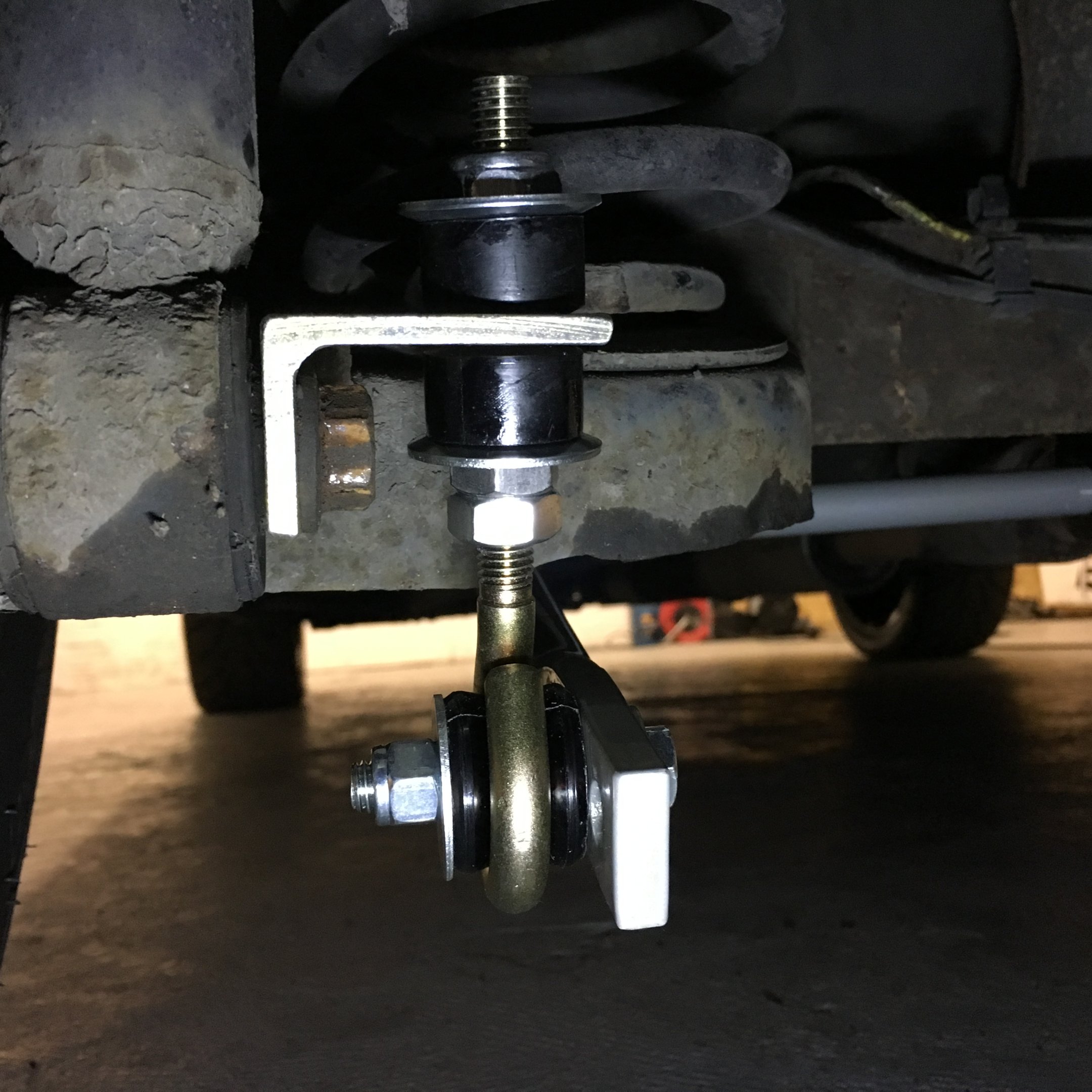

    And I’ve fitted the RARB




    I’ve got a question or two regarding the RARB setup.

    1) - In terms of the threads at the top and bottom, does this look alright? Will it make much difference if I have less threads showing at the bottom? Or less threads at the top?

    2) - I’ve got the ‘U’ clamps symmetric to one another in terms of distance apart, but will it matter if the angles are slightly out?
    (What I mean is the angle of the metal plates is minutely different)

    I don’t think it’ll matter much, but thought I’d ask you lot as most of you have been here before.

    After being under the car again I realised that I’d forgotten to order an exhaust mount... that’s about to be ordered and then it’s pretty much ready to go.

    Thanks all

    Karlos

    ——

    -



  39. JamesBryan

    JamesBryan ClioSport Club Member

    Joined:
    Feb 12, 2009
    Messages:
    8,094
    Location:
    Warrington
    Car:
    Titanium 182
    You want to move those u-bolt clamps more to the outside mate, closer to the spring perch platforms and not over the brake lines :up:

    20vKarlos likes this.
  40. 20vKarlos

    20vKarlos ClioSport Club Member

    Joined:
    Nov 10, 2016
    Messages:
    689
    Location:
    East Sussex
    Car:
    Clio RS172
    Thanks lad

    I’d just followed the “DESTRUCTIONS” and by the picture it looked about right...but I’ll be sure to sort this when I’m next down the unit.

    Thanks again


  • Share This Page
