Mk2 Ph2 Engine Fuse And Relay Key

[bmh.01]

Anyone got one?

I've got problems with it blowing a fuse everytime the AC is switched on, and according to the haynes manual the fuse in question feeds the heater control panel and AC relay. And i've got a clicking relay in the engine fusebox so I need to know what it is.

BrianR posted me one a while ago buts it for the Ph1 and the fusebox is complete different.

Anyone got one for Ph2? Can't find it on dialogys anywhere.



[bmh.01]

bump. anyone? Can't believe no one knows, theres got to be a key somewhere?



[bmh.01]

bump



[Da]

a key? as in a plan of the relays?



[bmh.01]

Yep, a key as to whats what. So i'm not blindly subsituting.



[Da]

can you send me your oval plate info and I'll have a look?



[bmh.01]

Cheers , i'll go and take a pic and pm it you.



[Da]

No probs mate



[bmh.01]

Come up stumps. Anyone else? edde?



[ditz]

i've got autodata on my laptop i'll have a look in a sec



[bmh.01]

i've got autodata on my laptop i'll have a look in a sec

Find anything?



[davebem]

Ive had a look on dialogies, its bloody useless sometimes.



[bmh.01]

I know, I can't believe theres no this relay does this and this one this legend for it.



[Da]

Pull the relay and see what doesn't work?



[bmh.01]

Thats the trouble, I don't want to be blindly pulling relays not knowing what they do.



[edde]

Come up stumps. Anyone else? edde?

Relays and fuses for the Mk2 phase 2 cars
http://www.cliosport.net/forum/showthread.php?t=210217



[bmh.01]

Come up stumps. Anyone else? edde?

Relays and fuses for the Mk2 phase 2 cars
http://www.cliosport.net/forum/showthread.php?t=210217

After the ones in the engine bay, not the UCH mounted ones.



[edde]

Sorry I've got the wiring diagram here I'll have a look in a second



[bmh.01]

Shed light on anything edde?



[TomTom]

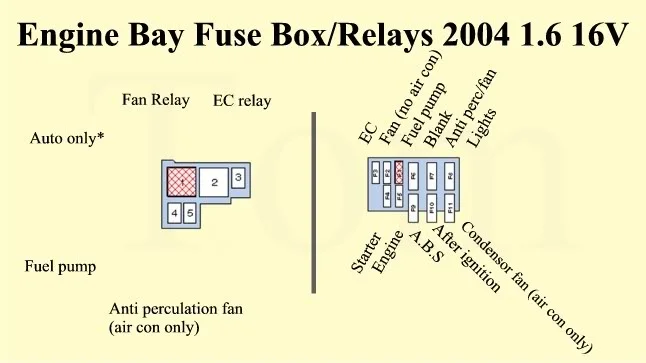

These any help made them up a while back for a mate just uploaded them



[bmh.01]

Thats the info i've already got but my fuse/relay box looks nothing like that :S. Have sorted the problem anyway (crushed wire shorting) but i'm interested anyway.



[TomTom]

Yeah theres the upper one (under the cover) and they'll be a smaller one with the bigger relays usually dangling about underneath



[bmh.01]

This is what i've got.



[edde]

Ok those three black ones on the right (not sure in which order since its a non-normal wiring that)
Fan low speed with air con
Starter
Injectors locking

There all 20Amp but as said not sure which order unplug the top one if the car doesn't start then thats the injectros the next is starter and then fan else its the other way round.

The purple one is the cold air blower.

The other two brown ones are both 40amp ones one does the fuel pump the other for fans not sure whcih ones its eaither for interier fans or engine coolent fans.



[bmh.01]

The first black one is the injectors because as you said it won't start with that one out.

Non-standard wiring eh? Good old renault strikes again I guess. Can't remember what my old 1.2 looked like, thought it was similar to that.



[edde]

Non-standard wiring eh? Good old renault strikes again I guess. Can't remember what my old 1.2 looked like, thought it was similar to that.

The 1.2 will look like that but thats becasue they don't use a slightly different wiring setup.



[bmh.01]

So this one shouldn't have that setup then?



[edde]

So this one shouldn't have that setup then?

Cannot say for sure all the 1.6 16V I know have air con systems your's doesn't does it which is wierd.
