pic request cup altternator set

[wilky19]

ive had a search and can't seem to see a pic of a cup aux set up on a f4r lump.(out of bay)

has any one got a pic so i can see if it will fit in a mk1 bay.

also how is it tensioned? is like the mk1 with an adjustable tensioning pulley or like a standard 172 set up with a auto tensioner



[sideways danny]

I'm going to try it in my mk1 bay in the next week or so when time allows (on F7R)

the tensioning is done by movement of the alternator. it's pulled up on a screw thread then clamped off with a bolt on the adjuster and the pivot



[wilky19]

right so it tensions like a non pas set up if you get what i mean.

is the pas above the alternator like a valver set up

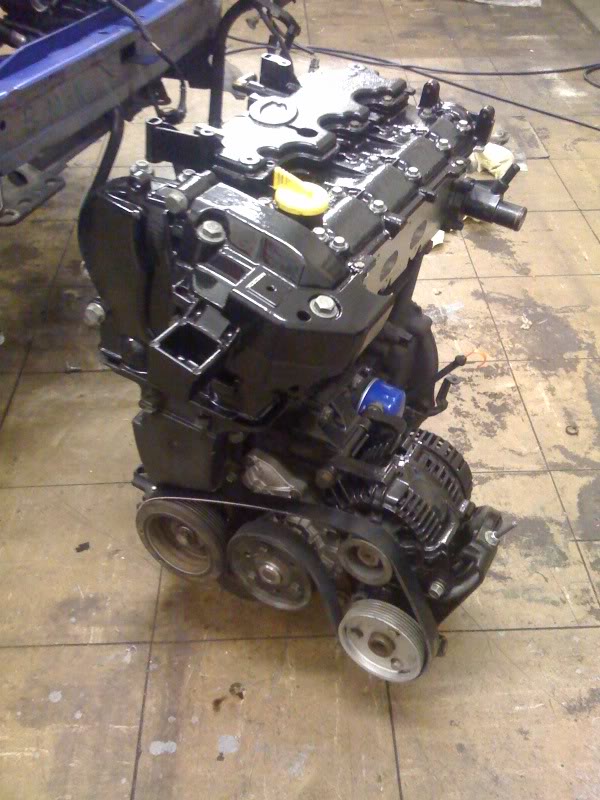

edit think i found a pic of one

is this a cup setup



[sideways danny]

if you've seen the volvo setup, then you know how the cup setup works. It's just a cast aluminium version of the bracket that's a lot bigger and bolts to the front of the block rather than just the end/side



[wilky19]

ah ok

is the pic above a pic of the cup set up? if so i dont reckon it will fit in a mk1 bay, the pump looks to be close to the where the subframe mounts.



[sideways danny]

it is

that belt is fitted wrong though

i'm certain it wont fit with the PAS pump on, it doesn't with the volvo brackets



[wilky19]

right i was looking for an alternative to the valver set up for the pas. but if it wont fit ill have to look for another solution.



[sideways danny]

if you want to keep PAS, i recon the valver bracketry is your best bet
