Phase 1 172 engine wiring loom assistance required



  R5 GTT
As per title I am in the progress of placing a 172 lump into my R5 GTT but need a little assistance to what is what on the loom

If I post some pics can someone please add arrows to what cable is what.

Many thanks James





  R5 GTT
can you take a picture of the whole thing layed out


That is the best pics I can get they where taken side by side:eek:

The top pic with the big white connector I take it the main loom connection which then connects to another loom that goes into the car? Don' suppose anyone knows what each pin on this connection is??

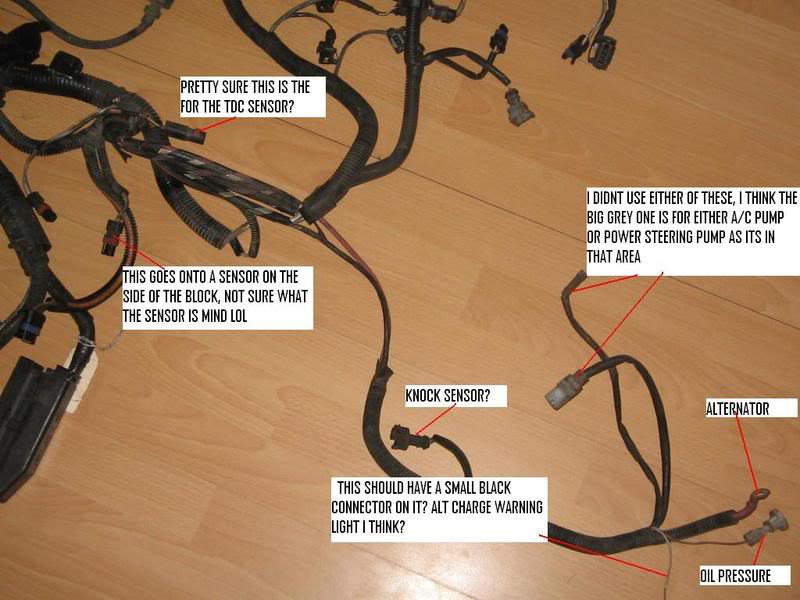

  Some of a Clio 1.8 16v

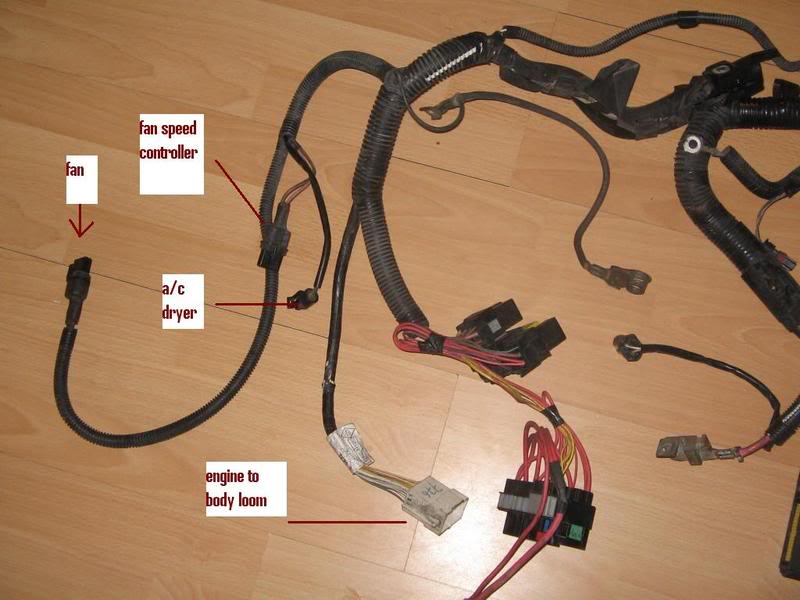

first one, sorry about the quality, if you want i'll take a look at the rest after dinner


  Lots of Alfas

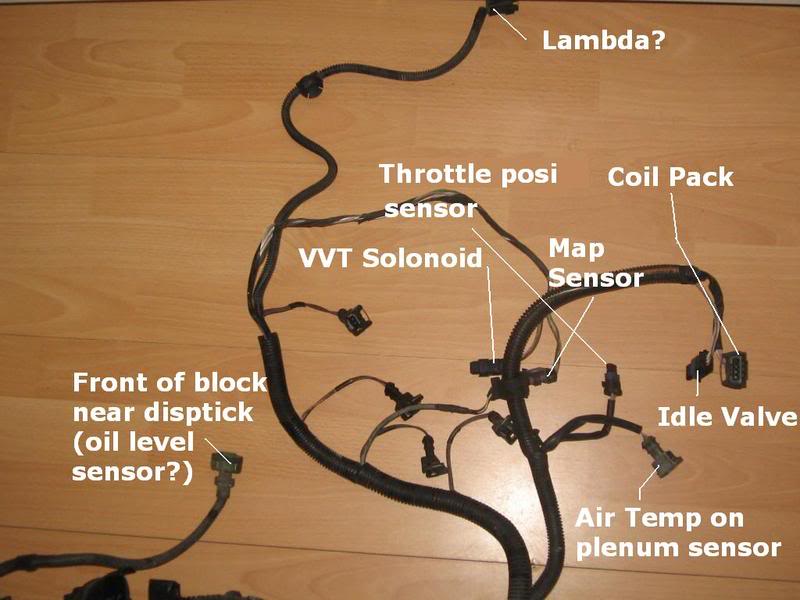

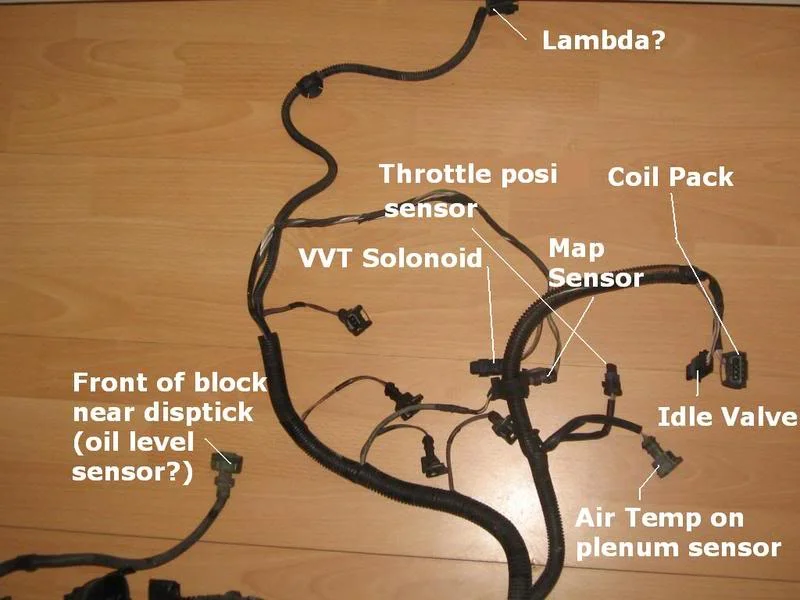

These are off the top of my head, I may be able to do the others after having a look.


  F4R'd ITB'd '92 cup racer
to be honest mate once you lay the loom out and route it in the engine bay its pretty clear where each connector goes as most of them will only fit (and reach) into one sensor

oh and on davebem's pic, the four black connectors are for the injectors, if you didnt know :)
