Fabricators need your advice

[Usr117063]

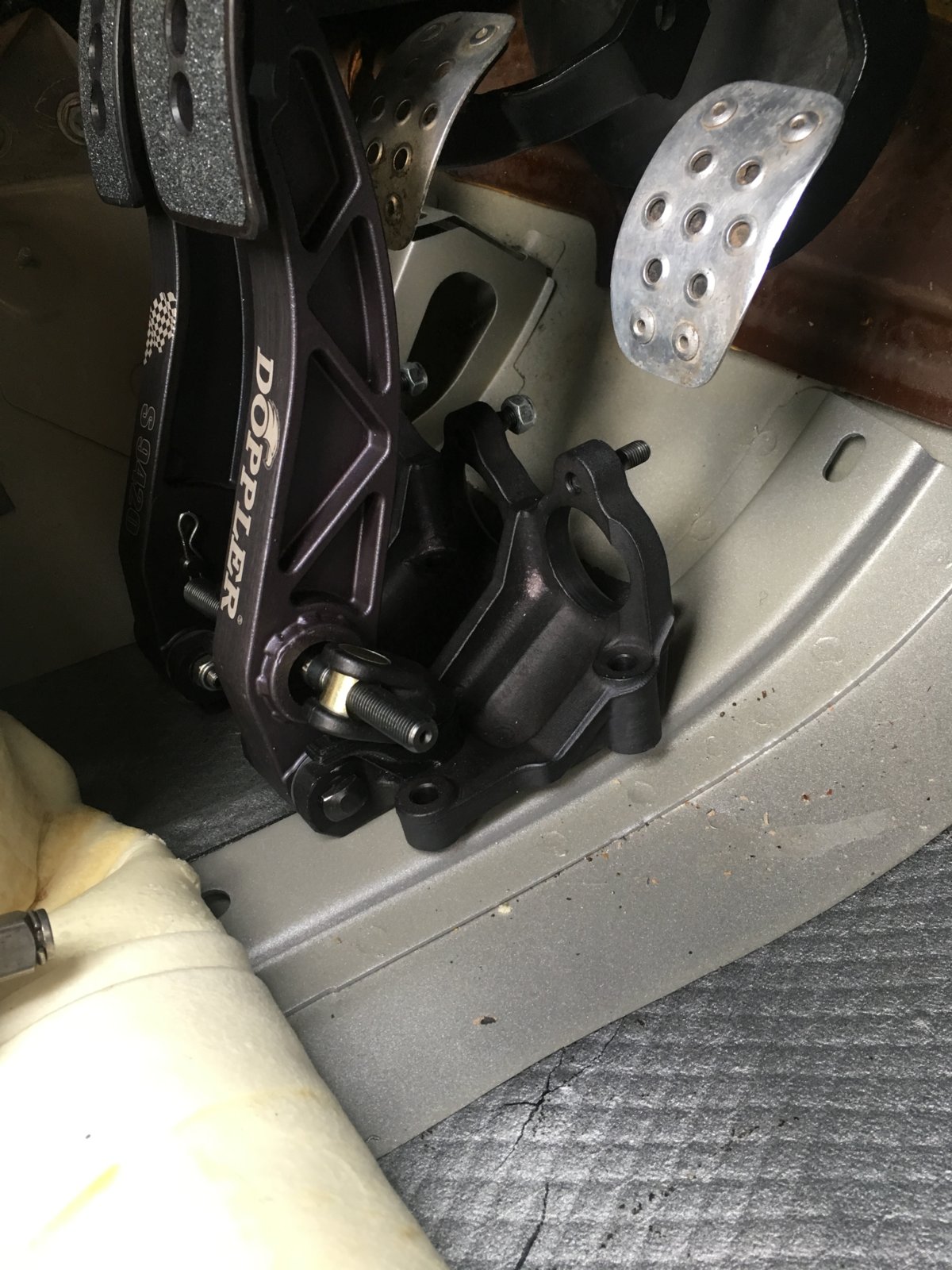

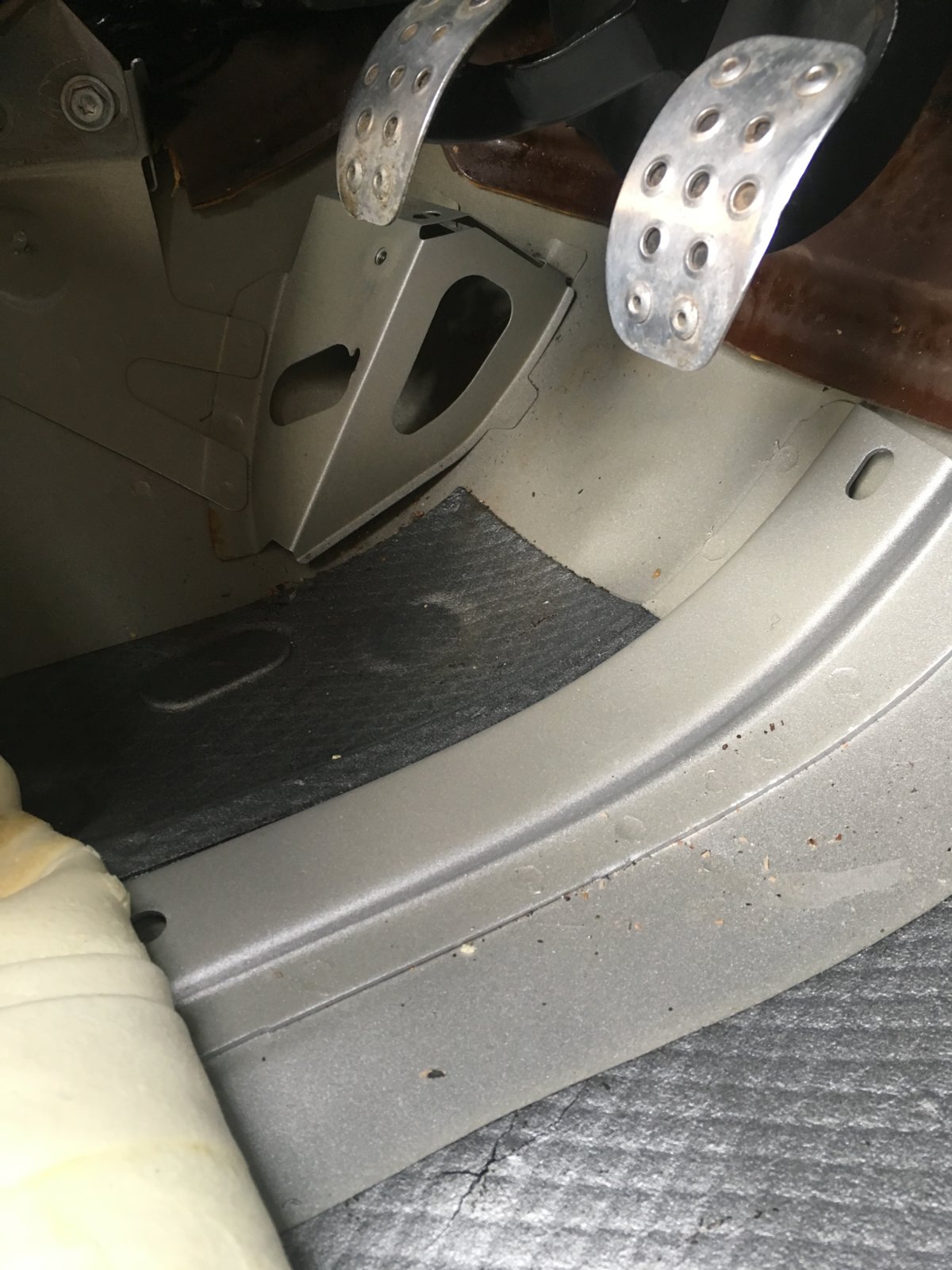

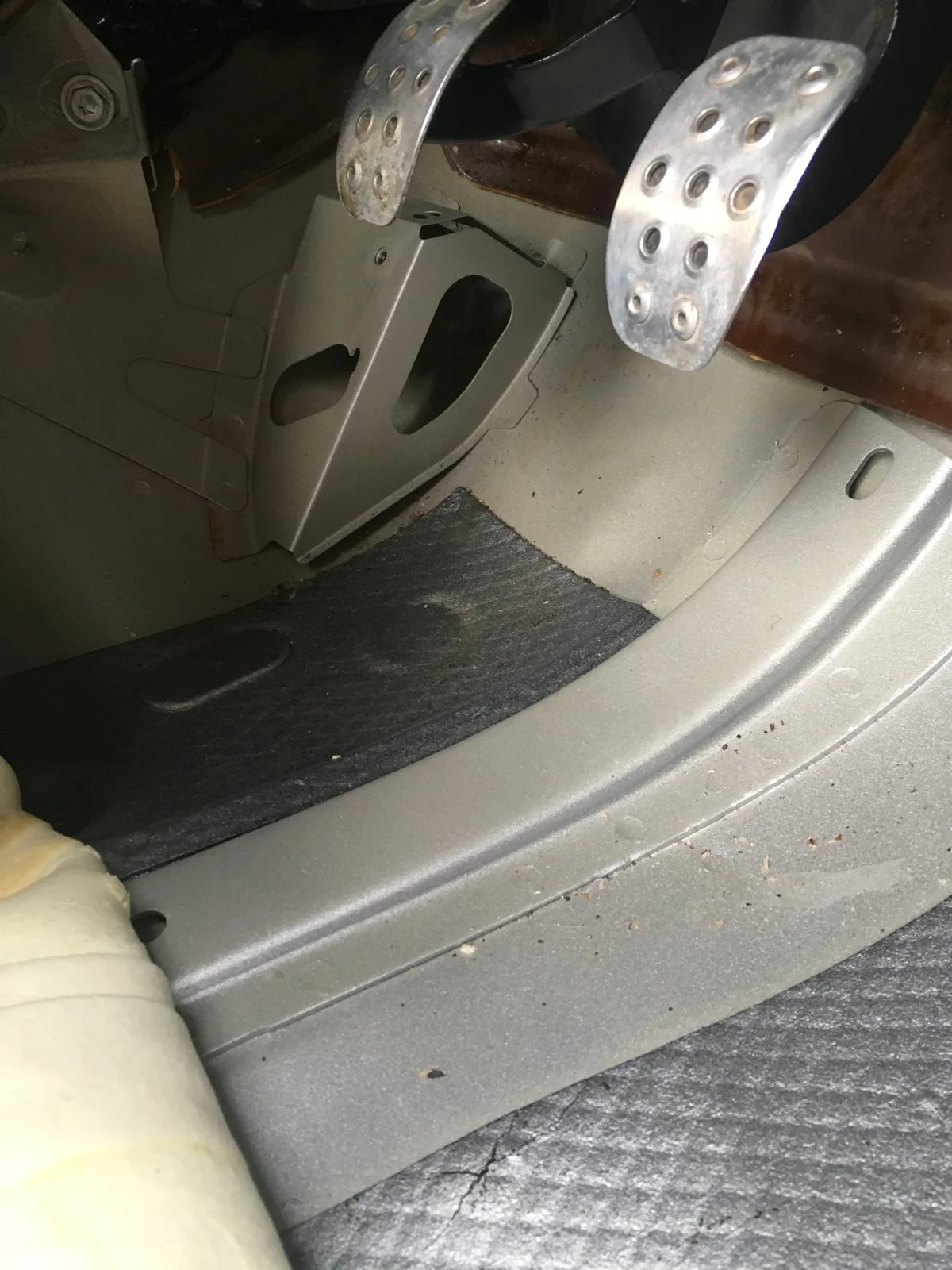

What type of sheet metal would you use as a plate for the pedals? 3mm alluminium? Also any ideas how to get the plate flat that wouldnt need welding? Just thinking I could do this all at home without one. Mild steel spacers fastened down with rivnuts?? Or would that not be strong enough



[massiveCoRbyn]

You'll be putting a lot of load through the pedals, so the mounting needs to be strong. Could you weld some bosses to the floor to bolt into? You could use those to set the pedals level at the same time. You may still find the floor bends a little. I'm not sure how stiff the floor is there really.



[Jaff.]

3mm Ali should be fine, maybe go up to 5mm or simple the 3mm

I’d bend some Ali to give it flanges and rub but and boot through personally



[Usr117063]

Ive ordered some 5mm sheet. I need to learn to weld dont I



[Usr117063]

Im thinking it could be bolted to the floor with spacers, use say 3 at the front and a couple back, as the force pushing the pedals the front will take all the hit.

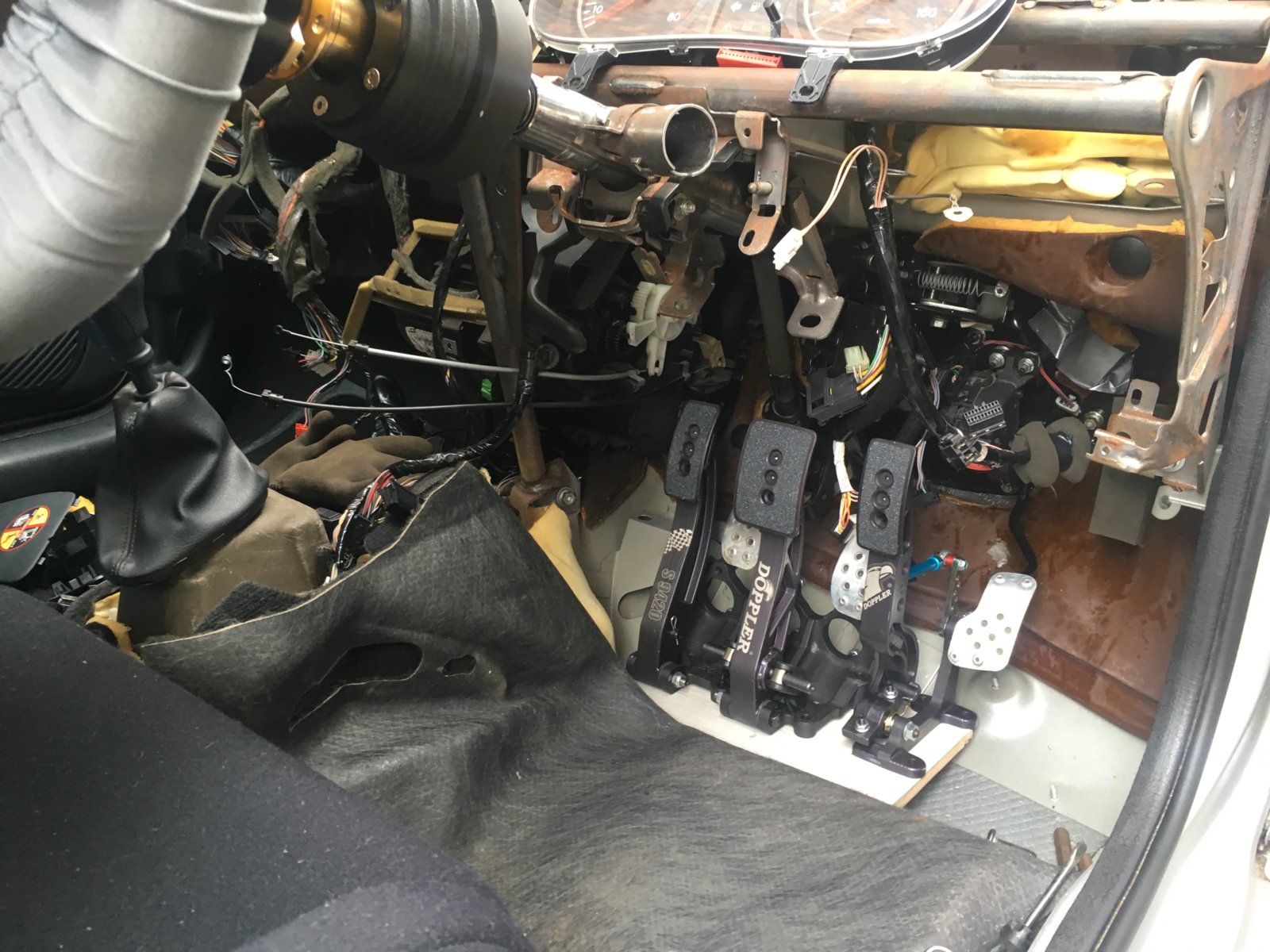

Also floorboard being used right now sheet on order ?



[Slamz]

You need a spreader of some description to distribute the force on the bolts or it'll tear itself out of the floor. I'd be welding, or getting someone to weld in, something like 2-3mm steel sheet to ensure it's strong enough instead of messing around with Ali sheet and spacers.



[Andy_con]

agreed with above, not sure id use ally sheet



[Usr117063]

@Slamz Appreciate it. Just to clarify what i mean by spacers are something like this https://www.ebay.co.uk/itm/Bright-M...hash=item43e13f69ce:m:mPj_wyZYSp7172w0Pif7ZXA
Surely 50mm is enough area to distribute the weight? How much force would have to go through the brake pedal to rip the whole thing out? Just thought this was a solid solution but if welding is required Ill have to tax the car and leave it for someone to do



[Slamz]

Honestly, I'm not sure how much force would be required and I'm not smart enough to calculate it. I'm going off my experiences fitting cages, and how floppy car floors are when exposed to forces outside of their 'normal' ones. Also seeing how far bulkheads flex under braking on some cars also shows the force your legs can exert, and that's on vehicles with servo assisted brakes.
Every car I've seen with floor mounted pedals have them mounted on a flat, reinforced, plate, which is why that's how I would do it.



[massiveCoRbyn]

Yeah I'm of the same view as @Slamz really. I've tried to find some pictures online, but struggling a bit.



[haimsey]

I’d be thinking along the lines of the boxes that are welded in for the feet on rollcages.
Maybe stitch weld a sheet/strips to the floor first, then a box with captive nuts over the top.
Beauty of that is you could have a line of captive nuts to allow you to move the pedals forwards or backwards in the future
