Cd radio satnav replacement

[Paulyboy]

Hi,looking for some help,similar topic but not quite.
So my daughters started working some distance from home 100 mile round trip.
Bought an aftermarket Pioneer cd radio Bluetooth.
Connect 2 cable didn’t work, connect totally us regards helping me, closed my call twice.
Halfords not much better said I need to run a cable from fusebox to radio, but above my knowledge.

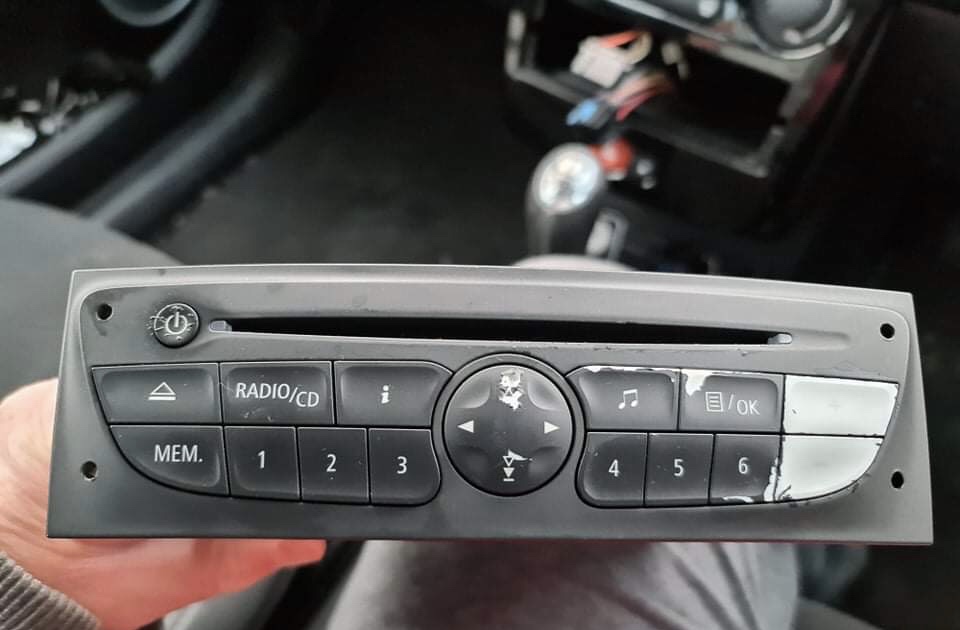

So thought I can put a more modern unit in with Bluetooth.

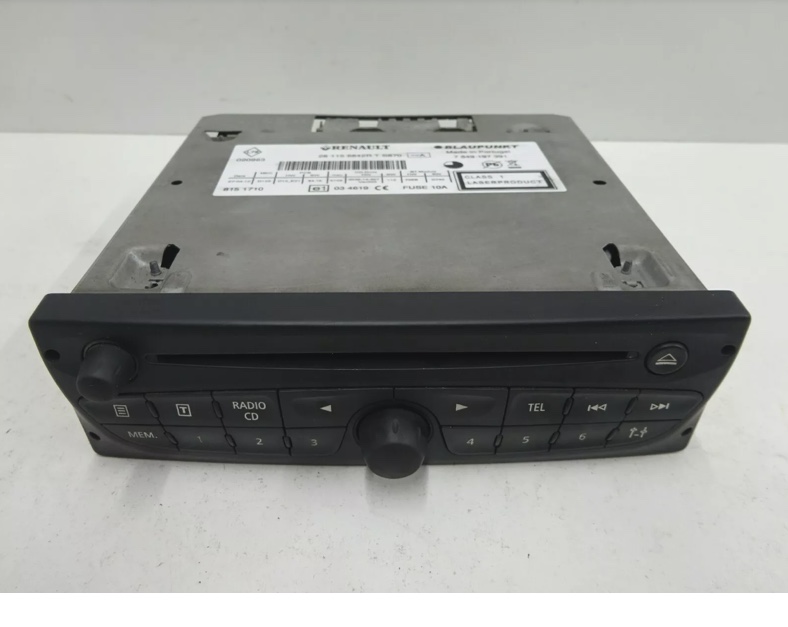

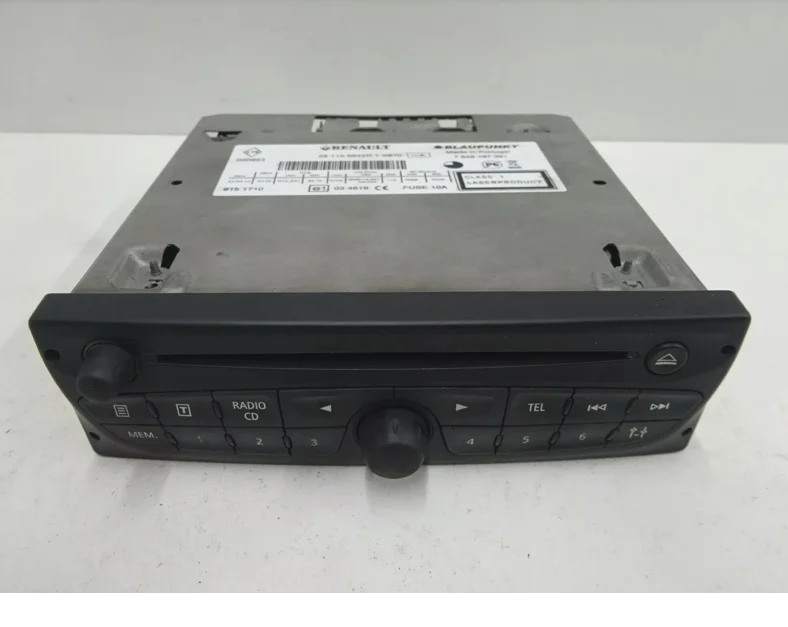

Found this, but need to find a code, anyone know where to look?
Thanks folks
PC



[trickstargee]

Isnt the connect2 just for the stalk/steering wheel control?

Whats the issue with the Pioneer radio? I ran a Sony Bluetooth un)!it with no issues at all (no connects2 either)

Theres a couple on ebay with a code that looks the same model as youve pictured?



[SharpyClio]

Using an after market unit should be really easy, even the connects2 cables are straight forward (as mentioned this is only for the stalk controls to work and there is an additional patch lead and some jiggery pokery required to get it working). However just putting in a new unit should be plug and play, no extra cables required.



[Paulyboy]

The Clio cables aren’t compatible with the Pioneer, the Connect 2 cables are meant to join the clio cable to the Pioneer, you buy an extra Connect 2 cable to use with the remote hand controls.
Neither worked.
Pioneer wouldn’t switch on, no power!
Thanks though.



[SharpyClio]

That's odd as the stereo will have a standard loom, they were all standardised years ago as manufacturers were coming up with all sorts of random wiring looms. I find it odd that it doesn't work. I'd be interested to know why if you manage to find out.

Im assuming you know that sometimes you need to swap the red and yellow cables over and also sometimes they need to be plugged into the same plug to get them to work? The looms you get with the stereo are normally setup to allow you to move these about as that is something can differ between cars and stereos.



[Paulyboy]

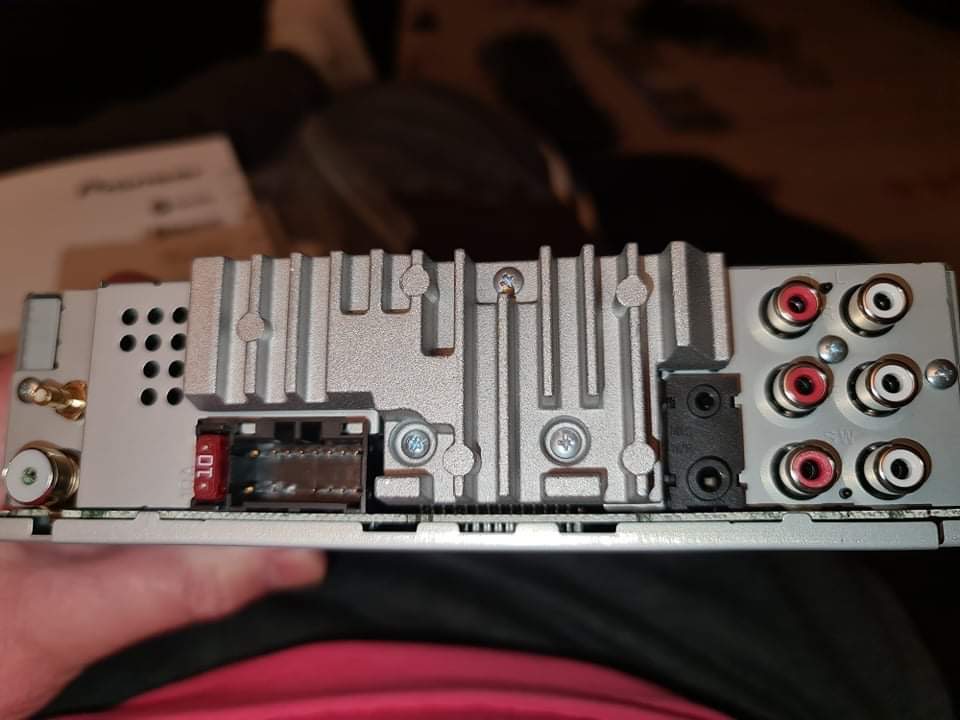

I have zero cable knowledge, the cables are totally different into the pioneer bud.



[SharpyClio]

I have zero cable knowledge, the cables are totally different into the pioneer bud.

So with the pioneer there should be another set of cables that the clio loom plugs into that converts the loom to the pioneer wiring, all plug and play. One sec and I'll dig out a photo.



[TheBandit]

So with the pioneer there should be another set of cables that the clio loom plugs into that converts the loom to the pioneer wiring, all plug and play. One sec and I'll dig out a photo.

Looks like you need and ISO to 16 pin connecter, if @SharpyClio can grab an image for you it should make more sense



[SharpyClio]

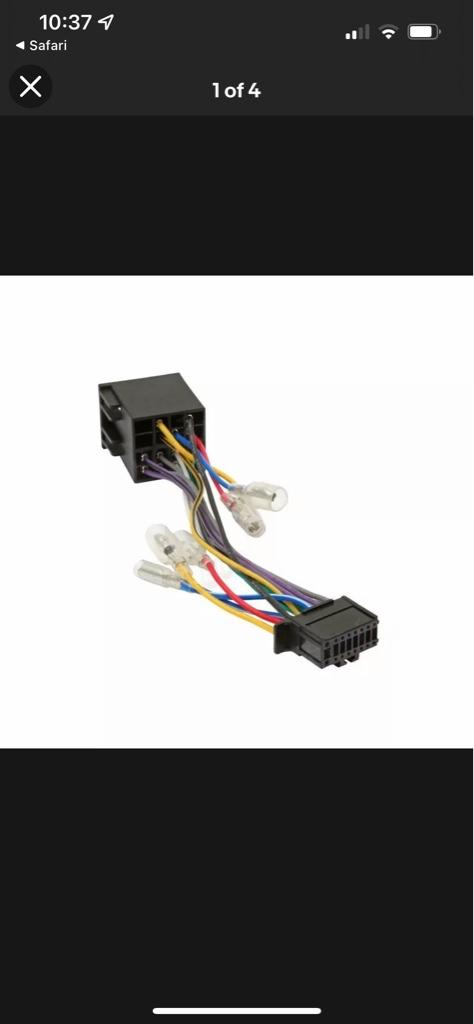

Something like this…

Sent from my iPhone using Tapatalk



[SharpyClio]

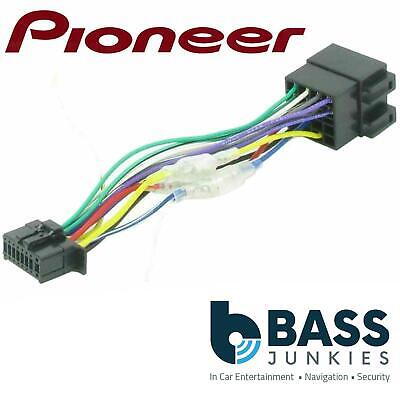

This should be the right one for that pioneer

PIONEER DEH-X7800DAB Model Car Radio Stereo 16 Pin Wiring Harness Loom ISO Lead | eBay

PIONEER 2010 Onward Model Car Radio Stereo Models with 16 Pin Wiring Harness Loom ISO Lead Connection. The picture is for illustration purposes only and the colour configuartion and style of the plug may vary.

www.ebay.co.uk

Sent from my iPhone using Tapatalk



[R3k1355]

If you don't know what you're doing why haven't you taken the car to a car audio place and has them install the stereo properly?



[Paulyboy]

Because they wanted £165!! I paid £98/for the Pioneer unit.
That’s just a rip off.
I can sell the Pioneer and buy an older Clio Tom Tom unit for£30
I might not be great electrical wise but I’m no mug mate.
That’s a rip off.



[Paulyboy]

But thanks for your helpful advice ! 😈😂😂



[trickstargee]

Back to the original question re where to look for a code for the replacement oem headunit, ive used services off of ebay, just message them first to see if they can decode that particular model.

Search 'renault radio decode'



[Paulyboy]

PIONEER DEH-X7800DAB Model Car Radio Stereo 16 Pin Wiring Harness Loom ISO Lead | eBay

PIONEER 2010 Onward Model Car Radio Stereo Models with 16 Pin Wiring Harness Loom ISO Lead Connection. The picture is for illustration purposes only and the colour configuartion and style of the plug may vary.

www.ebay.co.uk

Thanks Sharpy, it’s not unlike the cable I got for the Pioneer.

Except I’d does zilch! 😳🤷‍♂️.



[Paulyboy]

Thanks Trick,cheers mate,I’m a welder and fabricator, can do most things, wiring a bit more complex to my mind.
Hence you helpful guys…..well most of you! 😳😈😈😂😂



[SharpyClio]

PIONEER DEH-X7800DAB Model Car Radio Stereo 16 Pin Wiring Harness Loom ISO Lead | eBay

PIONEER 2010 Onward Model Car Radio Stereo Models with 16 Pin Wiring Harness Loom ISO Lead Connection. The picture is for illustration purposes only and the colour configuartion and style of the plug may vary.

www.ebay.co.uk

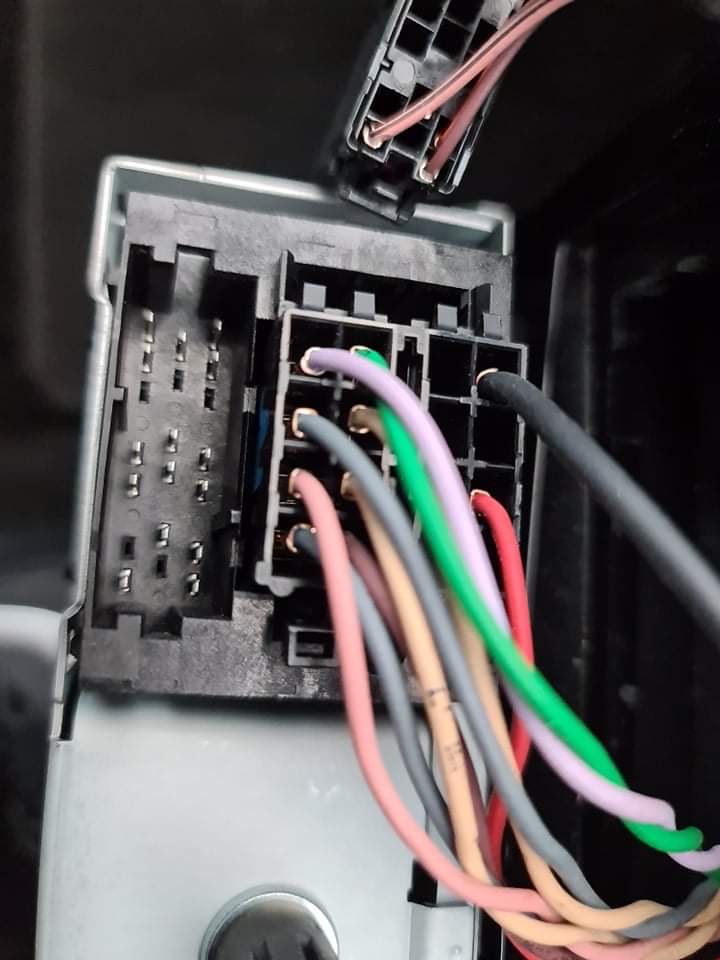

Except I’d does zilch! 😳🤷‍♂️.

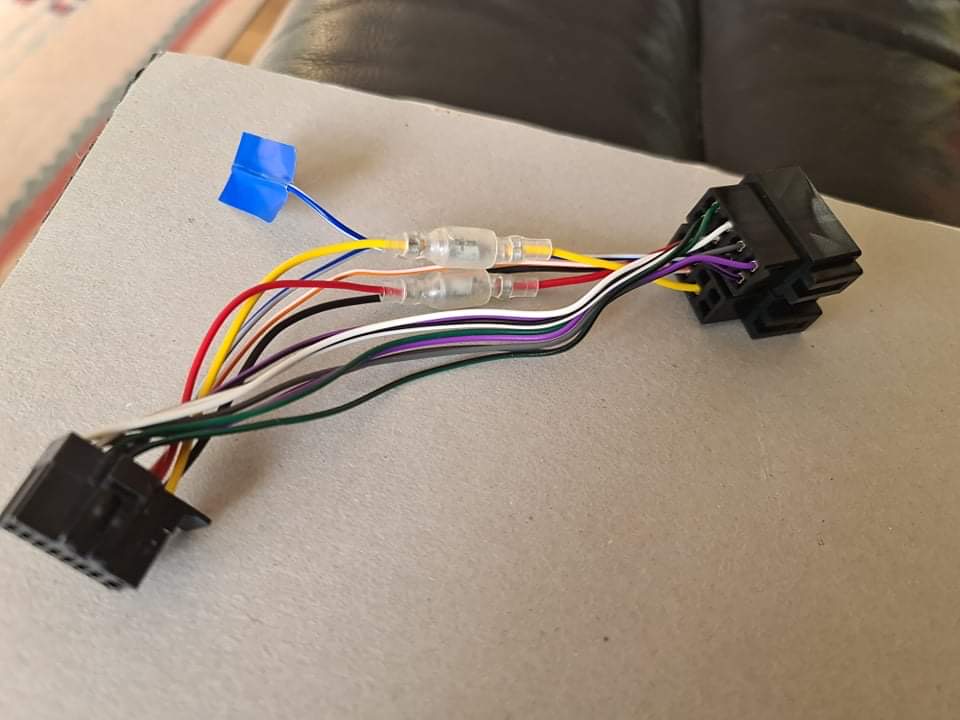

View attachment 1578320

Thats odd, the only other thing I would try is swapping the yellow and red bullets over, one is the permanent live the other the switched live, that varies from brand to brand hence they are bulleted.

Also worth checking the small fuse just in case.

Thats if you want to have another bash, £165 for fitting does seem a lot for what should be a simple swap over. I've been installing audio (as a hobby and with / for friends) since before I could drive, its very rare a head unit swap requires any sort of "new wiring".



[Paulyboy]

Cheers sharpy I’ll give it a bash.
My mates a sparky and would be able to find the live at least.
He’s clueless with cars though….he bought a Chrysler PT Cruiser! 😳😳🤢🤢,enough said?



[Paulyboy]

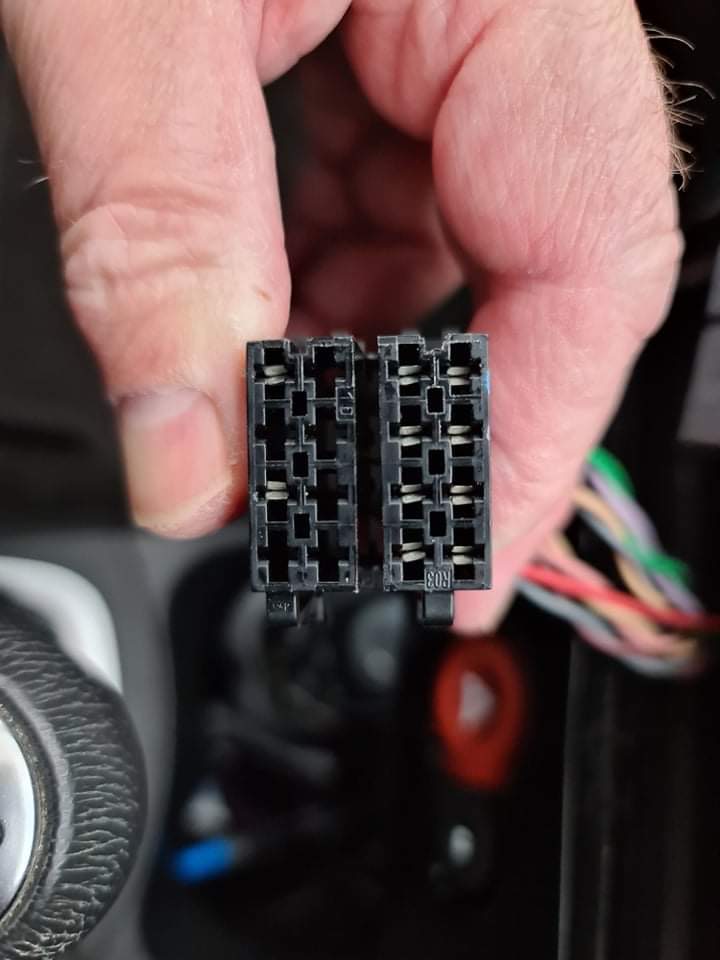

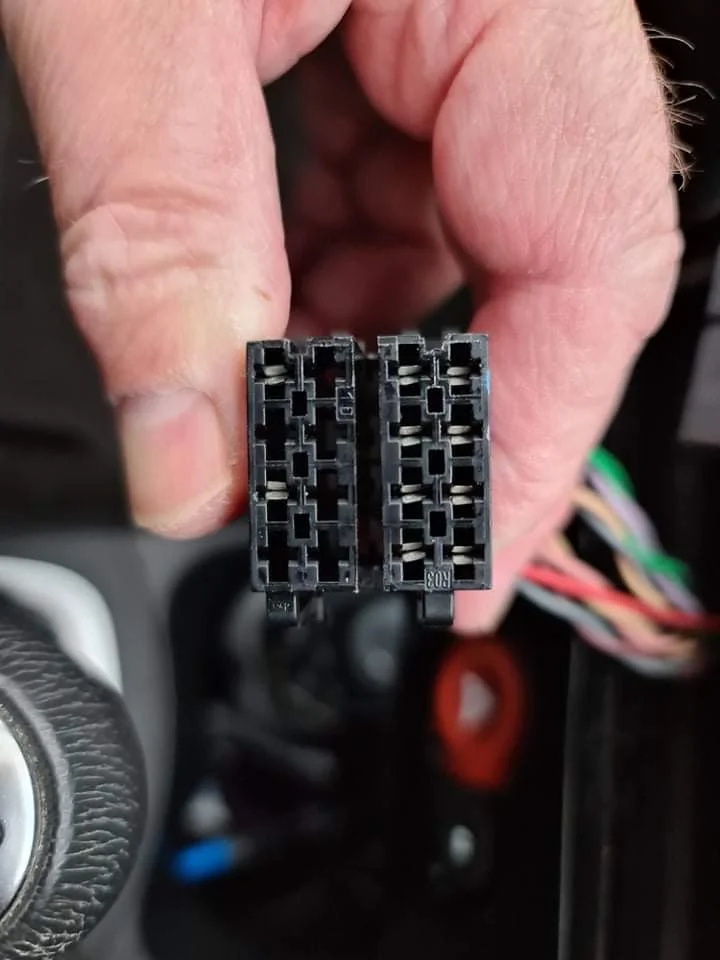

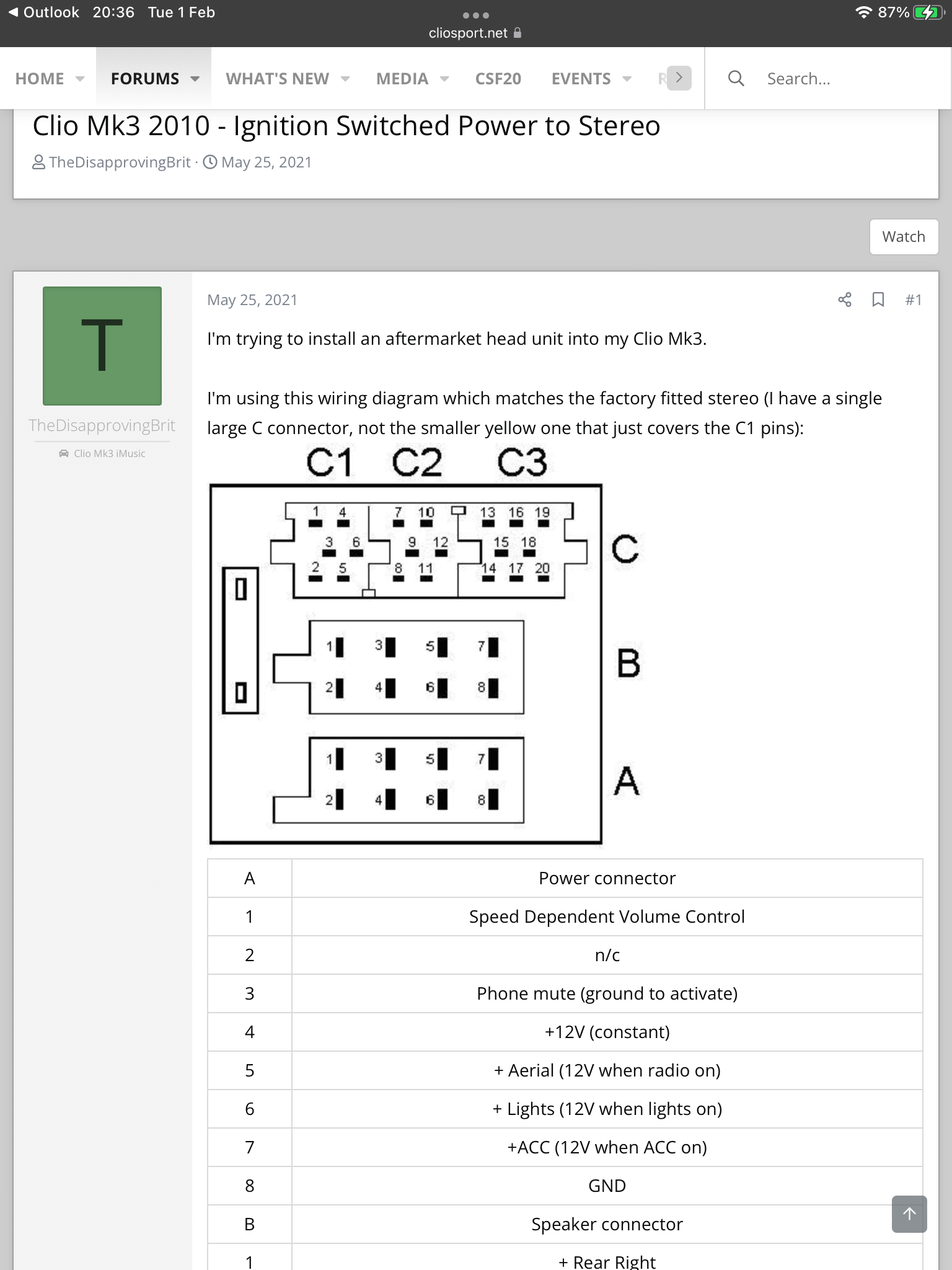

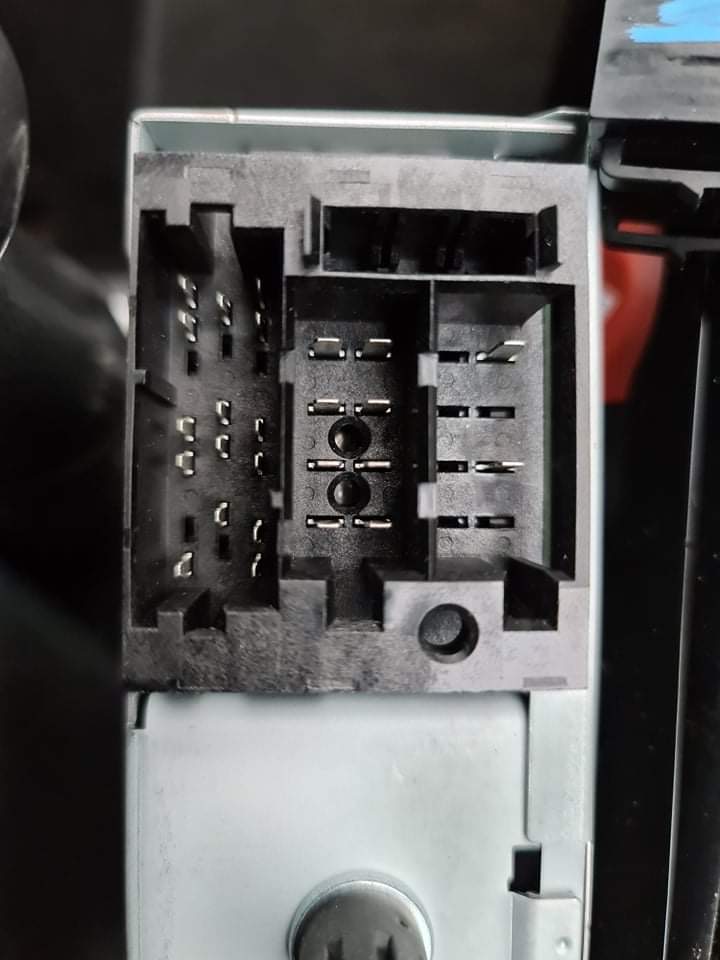

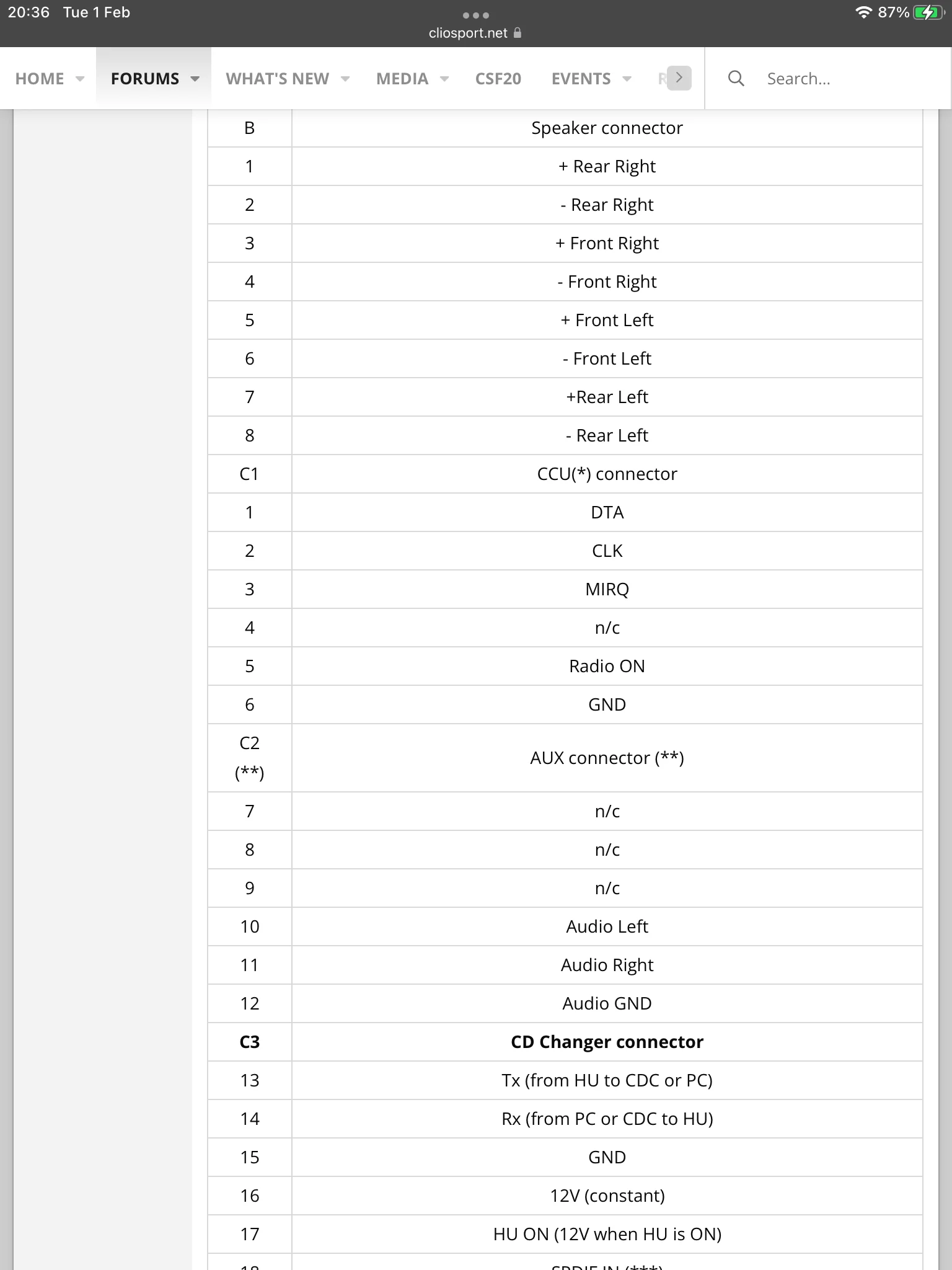

Thread 'Clio Mk3 2010 - Ignition Switched Power to Stereo'
https://www.cliosport.net/threads/clio-mk3-2010-ignition-switched-power-to-stereo.838564/

So I’m thinking this bloke had the same problem.
A7/should be the switched power yellow cable, on mine it’s red Sharpy.
Is this what you meant be switching Red and yellow over?
How do I know it’s correct at the other end, ie Pioneer unit?



[SharpyClio]

Yes, so A7 is the switched live based on that with A4 being the permanent live. On the stereo the switched live will be yellow. So looking at the loom you added before the yellow wire looks like its A4 is switched live and (although hard to see on the photo) permeant live is A7. So they look to be switched in the Clio. Just swap the bullet connectors around and check the fuse (it shouldn't have blown from the cables being wrong but I always double check) and then plug it all in, the unit should whirr as it has a CD unit and then when you turn the ignition on should spring into life.



[Paulyboy]

I did as you suggested trick but still no power, whether the ignition is on or off.



[SharpyClio]

I did as you suggested trick but still no power, whether the ignition is on or off.

Okay, so that is odd. Assume you checked the fuse? Does the original or the other replacement you got seem to have power?

The only other thing I can think of is that there is a problem with the stereo itself, its rare but I have seen them break before.

Without seeing it im out of ideas now... sorry. Where abouts are you based (on the off chance its nearby)



[Paulyboy]

Fuse is fine , put the original back in and it all powers up and works as normal.
So there’s a power cable somewhere.
Which is why I couldn’t understand the Halfords guy saying you need to wire it direct to the fusebox?



[Paulyboy]

Dalgety Bay,Fife,Scotland 😳😂😈😈😍



[SharpyClio]

Dalgety Bay,Fife,Scotland 😳😂😈😈😍

That's not nearby



[SharpyClio]

Fuse is fine , put the original back in and it all powers up and works as normal.
So there’s a power cable somewhere.
Which is why I couldn’t understand the Halfords guy saying you need to wire it direct to the fusebox?

Yeah that sounds like rubbish to me, i've never done a separate live for a stereo swap. Im missing something just struggling to figure it out...



[Paulyboy]

Lol, no, didn’t think so Trick ☹️😂😂😂,but thanks bud.
I’m gonna try and remap every cable on the drawing to the wiring diagram I got off the net the Pioneer.
Somethings not right that the cable is live for the oem radio but not the aftermarket pioneer?

just need to find my colouring in pens mate 😳😎



[Paulyboy]

I’m not sure if this has helped me made me scratch my head more! 😳😂😢



[TheBandit]

Do you have a multimeter to test that the positive live and the accessory live are working as intended in the car?

Im pretty sure I had to reverse the connectors on my Sony unit, as in:

Red ---> Yellow
Yellow ---> Red



[Paulyboy]

I don’t think I do,but screwfix is five minutes down the road.
Amazon could have delivered by the time I got in the car ffs! 😳😂😂.
I changed the red and yellow but no difference, no power hitting the Pioneer, but works for original radio.
I’m gonna change the fuse in the pioneer just in case, albeit it looks perfect.
Thanks green 👍☺️



[trickstargee]

Fyi its @SharpyClio whose been helping you out, not me 😂

I know certain cars dont have a permanent live in the normal radio loom e.g. E9X BMWs, what model car is it, did you mention TomTom edition?

As daft as it sounds, when you've tested the pioneer radio, you have turned the ignition on havent you?

Factory radio if i remember right will work without the key but aftermarket wont...

Edit: could you check the pioneer in a friends car - quickly whip it out and test on another car just to rule out the headunit?



[Gus]

I had a Clio 200, swapped the stereo for an aftermarket but it didnt work until the engine was actually running.



[Paulyboy]

I turned the key , but made no difference guys.
Asked my mates,but all so far are inbuilt units, like the Ford Focus, Audi,Mercs,beemers.
No older cars that just have a “normal rectangle radio” 🤷‍♂️☹️.
If I can’t get it working,I’ll try get a newer TomTom compatible radio/cd player.
I’m thinking of buying an older MX5 later in the year, I’ll keep it fir that, hoping it’s compatible.
It has Bluetooth and Dab and zi know the 2013+ MX5s are still,old hat audio wise.
It’s only the latest MX5 that is techie audio wise.
It’s a 2011 1.2 Dynamique Tom Tom.

cheers guys.



[Paulyboy]

Fyi its @SharpyClio whose been helping you out, not me 😂

I know Trick, I was replying to your bullet question further….further..further up lol, re codes lol.

sharpys being a great help , I’m not giving up……just yet lol!

besides it seems to be keeping you lot awake lol! ,so entertainment value must be good 😳😂😂😂🤔



[SharpyClio]

I’m worried it’s going to keep me awake . Lol



[Paulyboy]

Unlucky Sharpy cos it’s having the reverse affect with me..these wiring diagrams are putting me to sleep 😴 🛌 💤
😂😂😂



[Paulyboy]

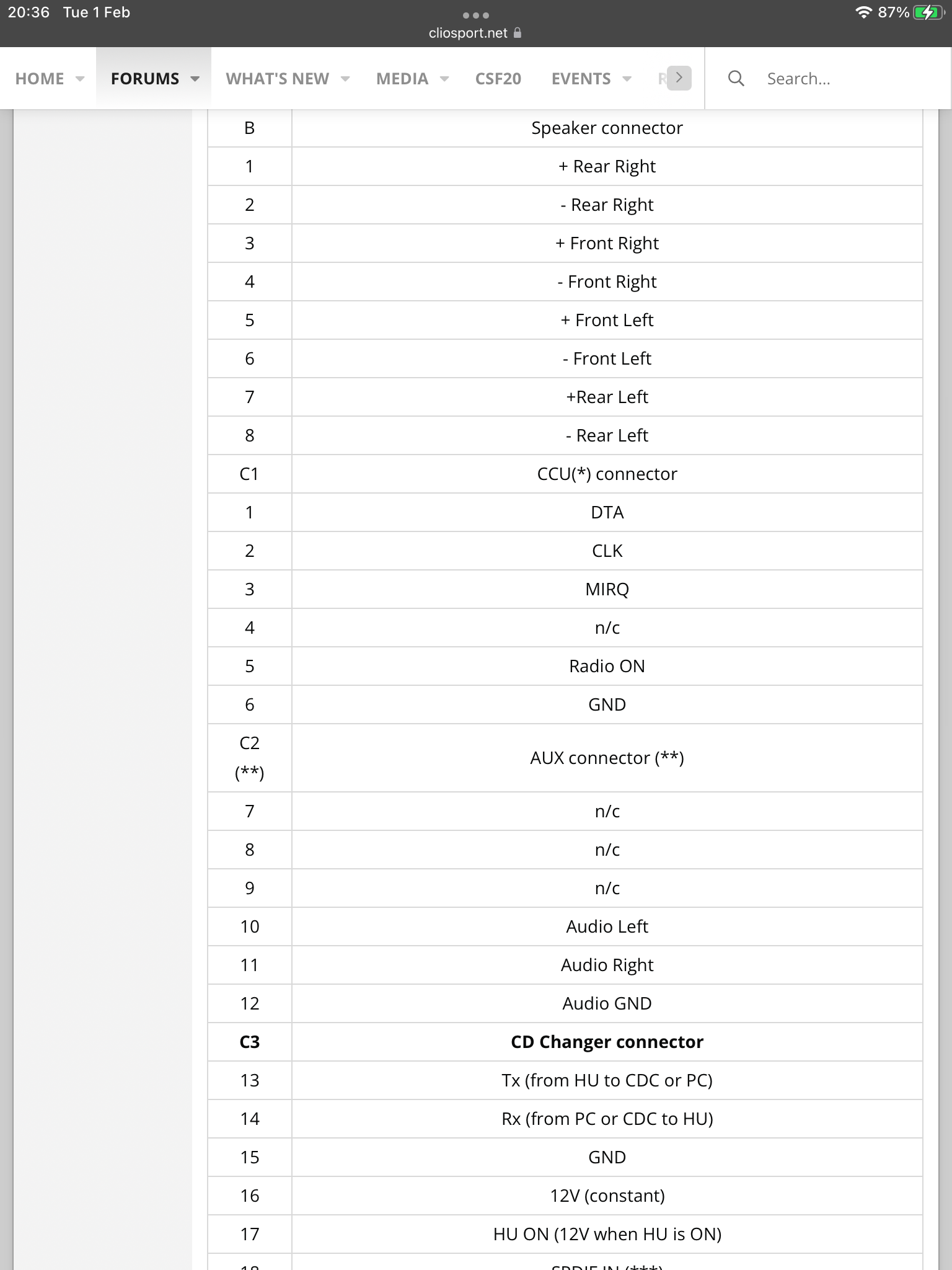

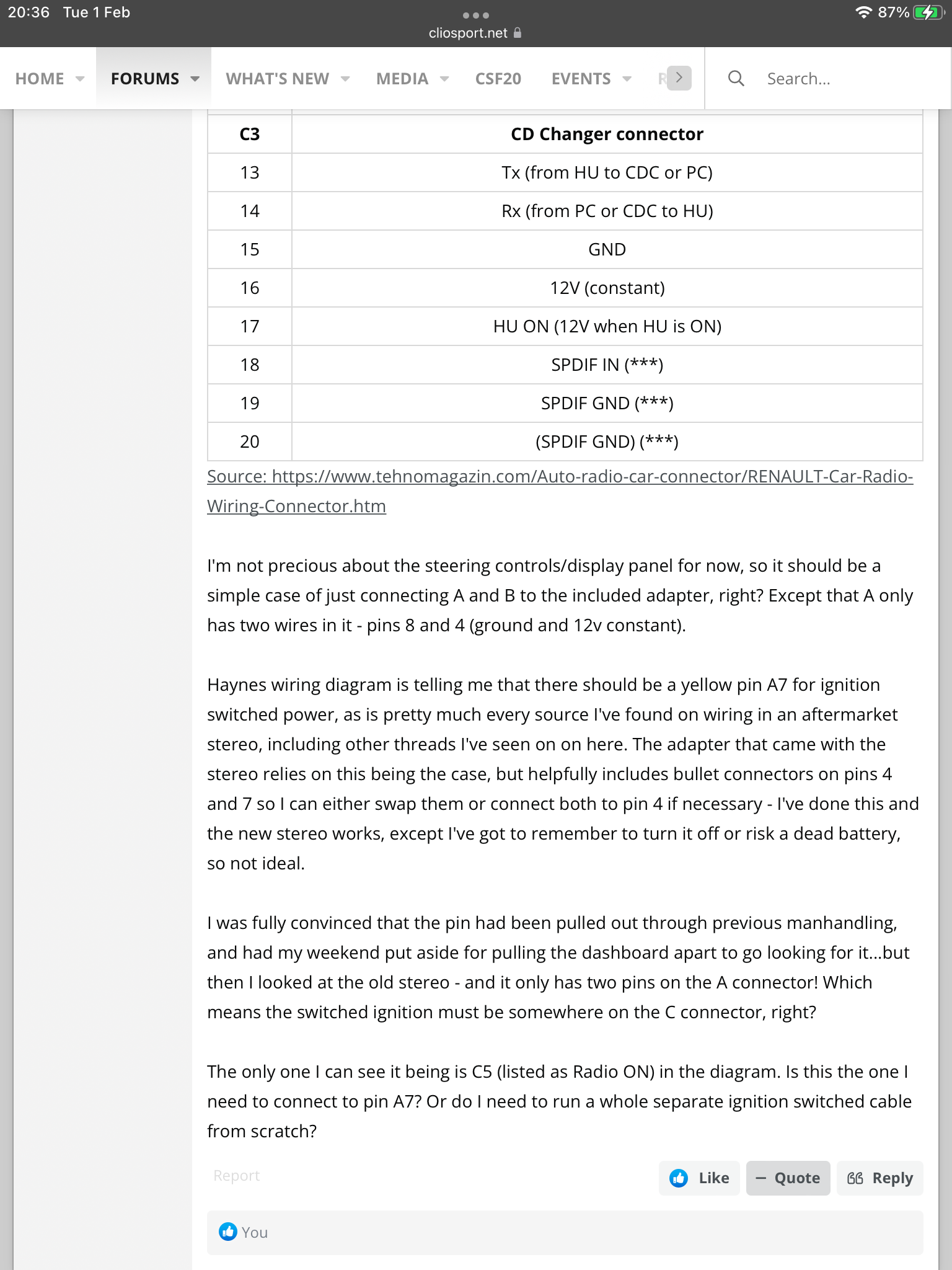

I’m thinking this guy had the same problem as me.



[SharpyClio]

Okay, that’s interesting. The radio on is likely to be from the stalk control though. Totally didn’t spot that, so yours ont en same based on the images, looks like you only have one live on the iso connector, so the speech must be elsewhere as noted.

So you basically need to find a switched live and just link to that, I also bet there’s a harness converter you can buy.



[SharpyClio]

I think the connects2 harness resolves the issue without needing to connect to another cable.



[SharpyClio]

Also… don’t want to say it but Halfords we’re kinda right! Ffs.
