Parts diagram needed for Gear linkage

Discussion in 'Engine, Gearbox, Exhausts & Running Gear' started by BIGASH, Jun 11, 2012.

  1. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    I need to find some parts diagrams if possible of the gear linkage from and including the selector arm all the way the the shifter, Does anyone have any? Part numbers for the parts would be ideal also! Thanks in advance :smile:

    James

  2. bozothenutter

    bozothenutter ClioSport Club Member

    Joined:
    Mar 9, 2011
    Messages:
    1,643
    Location:
    Netherlands
    Car:
    FF Arctic blue 182

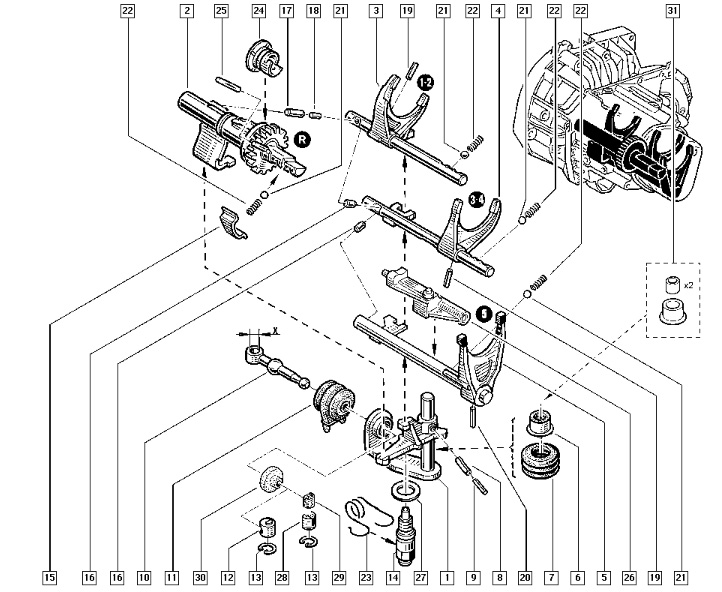

    [​IMG]

    Got this off yanoo a while ago.....

  3. Renault Wolverhampton

    Renault Wolverhampton ClioSport Trader

    Joined:
    May 18, 2011
    Messages:
    5,536
    Location:
    Trade Parts Willenhall
    no 12 is a common bit to wear

  4. KielT

    KielT ClioSport Club Member

    Joined:
    Jan 20, 2012
    Messages:
    426
    Location:
    Stowmarket, Suffolk
    Car:
    Arctic 182
    Surely the main wear is actually on the gear linkage rod from gear lever to box? Because it has 2 plastic/rubber bushes either side which wear down which then gives the lever a more of a sloppy feel ?

  5. barnesautos

    barnesautos ClioSport Club Member

    Joined:
    Apr 18, 2009
    Messages:
    877
    Location:
    west london / Hertfordshire
    Car:
    172 Ph1

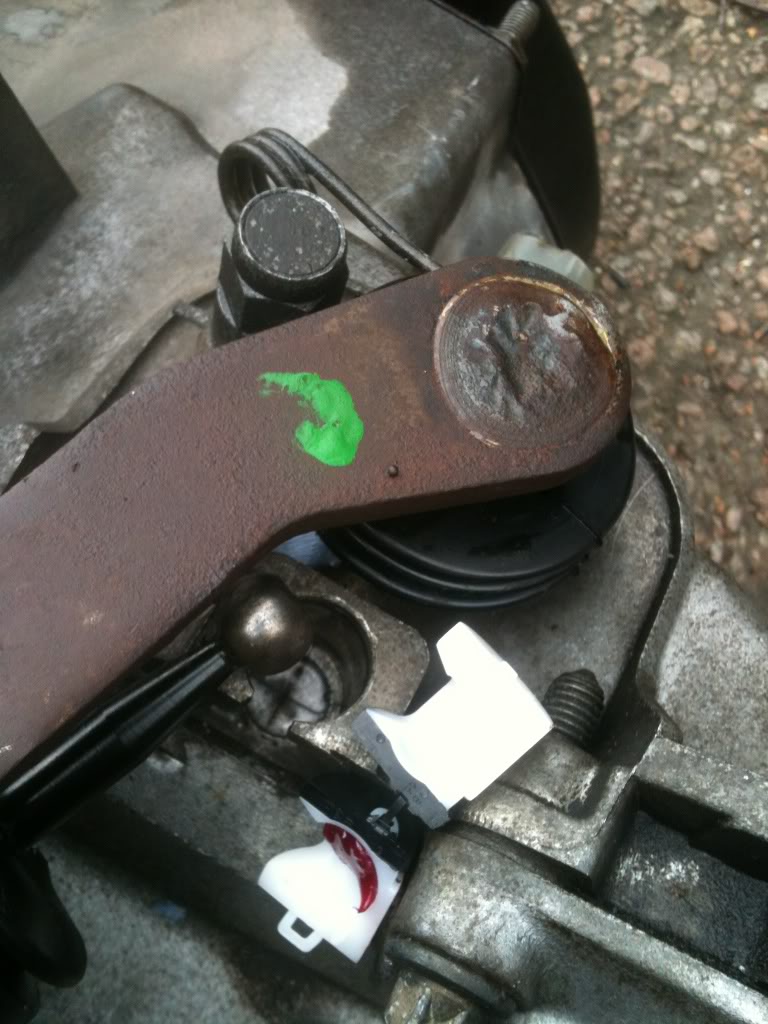

    Here's my No 12 being replaced
    Yes they do wear
    [​IMG]

  6. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Thanks for that diagram mate it's ideal :smile:
    Hi mate any chance you can price up for all the moving/wear parts in the above diagram and also the rod itself to the gearstick and a brand new gearstick assembly? Any chance you can pm me the prices and also screenshot of the parts so I know what the price are for? Thanks :smile:
    Thanks it could be, We have tried eliminating various things and can't seem to make it any better so just going to try a full refresh I think and hope for the best!

  7. bozothenutter

    bozothenutter ClioSport Club Member

    Joined:
    Mar 9, 2011
    Messages:
    1,643
    Location:
    Netherlands
    Car:
    FF Arctic blue 182
    Pm Yanoo with your questions, he really seems to know these boxes....or order one of his shifts:wink:

  8. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Yes thanks I will do, I have already got his kit but the play is coming from the gearbox end unfortunately :worried:

  9. Dan519

    Dan519

    Joined:
    Aug 10, 2011
    Messages:
    6,422
    Location:
    Bedford
    Car:
    DON'T SEND ME PM'S!!
    look at number 10. I had a williams in a while ago that had popped the ball in the center off it's retention.

  10. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Mmm thanks for that Dan I will investigate that too then :smile:

  11. Dan519

    Dan519

    Joined:
    Aug 10, 2011
    Messages:
    6,422
    Location:
    Bedford
    Car:
    DON'T SEND ME PM'S!!
    it sits inside the boot (number 11) so it's not totally obvious if there's a problem until you look closer

  12. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    I think you might be onto something actually because last time I was fiddling that did seem to be the location of the play! I will update when I have fiddled next week :smile:

  13. Dan519

    Dan519

    Joined:
    Aug 10, 2011
    Messages:
    6,422
    Location:
    Bedford
    Car:
    DON'T SEND ME PM'S!!
    did you find what was worn?

  14. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Not had the car back yet Dan but got 6 weeks after the Anglesey race before it's next out so will get investigating :smile:

  15. Yanoo

    Yanoo ClioSport Club Member

    Joined:
    Nov 14, 2008
    Messages:
    213
    Location:
    Hungary
    Car:
    Clio Williams
    Item 12 can cause huge play in the whole linkage if it's worn. If in doubt it's suggested to change it (its ref. number: 77 00 872 205 and approx £4 from Renault). As Danny said, Item 10 sometimes also can cause play if its bigger ball is worn or snapped. Only older Renaults use rigid plastic ball (it tends to snap or wear off), the newer ones use a flexible resin ball. Common problem that the bush of this small rod gets worn and results huge lateral play at the gear knob. I have a small metal bush for replacing this one, but my bush cannot be fitted if the long linkage has got a 'built in' pivot.

  16. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Thanks for the input Yanoo :smile: Okay right well I will check those two out when I get the car back and go from there! Sorry I don't understand the part about the built in pivot :blush: lol! Maybe I will when i'm under the car :smile:

  17. Yanoo

    Yanoo ClioSport Club Member

    Joined:
    Nov 14, 2008
    Messages:
    213
    Location:
    Hungary
    Car:
    Clio Williams

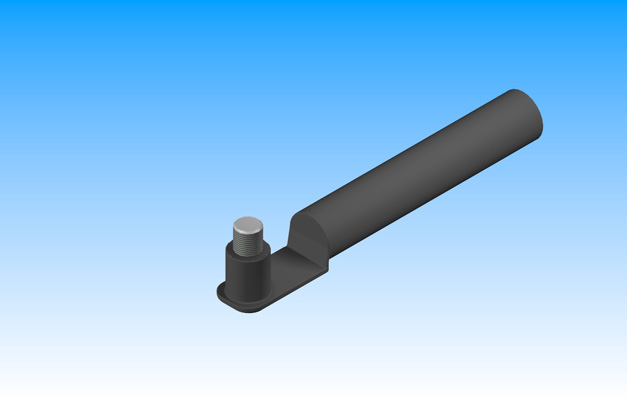

    There are (at least) 4 types of long gear linkage end. 3 of them use clevis bar end (with bush and rubber spacer) and one uses pivoted end, like in this pic:

    [​IMG]


    My small metal bush cannot be fitted if this pivoted linkage is in the car.

    If this pivot or the bush of the clevis bar is worn, it causes lateral play in the linkage, like in this vid:


    Last edited by a moderator: Dec 12, 2014
  18. Danith

    Danith

    Joined:
    Feb 18, 2006
    Messages:
    3,798
    Location:
    Manchester Castlefield
    Car:
    EP3/E36 328 Sport
    Is this (number 12) what causes the squeaking in the gear lever? Mine's squeaking like hell (not clutch, from gearstick area) and it's a little tricky to get it in reverse sometimes.

  19. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Yanoo my gear linkage end seems to be made of metal but it insn't a snug fit!


    Inspected and taken apart today :smile:! Most of the play seems to be coming from the selector arm which can still push up even when in gear, this is exaggerated by the relocated position of my gearstick. Does anyone know if this can be reduced or is it supposed to have this play?

    Can anyone describe what parts 28,29 ad 30 are in the diagram?

    There is play in the bush 12 and also where the bar goes through the selector arm but i'm not sure if it is supposed to or not?!

  20. Danith

    Danith

    Joined:
    Feb 18, 2006
    Messages:
    3,798
    Location:
    Manchester Castlefield
    Car:
    EP3/E36 328 Sport
    Where's the number 12 on here sorry?!

  21. Chip-mk1

    Chip-mk1

    Joined:
    Nov 17, 2011
    Messages:
    23,277
    Location:
    Notts / London
    Car:
    182/RS2/ Turbo/Mk1
    Assuming all you have altered is a slightly longer section of the rod between the lever and the bend in the rod, and given that there is essentially zero twist in the rod itself on this part, I find it hard to see how that is exaggerating the play so much really.
    Any pictures of the mods to the rod itself that might help shed light on why that is altering how it behaves.

  22. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    I just thought by it being longer then it would cause more of a pivot point on the change ( I am clueless though lol :wink:) I will get photo's tonight and post up, also had video's but then my phone decided not to save them!

    Thanks :smile:

  23. EVOgone

    EVOgone ClioSport Club Member

    Joined:
    Jan 7, 2004
    Messages:
    3,371
    Location:
    Cheshire
    Car:
    Pink Cup Racer
    I have just got a new linkage bar and the old one has a resin ball and the new one has a softer plastic covering. Got a new no12 bush as well and the slop has gone but the gear shift is a bit stiffer (think its down to the softer plastic vs the harder resin. The new plastic covered one also has plastic covering the linkage conector at the end which makes it so it doesnt fit so i have cut this off so its the raw matal like the origional. Dont know if this is for a later linkage to gearstick rod but dont see why you would have it.

  24. Danith

    Danith

    Joined:
    Feb 18, 2006
    Messages:
    3,798
    Location:
    Manchester Castlefield
    Car:
    EP3/E36 328 Sport
    Is this where the 'number 12' goes - in the centre of the pic? Mine's squeaky as hell here! Ordered the bush just in case it is that.

    [​IMG]
    IMAG0337 by foodbeast04, on Flickr

  25. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Yes mate 12 goes into there :smile:

  26. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    I have taken both these video's with the car in gear, the play really is bad. Half of it seems to be cause by the selector shaft going up and down, Is there any way to stop this? I guess not as it needs to move to select the different gears. There seems to be play in the bush 12 but I don't know if it's a normal amount, Play also in the hole for the selector and the pin but don't know if the pin is worn or the hole in the selector. Looking at the video's what parts should I change? I'm thinking bush 12, and the pin 10. Can I change the spring 23 to try and stop the amount the selector goes up and down?

    What are 28, 29 and 30?

    Should I also change the actual selector shaft end?

    Thanks :smile:

    [video=youtube_share;FUJclEUJbjI]http://youtu.be/FUJclEUJbjI[/video]
    [video=youtube_share;b2p3-peh5BI]http://youtu.be/b2p3-peh5BI[/video]

  27. Tony Hunter

    Tony Hunter ClioSport Club Member

    Joined:
    Jul 23, 2006
    Messages:
    16,390
    Location:
    Burpspeed HQ Banbury,where else.
    Car:
    182cup & 172 racecar
    I've just picked up No12,

    Bush Select R19 7700872205 £2.20 inc vat.

  28. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Is it easy to fit Tony? :smile:

  29. Tony Hunter

    Tony Hunter ClioSport Club Member

    Joined:
    Jul 23, 2006
    Messages:
    16,390
    Location:
    Burpspeed HQ Banbury,where else.
    Car:
    182cup & 172 racecar
    Circlip pliers, 5mins.

  30. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Perfect :smile: Ordered a set of them from Ebay this morning but was expecting it to be more difficult than that!

  31. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Just ordered 10,12,13 and 30! Fingers crossed this fixes it! If not then think I need to look at the gear linkage end :smile:

  32. Danith

    Danith

    Joined:
    Feb 18, 2006
    Messages:
    3,798
    Location:
    Manchester Castlefield
    Car:
    EP3/E36 328 Sport
    You beat me to it! Was gonna ask how hard it is to fit cos I can't see how to do it, but then again I won't be fitting it cos I'm a desk dude.

  33. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    I'm useless with things like this! If I manage it I will take some photo's and explain it for you :smile: The tool only cost 2.10 delivered from ebay!

  34. Danith

    Danith

    Joined:
    Feb 18, 2006
    Messages:
    3,798
    Location:
    Manchester Castlefield
    Car:
    EP3/E36 328 Sport
    Cheers buddy! My mate will box it off for me, I just like to watch and understand stuff! Yeah I ordered the part off T21ADS here. Let me know how you get on. Does yours squeak it's tits off too? I can see in your video that it's split on the 'number 12' bush, is that why it's goosed?

  35. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Haha sounds like the easier option :wink:

    Same he has sorted me out with lot's of bits recently!

    Will do, no not really just loads of play unfortunately. I wouldn't hear it squeak even if it did lol! I can't even hear when a wheel bearing goes in my car :wink:

  36. Tony Hunter

    Tony Hunter ClioSport Club Member

    Joined:
    Jul 23, 2006
    Messages:
    16,390
    Location:
    Burpspeed HQ Banbury,where else.
    Car:
    182cup & 172 racecar
    Take out circlip,

    pull downwards,

    12 will pull apart,

    put 12 back on yoke,

    push back into gearbox,

    refit circlip.

    Oh and put a little white grease on ball end before putting 12 on the end.

  37. Danith

    Danith

    Joined:
    Feb 18, 2006
    Messages:
    3,798
    Location:
    Manchester Castlefield
    Car:
    EP3/E36 328 Sport
    Cheers Tony Toni Tone!

  38. Dan519

    Dan519

    Joined:
    Aug 10, 2011
    Messages:
    6,422
    Location:
    Bedford
    Car:
    DON'T SEND ME PM'S!!
    EFA

  39. BIGASH

    BIGASH ClioSport Club Member

    Joined:
    Jul 26, 2007
    Messages:
    4,986
    Location:
    Milton Keynes
    Car:
    FF-Racing 182
    Sorry what?! :tongueout: lol I mis-read that at first
    Haha that sounds more like I imagined it from looking at it the other night lol! I will await my cir-clip pliers not fitting and go from there :wink:

  40. Tony Hunter

    Tony Hunter ClioSport Club Member

    Joined:
    Jul 23, 2006
    Messages:
    16,390
    Location:
    Burpspeed HQ Banbury,where else.
    Car:
    182cup & 172 racecar

    LOL
