Breaking cover......*AG content from page 45*

Discussion in 'Clio Projects' started by NorthloopCup, Apr 4, 2015.

  1. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200

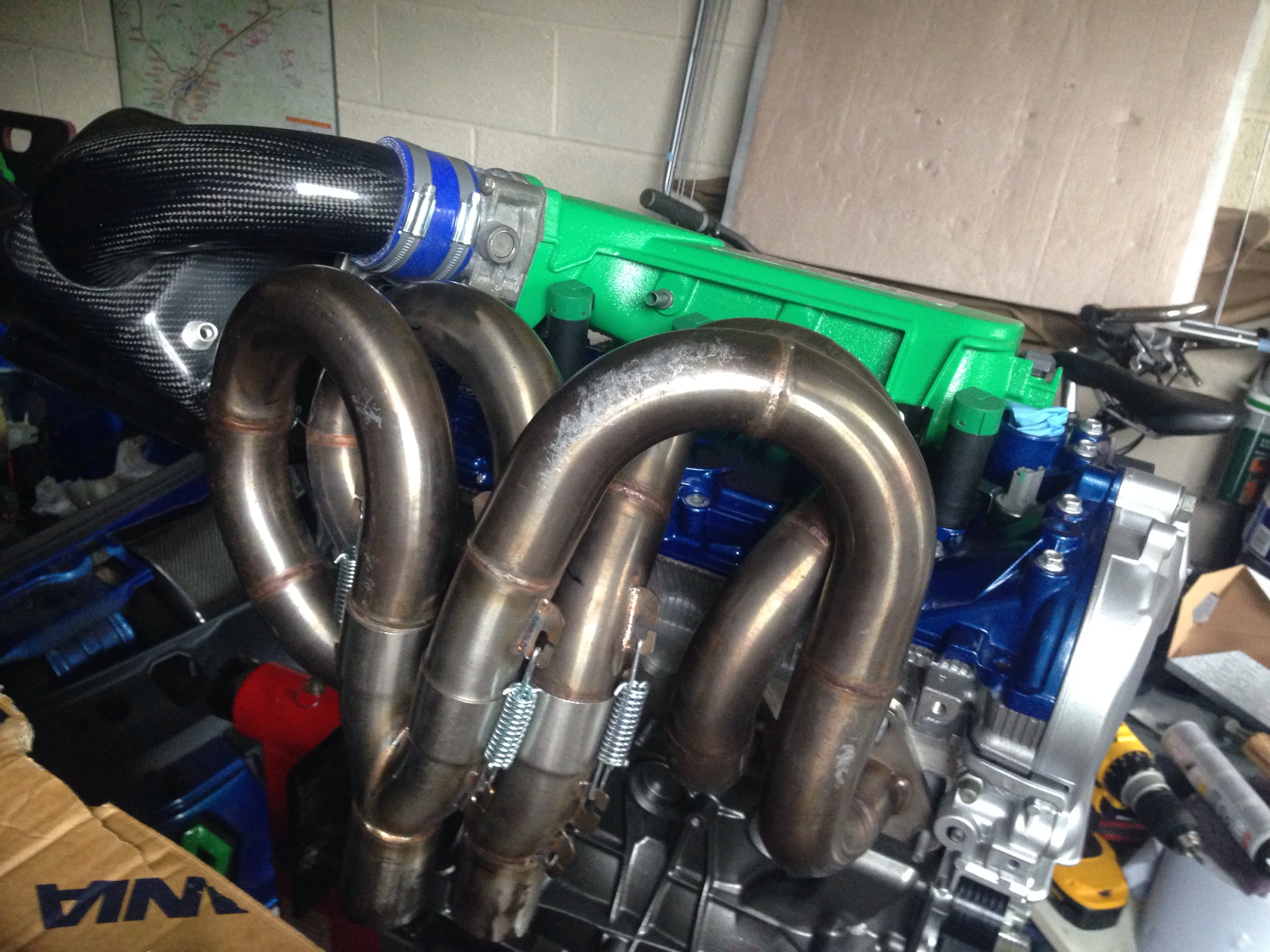

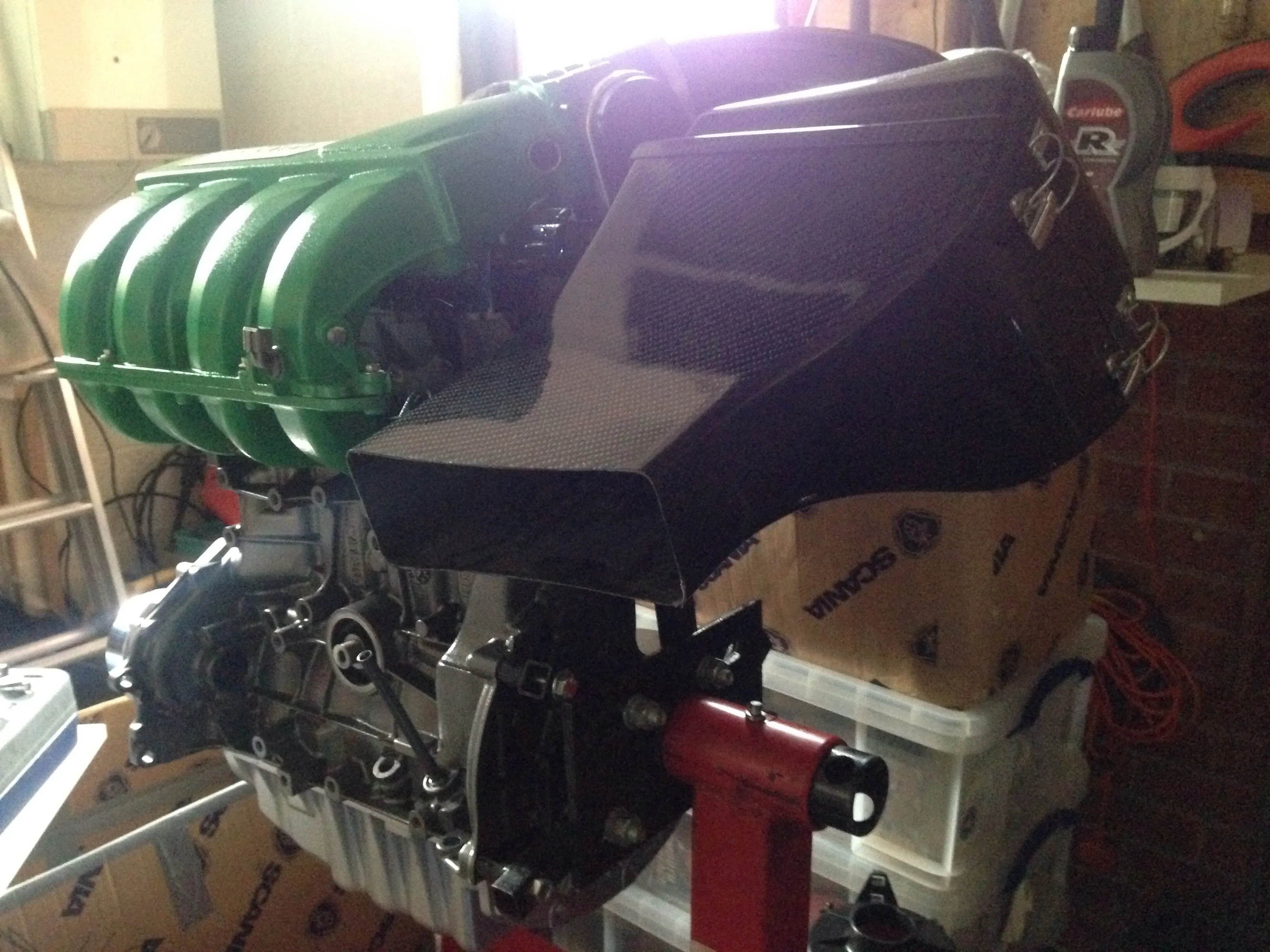

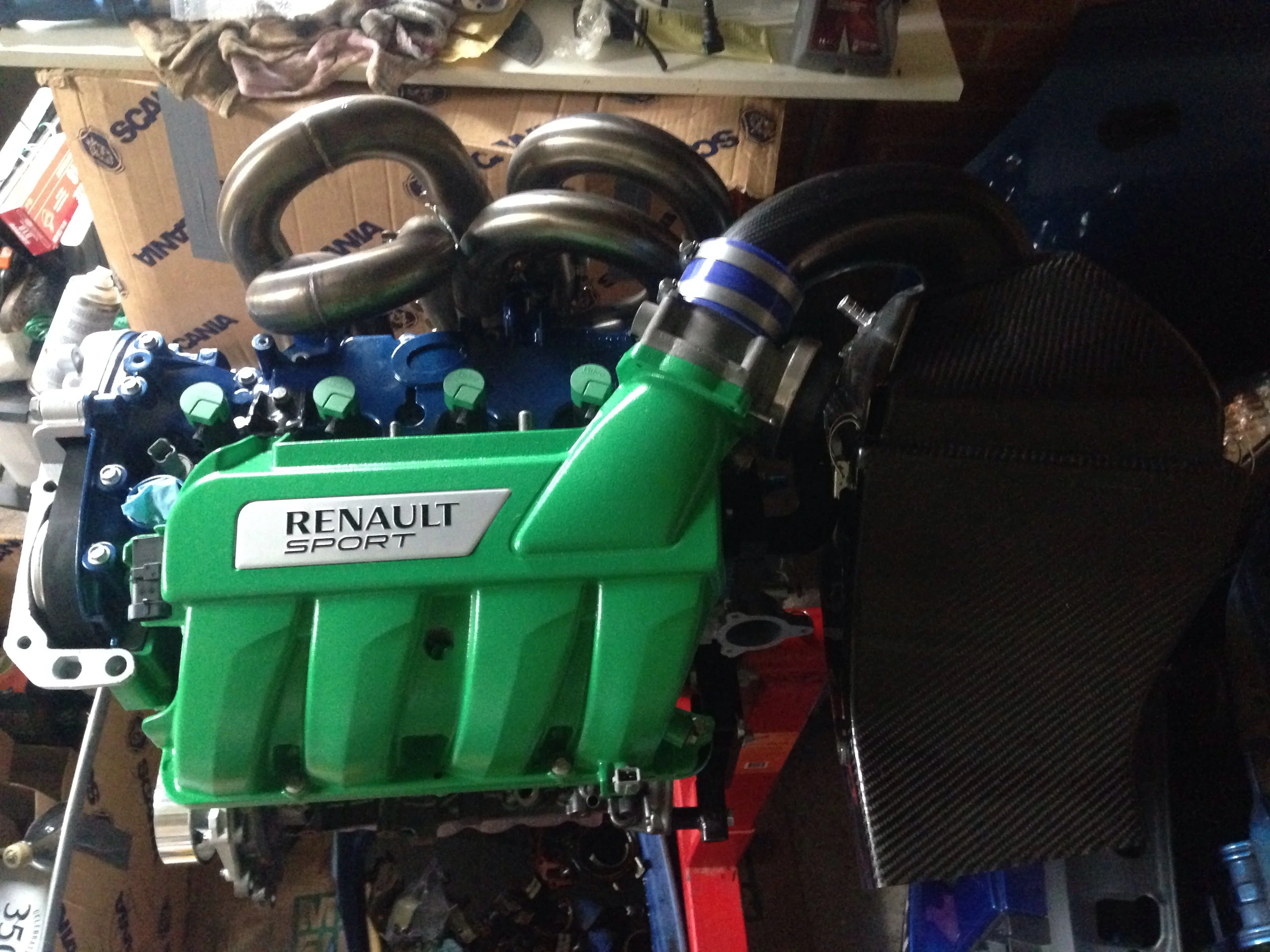

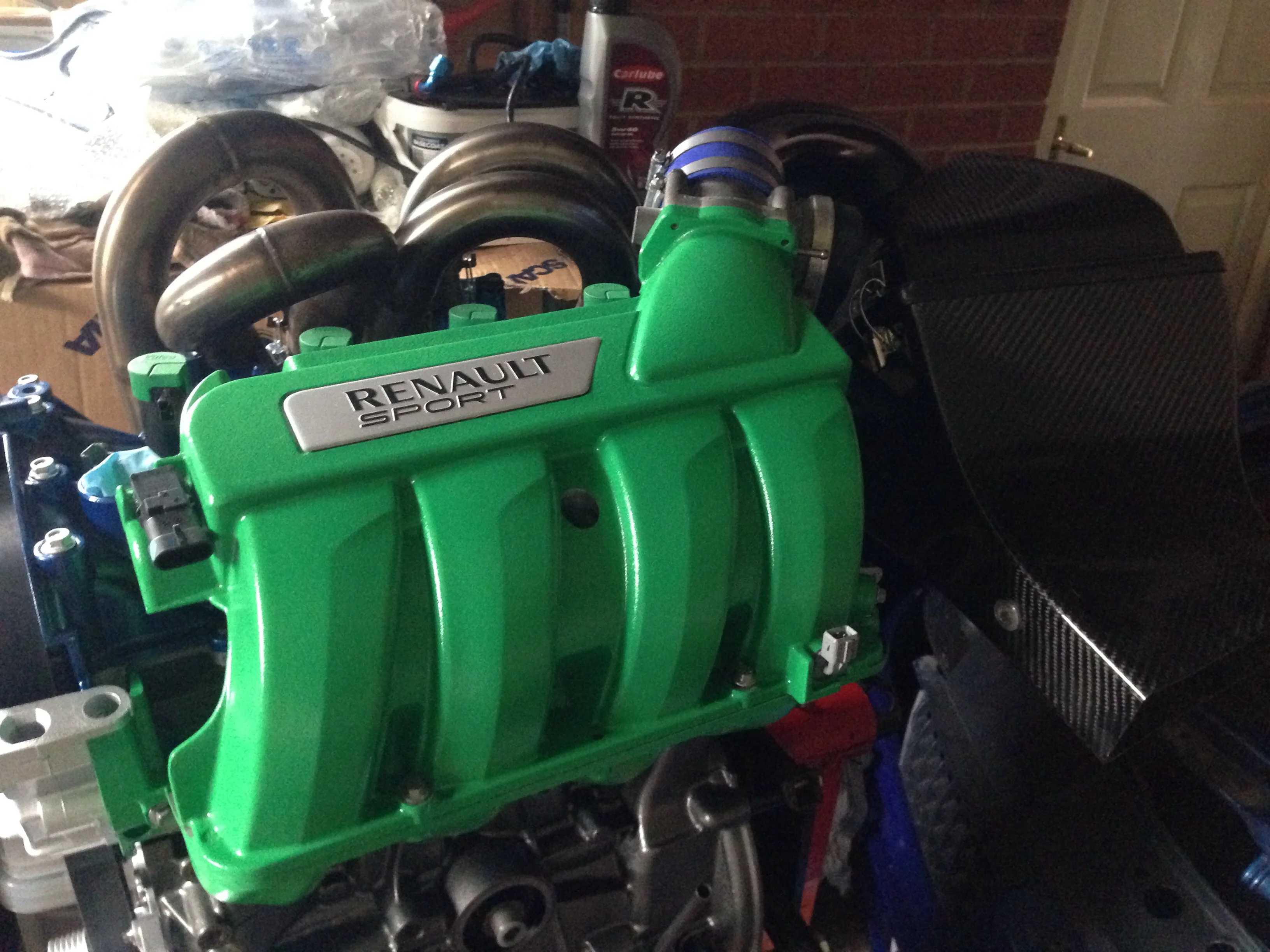

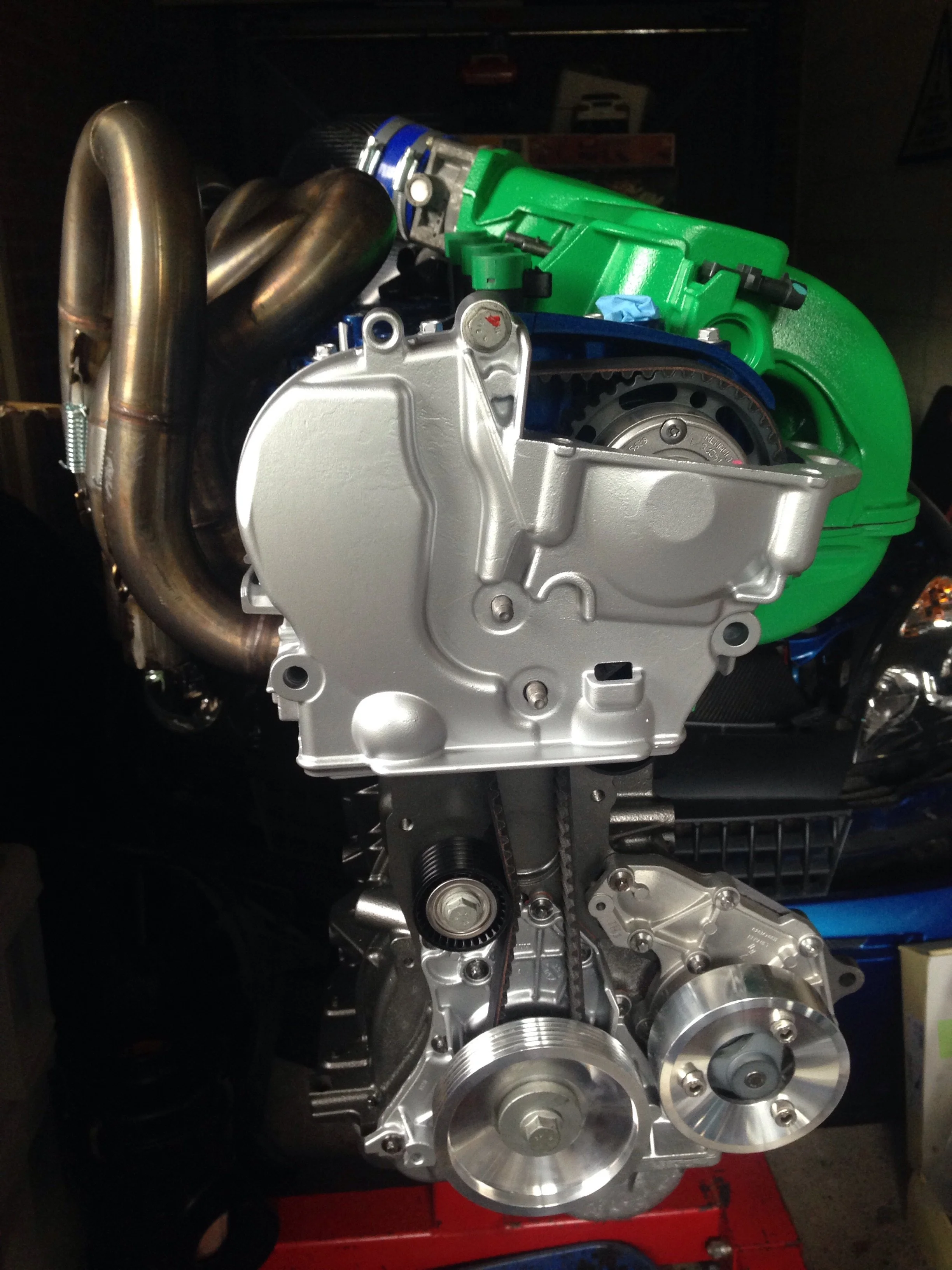

    Just thought I'd post a few pics of my engine build that's almost ready for my cup. Enjoy! :cool:

    image.jpg image.jpg image.jpg image.jpg image.jpg

    StrongboW, s.mac, Kyler and 32 others like this.
  2. Phase1sr

    Phase1sr ClioSport Club Member

    Joined:
    May 25, 2010
    Messages:
    10,019
    Location:
    Essex
    Car:
    A special one.
    Amazing mark, few quid gone into that bud.

    What power are you hoping for?

  3. dmallett

    dmallett East Of England - Suffolk ClioSport Area Rep

    Joined:
    Dec 26, 2009
    Messages:
    6,164
    Location:
    Stowmarket.
    Car:
    flame-shed.
    Seriously fly looking engine! what sort of power are you hoping for? Also whats the spec of it? If you are willing to share :smile:

  4. bozothenutter

    bozothenutter ClioSport Club Member

    Joined:
    Mar 9, 2011
    Messages:
    2,400
    Location:
    Netherlands
    Car:
    FF Arctic blue 182
    So that's what a R2 engine (mostly) looks like!
    Best bits are invisible I reckon!
    Is that the Pure manifold or also renaultsportR2?

  5. Dr Jekyll

    Dr Jekyll ClioSport Club Member

    Joined:
    Jan 2, 2011
    Messages:
    10,418
    Location:
    Essex/Hertford
    Car:
    Racing Blue 182
    F*ck that looks good!

    Last edited: Apr 4, 2015
    NorthloopCup likes this.
  6. Tim.

    Tim. ClioSport Club Member

    Joined:
    Oct 10, 2011
    Messages:
    2,541
    Location:
    Newbury
    Car:
    Trophy #455
    f**k about, that looks serious and a credit to you. No matter how it goes I think that's lovely.

    SharkyUK and NorthloopCup like this.
  7. JP83

    JP83 South Central-Oxfordshire ClioSport Area Rep

    Joined:
    Jun 15, 2012
    Messages:
    2,969
    Location:
    Banbury
    Car:
    Mk3 DCI, 172 Ph2
    That looks lovely!

    NorthloopCup likes this.
  8. Daniel

    Daniel ClioSport Moderator

    Joined:
    Jul 21, 2005
    Messages:
    41,910
    Location:
    THIS IS SHOE
    Car:
    Works GP, Passat Tdi
    Christ alive. Did you do that yourself??

    Richyy182 likes this.
  9. Fletcher

    Fletcher

    Joined:
    Nov 21, 2005
    Messages:
    29,566
    Location:
    Hampshire
    Car:
    172/FabiaVRS/Hilux.
    Wow.. Looks great Mark.

    NorthloopCup likes this.
  10. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Thanks scott! Yeah not as much as you'd think though tbh!

    I'll do a full spec list with the power output later mate. On a session atm with a bottle of j├Ąger. Lol!

    Cheers mate! As above, I'll do a spec list tomorrow.

    R3 mate! You may well be right about the best bits as well! Lol! The manifold is a pms item that I bought off @Porkie and @BIGASH

    Lol! Yes mate, pretty much all my own work other than the machining work on the block.

    Phase1sr likes this.
  11. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200

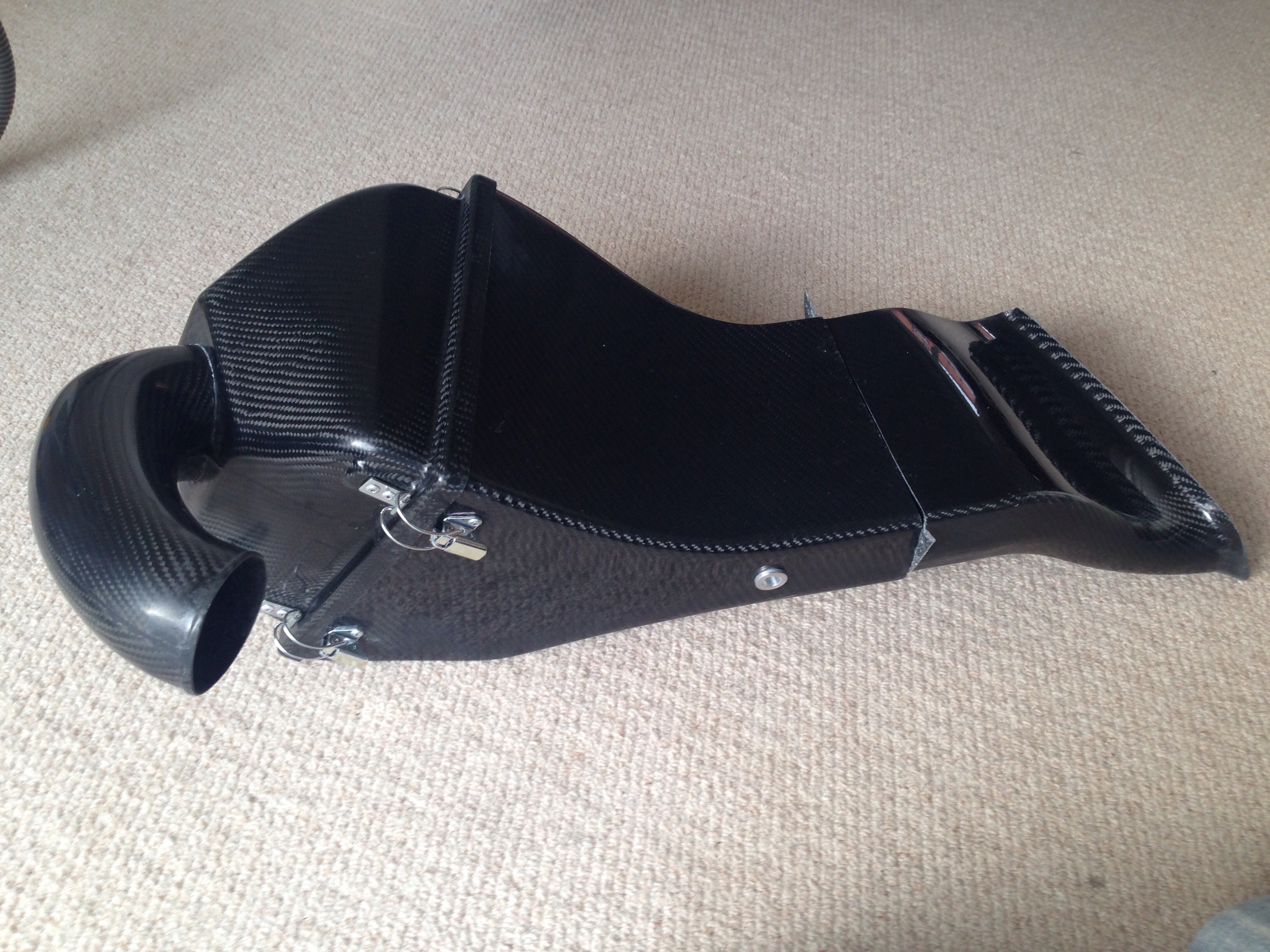

    Better pic of the airbox


    chaski, Simon_16v, Jack-C and 5 others like this.
  12. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Cheers fletch!

  13. MarkX

    MarkX

    Joined:
    Mar 23, 2014
    Messages:
    1,287
    Location:
    Antrim
    Car:
    XVCupSmartConnect
    Work of art!

  14. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Thanks mate. :smile:

  15. MG cup

    MG cup

    Joined:
    Apr 25, 2012
    Messages:
    5,534
    Car:
    Cup In bits
    Very nice Mark :up:.... Cup bracket going on for the alternator? Does it fit on the 197 block?

  16. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Cheers Morgan! 172 block mate not a 197 one. :wink:

  17. MG cup

    MG cup

    Joined:
    Apr 25, 2012
    Messages:
    5,534
    Car:
    Cup In bits
    So it is, be nice to see your figures without ITB's.

  18. Cub.

    Cub. ClioSport Moderator

    Joined:
    Apr 16, 2011
    Messages:
    7,240
    Location:
    TMR South
    Car:
    Supercharged Flamer
    This is quite frankly, utterly f**king brilliant.

    I can't wait to see it. You've done Team Mincer Racing proud.

    p@blo and NorthloopCup like this.
  19. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Full spec list to follow mate, but it should produce good numbers considering the lack of itb's. Or at least that's the idea! Lol

  20. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Lol! Sometimes you just have to go against the flow mate.

    Cub. likes this.
  21. sj2112

    sj2112 ClioSport Club Member

    Joined:
    Feb 21, 2011
    Messages:
    7,573
    Location:
    portsmouth
    Car:
    DBP Mk4 Golf R32
    Wow

    very impressive

    NorthloopCup likes this.
  22. Mr Burns

    Mr Burns ClioSport Club Member

    Joined:
    Dec 6, 2007
    Messages:
    9,389
    Location:
    Cannock
    Car:
    MX-5/Fiesta ST
    Awesomeness.

    NorthloopCup likes this.
  23. sonny172cup

    sonny172cup ClioSport Club Member

    Joined:
    Nov 19, 2011
    Messages:
    2,527
    Location:
    Kent
    Car:
    172 Cup race car
    Looks great Mark, love the air box

  24. Iain C

    Iain C ClioSport Club Member

    Joined:
    Aug 12, 2003
    Messages:
    7,694
    Location:
    maidstone
    Car:
    172cup, cactus,fabia
    I've not a clue what I'm looking at bit I guess a 197 lump?

  25. Ph1 Tom

    Ph1 Tom ClioSport Club Member

    Joined:
    Jan 28, 2013
    Messages:
    3,941
    Location:
    North Wales
    Car:
    ITBd Ph1
    Can't wait to see what it makes Mark, should be good!

  26. Christopher.

    Christopher. South Central-South Coast ClioSport Area Rep

    Joined:
    Oct 9, 2008
    Messages:
    4,760
    Location:
    Portsmouth
    Car:
    Petrol Blue 182
    Thats brilliant.

    @Fletcher we need to build one for your car !!

    Fletcher likes this.
  27. not normal dan

    not normal dan

    Joined:
    Apr 27, 2008
    Messages:
    3,035
    Location:
    TMR HQ, deep depths of South Derbyshire
    Car:
    Megane r26
    You know my thoughts on this already @NorthloopCup

    Looks very different to the block we hand balled into the golf haha

  28. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Cheers sonny! Yeah the Airbox is one of my favourite bits.

    It's a bastardisation of 197 and 172 mate. Spec list to follow shortly.

    Yeah me too tom! It's only the throttle body that in theory can hold it back. Got a plan of attack for if it does!

    thanks mate!

    Lol I do indeed mate! It was much lighter on the way out the golf than it was on the way in too! Flol!

  29. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Ok so here's a spec list of my engine.

    Genuine R3 maxi forged pistons.
    Genuine R3 maxi rods.
    Genuine R3 maxi cams.
    Fully ported and polished Clio 197 cylinder head, modified to suit a 172.
    Supertech valves.
    Fully ported and polished inlet manifold.
    Low mileage 172 block honed and modified/adjusted to my spec + checked for alignment/straightness.
    Modified oil pump.
    Fully balanced rotating assembly (crank, pulleys, flywheel, clutch, pistons and rods) and micro polished crank journals.
    Lightweight flywheel.
    Lightweight water pump and crank pulley.
    Individually gapped piston rings (4 per cylinder)
    Genuine R3 air filter
    Genuine R3/cup racer aluminium fuel rail and anodised an fittings.
    R3 maxi Evo spec carbon airbox (copy! Original was just too expensive when it physically won't fit in a 172 bay and has to be fettled :sob:)
    Fully built to R3 maxi manual specs - crank deflection, bearing clearances, ring gaps etc etc.
    PMS exhaust manifold.
    197 coil on plug setup.
    R3 maxi spark plugs.
    FBW throttle body (options to run larger manual throttle if found to be a restriction)
    Custom wiring loom to suit.
    Gen90 ecu.

    @Phase1sr @dmallett there you go! I've possibly forgotten some bits as well. There's a lot to remember tbh.

    gambit, SharkyUK, p@blo and 3 others like this.
  30. Christopher.

    Christopher. South Central-South Coast ClioSport Area Rep

    Joined:
    Oct 9, 2008
    Messages:
    4,760
    Location:
    Portsmouth
    Car:
    Petrol Blue 182
    That is one impressive spec.

    What was the idea for it all ? Just pick the best bits from the Renault range to fit in the Cup for max performance ?

  31. Addicted

    Addicted

    Joined:
    Jul 21, 2010
    Messages:
    10,404
    Location:
    Worcester, West Mids
    Car:
    Golf 7R w/ DSG
    Porn!

    Looks fantastic.

  32. not normal dan

    not normal dan

    Joined:
    Apr 27, 2008
    Messages:
    3,035
    Location:
    TMR HQ, deep depths of South Derbyshire
    Car:
    Megane r26
    More of a controlled fall haha, not bad consider we were fuelled by red bull haha

  33. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Thanks. It's quite a long list when you write it all down like that! Lol

    The idea for it all mainly came from wanting to run the 197 inlet as its a better looking design imo. More aesthetically pleasing! I set about converting a 1*2 head to accept the inlet, but the work involved was stupendous!! I dropped lucky on a 197 engine in bits so I cherry picked the items I knew I could work with and left the rest.
    All because I just wanted to crack 200hp without itbs. Lol!

    C l a r k e y likes this.
  34. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Thanks!

    Lol! It must've been because my finger was still hurting after being squashed!! Permanently fuelled by red bull mate! Lol

    not normal dan likes this.
  35. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    @not normal dan let me know if your free on the 17th @Cub. is heading up to have his hubs fitted. Ideal time for a Clio vs Meg head to head! Flol

    Cub. likes this.
  36. not normal dan

    not normal dan

    Joined:
    Apr 27, 2008
    Messages:
    3,035
    Location:
    TMR HQ, deep depths of South Derbyshire
    Car:
    Megane r26
    I'm on days but I could be arranged lol

    Cub. and NorthloopCup like this.
  37. mark123

    mark123 ClioSport Club Member

    Joined:
    Oct 20, 2005
    Messages:
    2,627
    Location:
    Newbury
    Car:
    172 race, 250 meg
    Looks good Mark. Looking forward to seeing how it goes on the rollers.

  38. MarkCup

    MarkCup ClioSport Club Member

    Joined:
    Jul 24, 2003
    Messages:
    13,733
    Location:
    www.youtube.com/markcup70
    Car:
    Fiesta ST MR230
    Just yum.

    Oh, and wow too.

  39. Jeff simply

    Jeff simply ClioSport Club Member

    Joined:
    May 6, 2006
    Messages:
    8,647
    Location:
    East Sussex
    What are the springs on the exhaust manifold for ?

  40. NorthloopCup

    NorthloopCup ClioSport Moderator

    Joined:
    Feb 8, 2011
    Messages:
    7,775
    Location:
    TMR HQ Lichfield
    Car:
    Alien Green 200
    Thanks mate. Yeah fingers crossed for good numbers mark!

    Lol! Thanks mate.

    They're there to allow flexibility and for thermal expansion mate.
