I hate wiring diagrams = help someone please

[geordieracer]

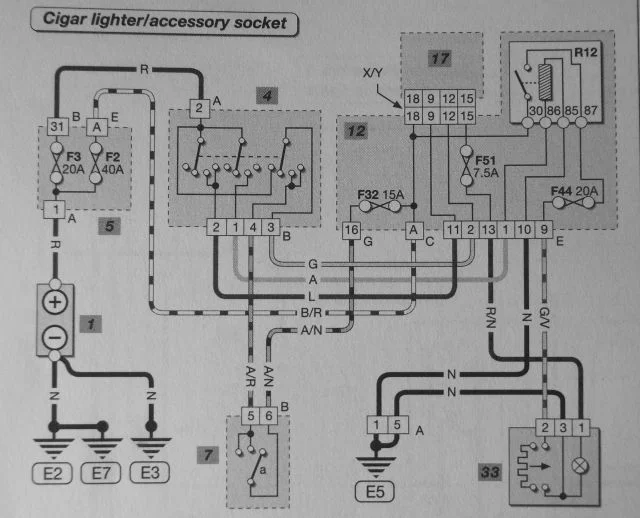

ON the below diagram, which of the three wires going into the cigarette lighter (33 bottom right) is the ignition live

cig1

Click on image to view larger image

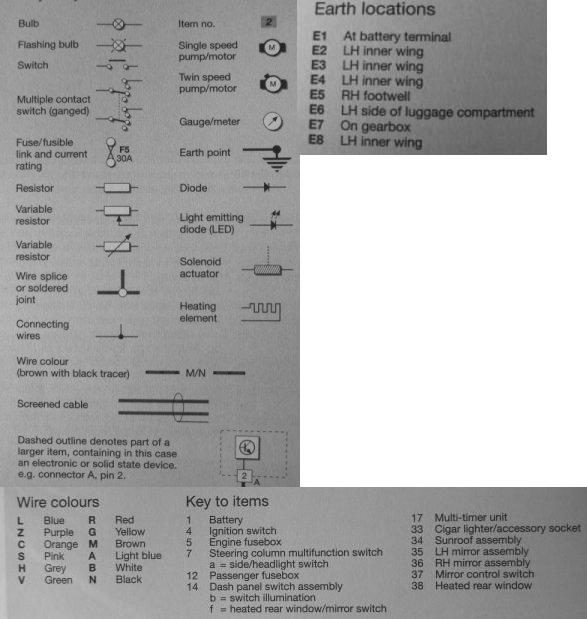

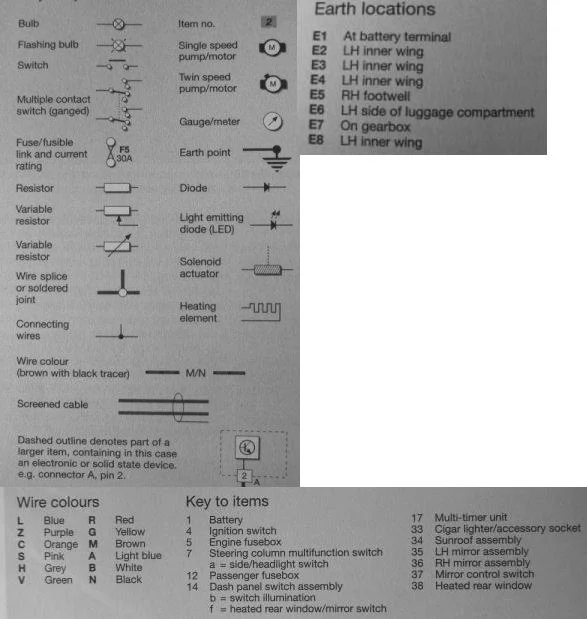

Key


I have figured out that the black wire (3) is the earth, and I think the Green/yellow is the live, as the red black goes to a symbol for a lamp, which i presumed to be the ring that lights up round the ciagrette lighter.

Can anyone confirm which is the switched live going to the cigarette lighter?
​



[k1ano]

You are correct the G/V (yellow/green) is switched live on a 20A fuse



[geordieracer]

Thnaks for the rapid reply!

And the Red Black is also switched and is for the lamp? with a 7.5 amp fuse?

And so for a switched ignition live take off lead to a stereo, i would use the green/yellow?
